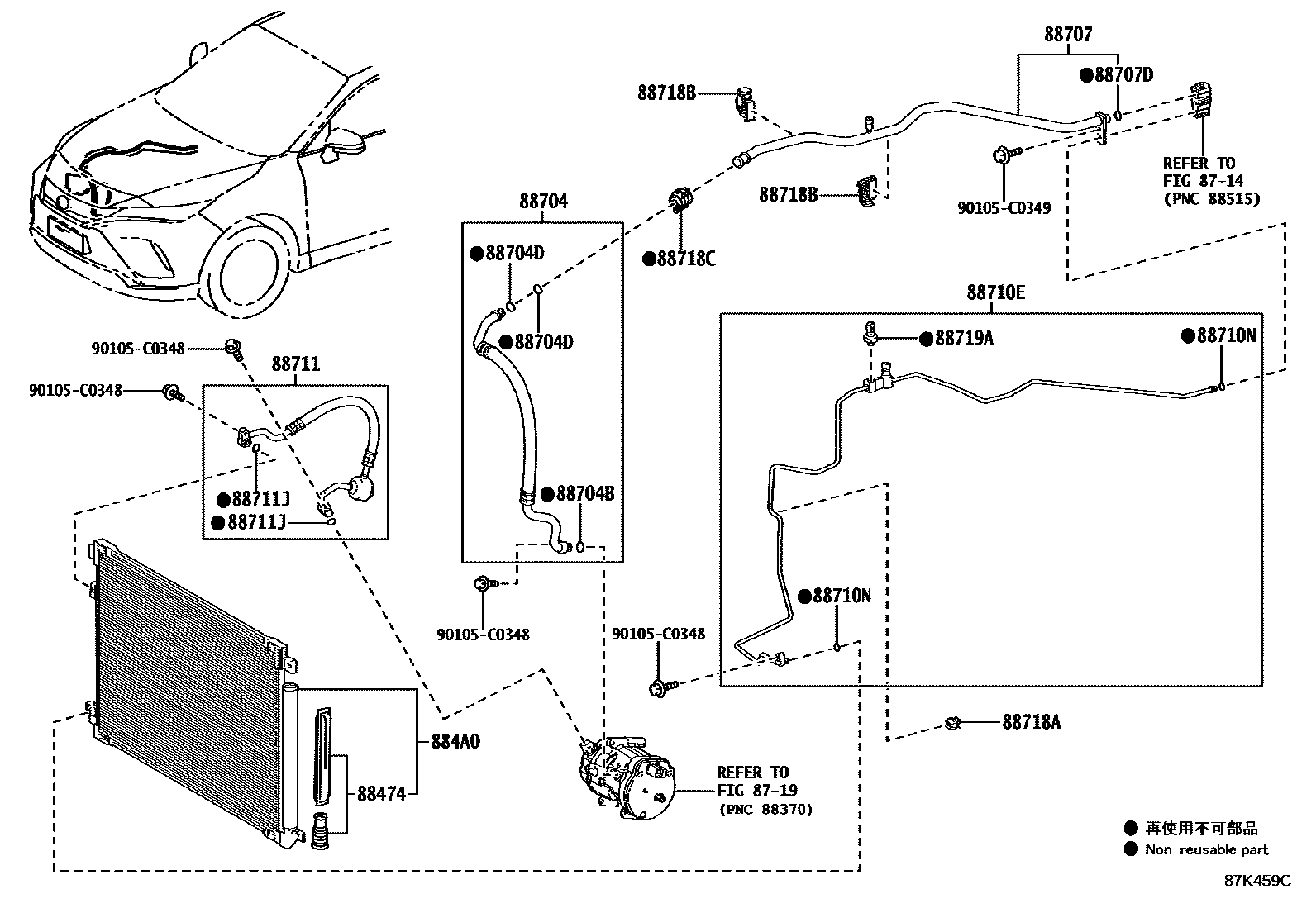

Toyota HARRIER/HEV (CHINA) — HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88474DRYER, COOLER
884A0CONDENSER ASSY, COOLER
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
ID=13.4,OD=18.2
88704DRING, O, NO.2 (FOR SUCTION HOSE)
ID=14,OD=17.56
ID=14,OD=17.56
88707PIPE SUB-ASSY, SUCTION
88707DRING, O(FOR SUCTION TUBE)
ID=13.4,OD=18.2
ID=13.4,OD=18.2
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
ID=6.7,OD=10.3
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711JRING, O, NO.1(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
ID=10.8,OD=15.6
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718CCLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88719ASENSOR, AIR CONDITIONER PRESSURE
90105C0348
main90105-C0348
90105C0349
main90105-C0349
19 parts on this diagram · 2 diagrams in section
