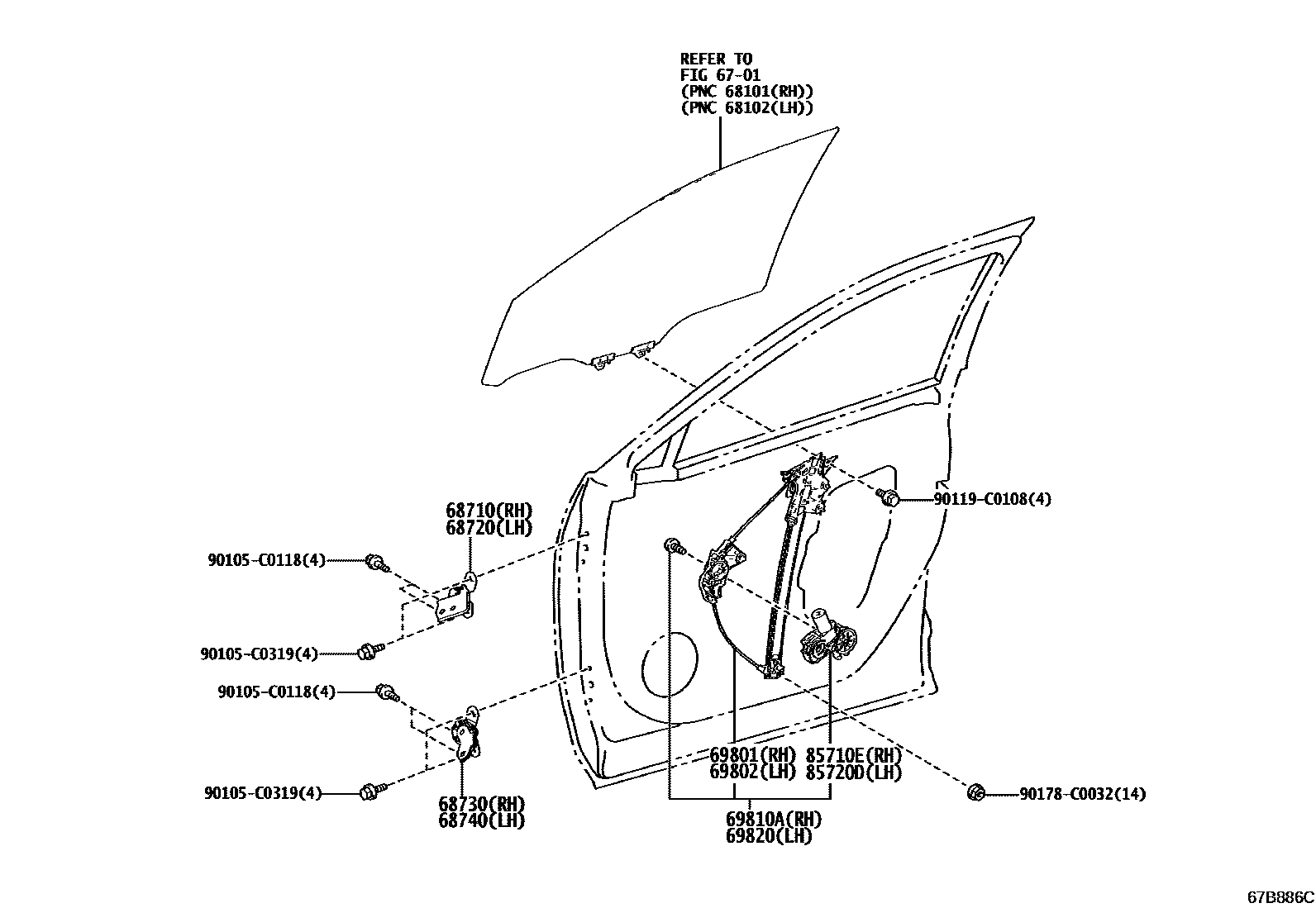

Toyota HARRIER/HEV (CHINA) — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02031iAXUH85..M;MXUA80..S202111-202408

main68710-02031iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02031iAXUH85..M;MXUA80..S202111-202408

main68720-02031iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02061iAXUH85..M;MXUA80..S202111-202408

main68730-02061iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02061iAXUH85..M;MXUA80..S202111-202408

main68740-02061iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0E160iAXUH8#,MXUA80202111-202312

sub69801-0E161

main69801-0E161iAXUH85..M;MXUA80..S202401-202408

main69801-0E161iAXUH85..G,S;AXUH80,MXUA80..G,M,X202401

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0E160iAXUH8#,MXUA80202111-202312

sub69802-0E161

main69802-0E161iAXUH85..M;MXUA80..S202401-202408

main69802-0E161iAXUH85..G,S;AXUH80,MXUA80..G,M,X202401

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-0E110iAXUH8#,MXUA80202111-202312

sub69810-0E111

main69810-0E111iAXUH85..M;MXUA80..S202401-202408

main69810-0E111iAXUH85..G,S;AXUH80,MXUA80..G,M,X202401

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-0E120iAXUH8#,MXUA80202111-202312

sub69820-0E121

main69820-0E121iAXUH85..M;MXUA80..S202401-202408

main69820-0E121iAXUH85..G,S;AXUH80,MXUA80..G,M,X202401

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0E150iAXUH85..M;MXUA80..S202111-202408

main85710-0E150iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0E170iAXUH85..M;MXUA80..S202111-202408

main85720-0E170iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

90105C0118

main90105-C0118

90105C0319

main90105-C0319

90119C0108

main90119-C0108

90178C0032

main90178-C0032

15 parts on this diagram · 1 diagram in section
