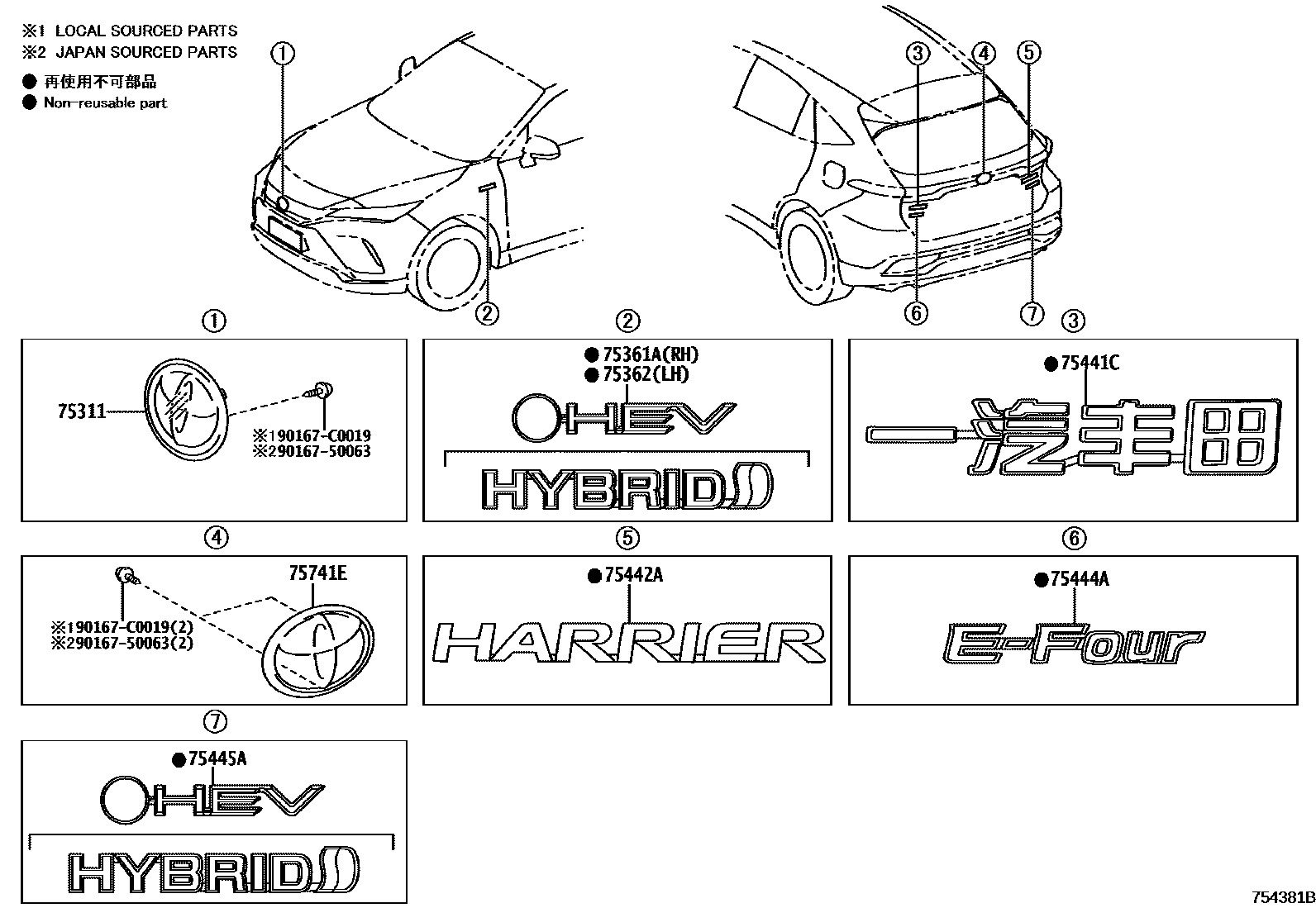

Toyota HARRIER/HEV (CHINA) — EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-02120iMXUA80..S202111-202408

main53141-02120iMXUA80..G,M,X202111

main53141-02120iAXUH80;AXUH85..G,S202409

main53141-02130iAXUH85..M202111-202408

main53141-02130iAXUH80;AXUH85..G,S202111-202409

75361APLATE, FRONT FENDER NAME, NO.1

main75361-0E010iAXUH80;AXUH85..G,S202111-202409

HYBRID

main75361-0E010iAXUH85..M202111-202408

HYBRID

main75440-0E040iAXUH80;AXUH85..G,S202409

HEV

75362PLATE, FRONT FENDER NAME, NO.2

main75362-0E010iAXUH85..M202111-202408

HYBRID

main75362-0E010iAXUH80;AXUH85..G,S202111-202409

HYBRID

main75440-0E040iAXUH80;AXUH85..G,S202409

HEV

75441CPLATE, BACK DOOR NAME

main75441-0E100iAXUH8#,MXUA80202111-202303

sub75441-0E101

main75441-0E101iAXUH85..G,S;AXUH80,MXUA80..G,M,X202304

main75441-0E101iAXUH85..M;MXUA80..S202304-202408

75442APLATE, BACK DOOR NAME, NO.2

main75442-0E150iAXUH85..M;MXUA80..S202111-202408

HARRIER

main75442-0E150iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

HARRIER

75444APLATE, BACK DOOR NAME, NO.4

main75444-0E220iAXUH85..M202111-202408

E-FOUR

main75444-0E220iAXUH85..G,S202111

E-FOUR

75445APLATE, BACK DOOR NAME, NO.5

main75440-0E090iAXUH80;AXUH85..G,S202409

HEV

main75445-0E200iAXUH80;AXUH85..G,S202111-202409

HYBRID

main75445-0E200iAXUH85..M202111-202408

HYBRID

75741EEMBLEM, SYMBOL

main75403-0E060iMXUA80..G,M,X202111

main75403-0E060iAXUH80;AXUH85..G,S202409

main75403-0E060iMXUA80..S202111-202408

main75403-0E070iAXUH85..M202111-202408

main75403-0E070iAXUH80;AXUH85..G,S202111-202409

9016750063

main90167-50063¥60

90167C0019

main90167-C0019

10 parts on this diagram · 1 diagram in section
