Toyota HARRIER/HEV (CHINA) — CONSOLE BOX & BRACKET

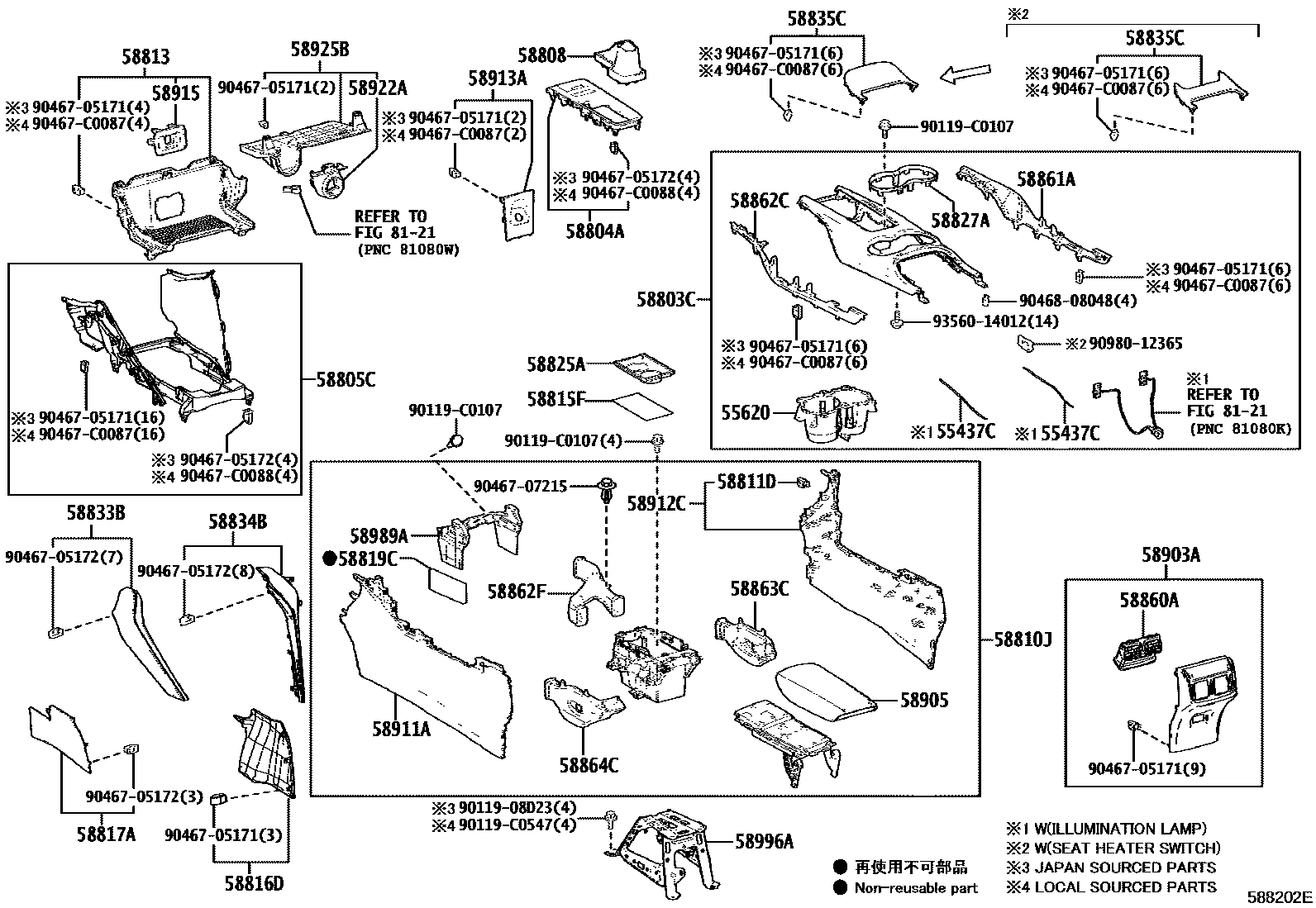

Parts diagram
55437CRETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1
main55437-0E220i202111-202408
55620HOLDER ASSY, INSTRUMENT PANEL CUP
main55620-0E130i202111-202408
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
main58803-0E030-C0i202111
BLACK,TRIM2#
main58803-0E040-B0i202111-202408
MEDIUM GRAY,TRIM1#
main58803-0E040-C0i202111-202408
BLACK,TRIM2#
main58803-0E040-E0i202111-202408
DARK CHESTNUT,TRIM4#
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-0E730i202111
main58804-0E760i202111-202408
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
main58805-0E070-A0i202111-202408
WHITE WOOD,TRIM1#
main58805-0E070-B0i202111-202408
GRAY WOOD,TRIM4#
main58805-0E070-B2i202111
WARM SILVER,TRIM2#
main58805-0E070-C0i202111-202408
GEOMETRIC BLACK,TRIM2#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-0E120-C0i202111-202408
BLACK,TRIM1#,2#,4#
main58808-0E120-C0i202111
BLACK,TRIM1#,2#
58810JBOX ASSY, CONSOLE
main58810-0E560-C0i202111-202305
BLACK,TRIM2#
sub58810-0E561
main58810-0E560-C0i202111-202305
LUXURY PACKAGE,BLACK,TRIM2#
sub58810-0E561
main58810-0E560-C1i202111-202305
BLACK,TRIM1#
sub58810-0E561
main58810-0E560-C1i202111-202305
LUXURY PACKAGE,BLACK,TRIM1#
sub58810-0E561
main58810-0E560-C2i202111-202305
BLACK,TRIM4#
sub58810-0E561
main58810-0E560-C2i202111-202305
LUXURY PACKAGE,BLACK,TRIM4#
sub58810-0E561
main58810-0E561i202305-202408
main58810-0E561-C0i202305-202408
BLACK,TRIM2#
main58810-0E561-C1i202305-202408
BLACK,TRIM1#
main58810-0E561-C2i202305-202408
BLACK,TRIM4#
58811DCLIP(FOR CONSOLE BOX)
main90467-08227i¥80202111-202408
58813BOX, CONSOLE, UPPER
main58813-0E060i202111-202304
WIRELESS CHARGER-WITH
main58813-0E080i202111
WIRELESS CHARGER-WITH
main58813-0E080i202111-202408
58815FCARPET, CONSOLE BOX
main58815-0E020i202111-202408
58816DINSERT, CONSOLE BOX, FRONT NO.1
main58816-0R060-C0i202111-202408
BLACK,TRIM1#,2#,4#
main58816-0R060-C0i202111
BLACK,TRIM1#,2#
58817AINSERT, CONSOLE BOX, FRONT NO.2
main58817-0R061-C0i202111
BLACK,TRIM2#
main58817-0R061-C0i202111-202408
BLACK,TRIM1#,2#,4#
58819CFILLER, CONSOLE BOX, FRONT
main58819-0E010i202111-202408
58825APOCKET, CONSOLE BOX
main58825-0E110i202111-202408
58827AGARNISH, CONSOLE BOX POCKET
main58827-0E020i202111-202408
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
main58833-0E210-B0i202111-202408
MEDIUM GRAY,TRIM1#
main58833-0E210-C0i202111-202408
BLACK,TRIM2#
main58833-0E210-E0i202111-202408
DARK CHESTNUT,TRIM4#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
main58834-0E210-B0i202111-202408
MEDIUM GRAY,TRIM1#
main58834-0E210-C0i202111-202408
BLACK,TRIM2#
main58834-0E210-E0i202111-202408
DARK CHESTNUT,TRIM4#
58835CORNAMENT, CONSOLE BOX
main58835-0E140-B1i202111
WARM SILVER,TRIM2#
main58835-0E150-A0i202111-202408
WHITE WOOD,TRIM1#
main58835-0E150-B0i202111-202408
GRAY WOOD,TRIM4#
main58835-0E150-C0i202111-202408
GEOMETRIC BLACK,TRIM2#
58860AREGISTER ASSY, CONSOLE BOX
main58860-0R020-C0i202111-202408
BLACK,TRIM1#,2#,4#
main58860-0R020-C0i202111
BLACK,TRIM2#
58861ASUPPORT, CONSOLE BOX, NO.1
main58865-0E040-B0i202111-202408
MD. GRAY,TRIM1#
main58865-0E040-C0i202111-202408
BLACK,TRIM2#
main58865-0E040-E0i202111-202408
DARK CHESTNUT,TRIM4#
58862CSUPPORT, CONSOLE BOX, NO.2
main58866-0E040-B0i202111-202408
MD. GRAY,TRIM1#
main58866-0E040-C0i202111-202408
BLACK,TRIM2#
main58866-0E040-E0i202111-202408
DARK CHESTNUT,TRIM4#
58862FDUCT, CONSOLE BOX, NO.2
main58862-0E080i202111-202408
58863CDUCT, CONSOLE BOX, NO.3
main58863-0E060i202111-202408
58864CDUCT, CONSOLE BOX, NO.4
main58864-0E030i202111-202408
58903APANEL SUB-ASSY, CONSOLE REAR END
main58903-0E120-C0i202111
BLACK,TRIM1#,2#
main58903-0E200-C0i202111-202408
BLACK,TRIM1#,2#,4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-0E110i202305-202408
main58905-0E110-B0i202111-202408
MEDIUM GRAY,TRIM1#
main58905-0E110-C0i202111-202408
BLACK,TRIM2#
main58905-0E110-E0i202111-202408
DARK CHESTNUT,TRIM4#
58911APANEL, BOX SIDE, NO.1
main58911-0E140i202305-202408
main58911-0E140-C0i202111-202305
BLACK,TRIM1#,2#
main58911-0E140-C0i202111-202408
BLACK,TRIM1#,2#,4#
main58911-0E140-C0i202305
BLACK,TRIM2#
58912CPANEL, BOX SIDE, NO.2
main58912-0E150i202305-202408
main58912-0E150-C0i202111-202305
BLACK,TRIM1#,2#
main58912-0E150-C0i202111-202408
BLACK,TRIM1#,2#,4#
main58912-0E150-C0i202305
BLACK,TRIM2#
58913APANEL, BOX, NO.3
main58913-0E090i202111-202408
58915PANEL, BOX BOTTOM
main58915-0E050i202111-202304
WIRELESS CHARGER-WITH
main58915-0E070i202111-202408
main58915-0E070i202111
WIRELESS CHARGER-WITH
58922APLATE, BOX, UPPER NO.2
main58922-0E120i202111-202408
58925BINSULATOR, CONSOLE BOX, UPPER
main58925-0E020i202111-202408
58989ARETAINER, CONSOLE BOX
main58985-0E030i202111-202408
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-0R080i202111-202408
8121
9011908D23
main90119-08D23¥60
90119C0107
main90119-C0107
90119C0547
main90119-C0547
9046705171
main90467-05171¥60
9046705172
main90467-05172¥60
9046707215
main90467-07215¥80
90467C0087
main90467-C0087
90467C0088
main90467-C0088
9046808048
main90468-08048¥60
9098012365
main90980-12365¥220
9356014012
main93560-14012¥70

46 parts on this diagram · 1 diagram in section
