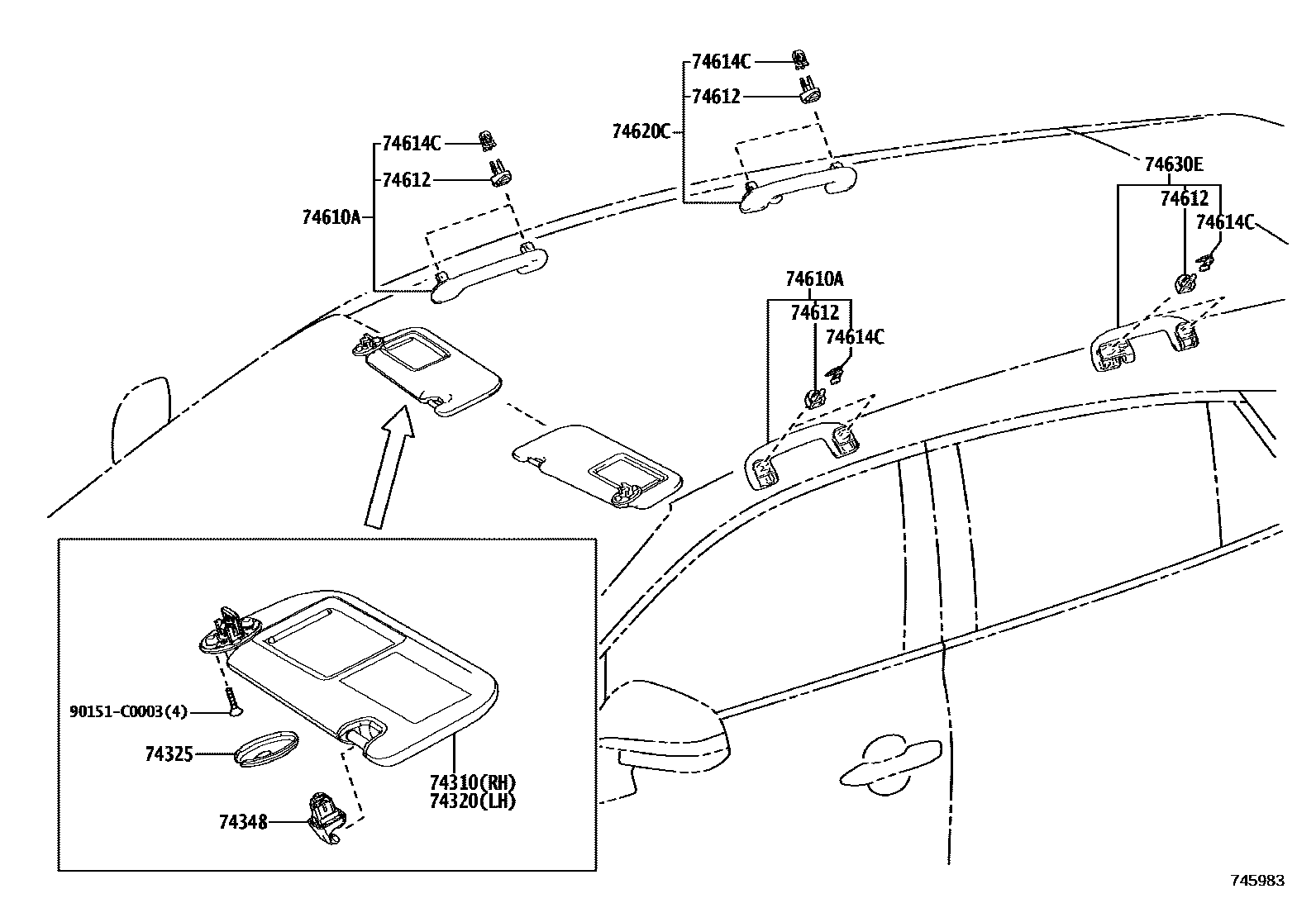

Toyota HARRIER/HEV (CHINA) — ARMREST & VISOR

74310VISOR ASSY, RH

main74310-0E210-B0iAXUH85..M;MXUA80..S202111-202408

LT.GRAY,TRIM1#,2#,4#

main74310-0E210-B0iAXUH85..G,S;AXUH80,MXUA80..G,M202111

LT.GRAY,TRIM1#,2#

74320VISOR ASSY, LH

main74320-0E210-B0iAXUH85..G,S;AXUH80,MXUA80..G,M202111-202408

LT.GRAY,TRIM1#,2#,4#

main74320-0E210-B0iMXUA80..X202111

LT.GRAY,TRIM1#,2#

74325COVER, VISOR BRACKET

main74317-0N020-B2iAXUH85..M;MXUA80..S202111-202408

LT.GRAY,TRIM1#,2#,4#

main74317-0N020-B2iMXUA80..X202111

LT.GRAY,TRIM1#,2#

74348HOLDER, VISOR

main74348-07010iMXUA80..S202306-202408

(J)

main74348-07010-B1iAXUH85..G,S;AXUH80,MXUA80..G,M202306

LT.GRAY,TRIM2#,(J)

main74348-07010-B1iMXUA80..X202306-202408

LT.GRAY,TRIM1#,2#,4#,(J)

main74348-47010-B3iMXUA80..X202306

LT.GRAY,TRIM1#,2#,(L)

main74348-47010-B3iMXUA80..X202111-202306

LT.GRAY,TRIM1#,2#

main74348-47010-B3iMXUA80..X202111-202306

LT.GRAY,TRIM1#,2#,4#

main74348-47010-B3iAXUH85..M;MXUA80..S202306-202408

LT.GRAY,TRIM1#,2#,4#,(L)

74610AGRIP SUB-ASSY, ASSIST

main74610-F4010-B1iAXUH85..M;MXUA80..S202111-202408

LT.GRAY,TRIM1#,2#,4#

main74610-F4010-B1iMXUA80..X202111

LT.GRAY,TRIM1#,2#

74612COVER, ASSIST GRIP

main74612-F4010-B1iAXUH85..M;MXUA80..S202111-202408

LT.GRAY,TRIM1#,2#,4#

main74612-F4010-B1iMXUA80..X202111

LT.GRAY,TRIM1#,2#

74614CPLATE, ASSIST GRIP LOCK

main74614-F4010iAXUH85..M;MXUA80..S202111-202408

74620CGRIP ASSY, ASSIST, REAR RH

main74610-07020-B1iAXUH85..M;MXUA80..S202111-202408

LT.GRAY,TRIM1#,2#,4#

main74610-07020-B1iMXUA80..X202111

LT.GRAY,TRIM1#,2#

74630EGRIP ASSY, ASSIST, REAR LH

main74610-07030-B1iAXUH85..M;MXUA80..S202111-202408

LT.GRAY,TRIM1#,2#,4#

main74610-07030-B1iMXUA80..X202111

LT.GRAY,TRIM1#,2#

90151C0003

main90151-C0003

10 parts on this diagram · 1 diagram in section
