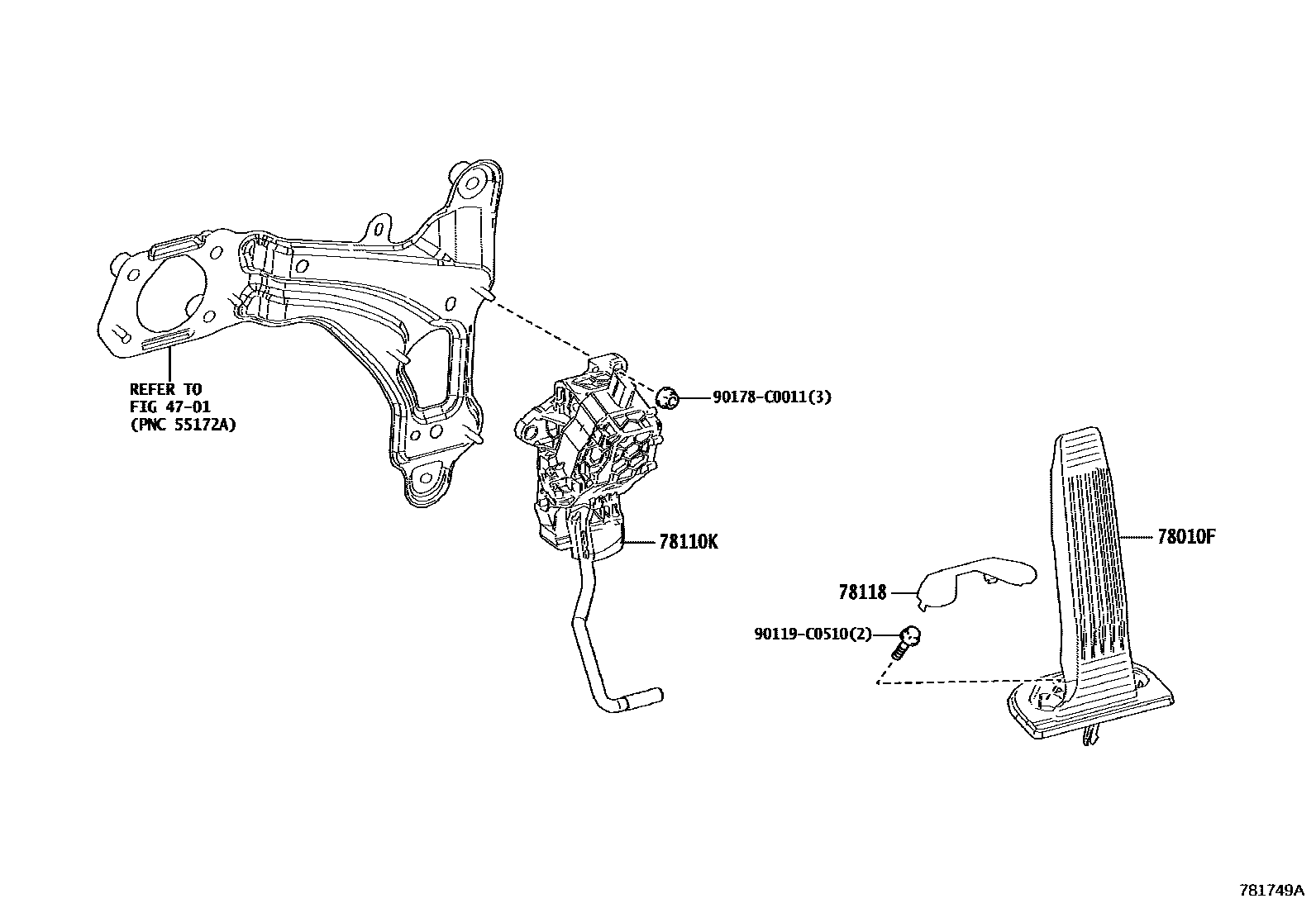

Toyota HARRIER/HEV (CHINA) — ACCELERATOR LINK

4701

78010FPEDAL ASSY, ACCELERATOR

main78101-07021iAXUH85..M;MXUA80..S202111-202408

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-06171iAXUH85..M;MXUA80..S202111-202408

78118PAD, ACCELERATOR PEDAL

main78117-07010iAXUH85..M;MXUA80..S202111-202408

90119C0510

main90119-C0510

90178C0011

main90178-C0011

6 parts on this diagram · 1 diagram in section
