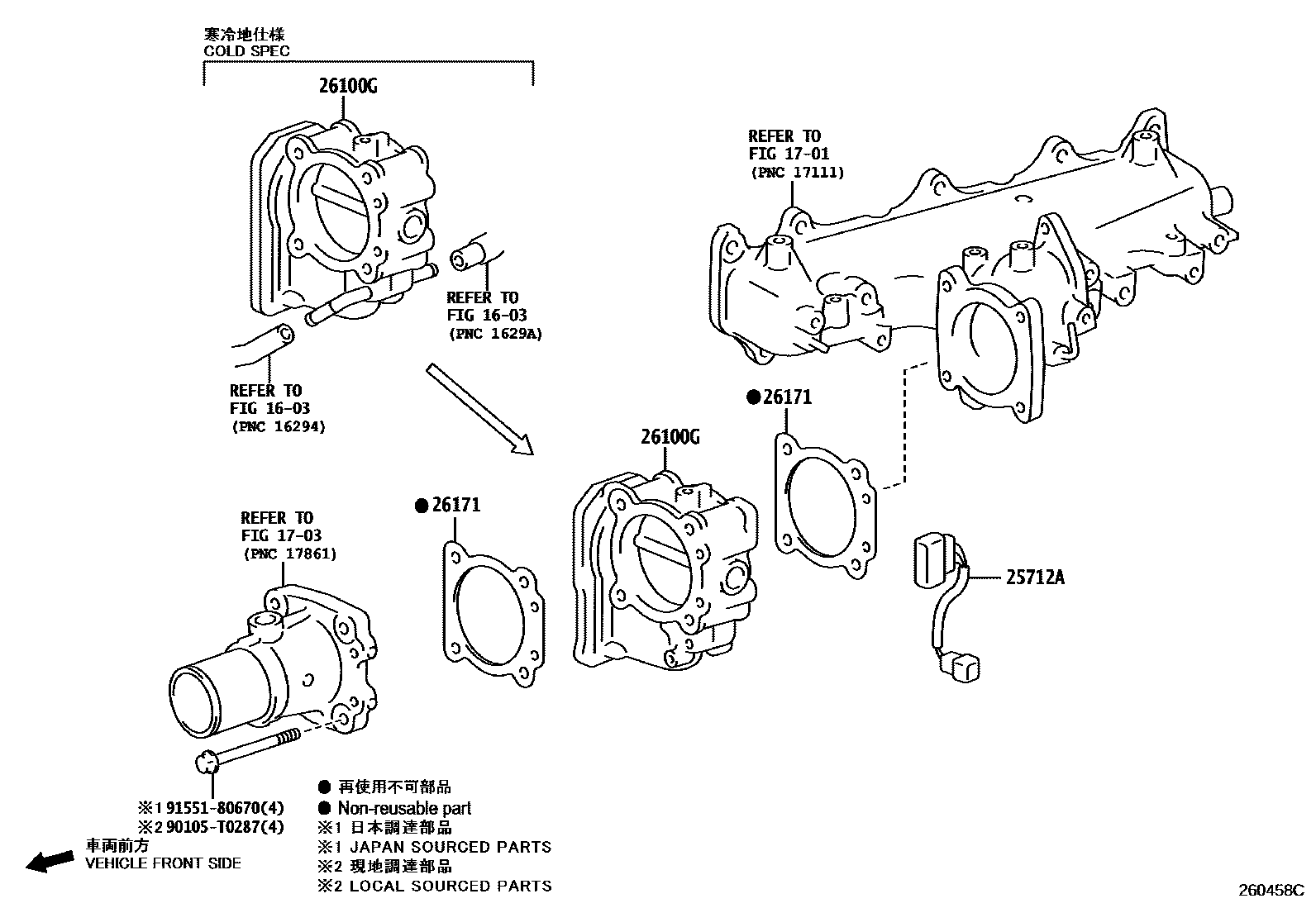

Toyota GRNVA/HIACE/MJSTY — VENTURI

0001 1 0002 1W(INTERCOOLER (WATER COOLED T

1603

1701

1703

25712AWIRE, EMISSION CONTROL VALVE

main25712-0E010i1GDFTV..GDH320,322,328..AGT,BZ202401

main25712-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main25712-11010i1GDFTV..GDH322..LHD..6FC..GEN¥900201902-202107

(J)

main25712-11010i1GDFTV..GDH322..LHD..6FC..GEN¥900202006-202107

ARGENTINA SPEC

main25712-11010i1GDFTV..GDH322..Q..GEN¥900202006-202107

HONG KONG SPEC

main25712-11010i1GDFTV..GDH322..Q..GEN¥900202006-202107

TAIWAN SPEC

main25712-11010i1GDFTV..GDH321..GEN¥900201903-202505

26100GBODY ASSY, DIESEL THROTTLE

main26100-0E050i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN¥28,700201906

(L)

main26100-0E050i1GDFTV..GDH320,322,328..AGT,BZ¥28,700202401

main26100-11030i1GDFTV..GDH306..LHD..G¥25,300201903-202505

main26100-11040i1GDFTV..GDH322..RHD..(P,Q)..GEN¥28,700201902-202506

(J)

26171GASKET, VENTURI

main26171-0E030i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main26171-0E030i1GDFTV..GDH320,322,328..AGT,BZ202401

main26171-11020i1GDFTV..GDH304,306..RHD;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300,301,303,32#..D,G,H,J,N¥410201902-202107

(J)

main26171-11020i1GDFTV..GDH322..Q..GEN¥410202006-202107

ARGENTINA SPEC

main26171-11020i1GDFTV..GDH322..Q..GEN¥410202006-202107

TAIWAN SPEC

main26171-11020i1GDFTV..GDH322..Q..GEN¥410202006-202107

HONG KONG SPEC

main26171-11020i1GDFTV..GDH321..GEN¥410201903-202505

90105T0287

main90105-T0287

9155180670

main91551-80670¥80

8 parts on this diagram · 2 diagrams in section
