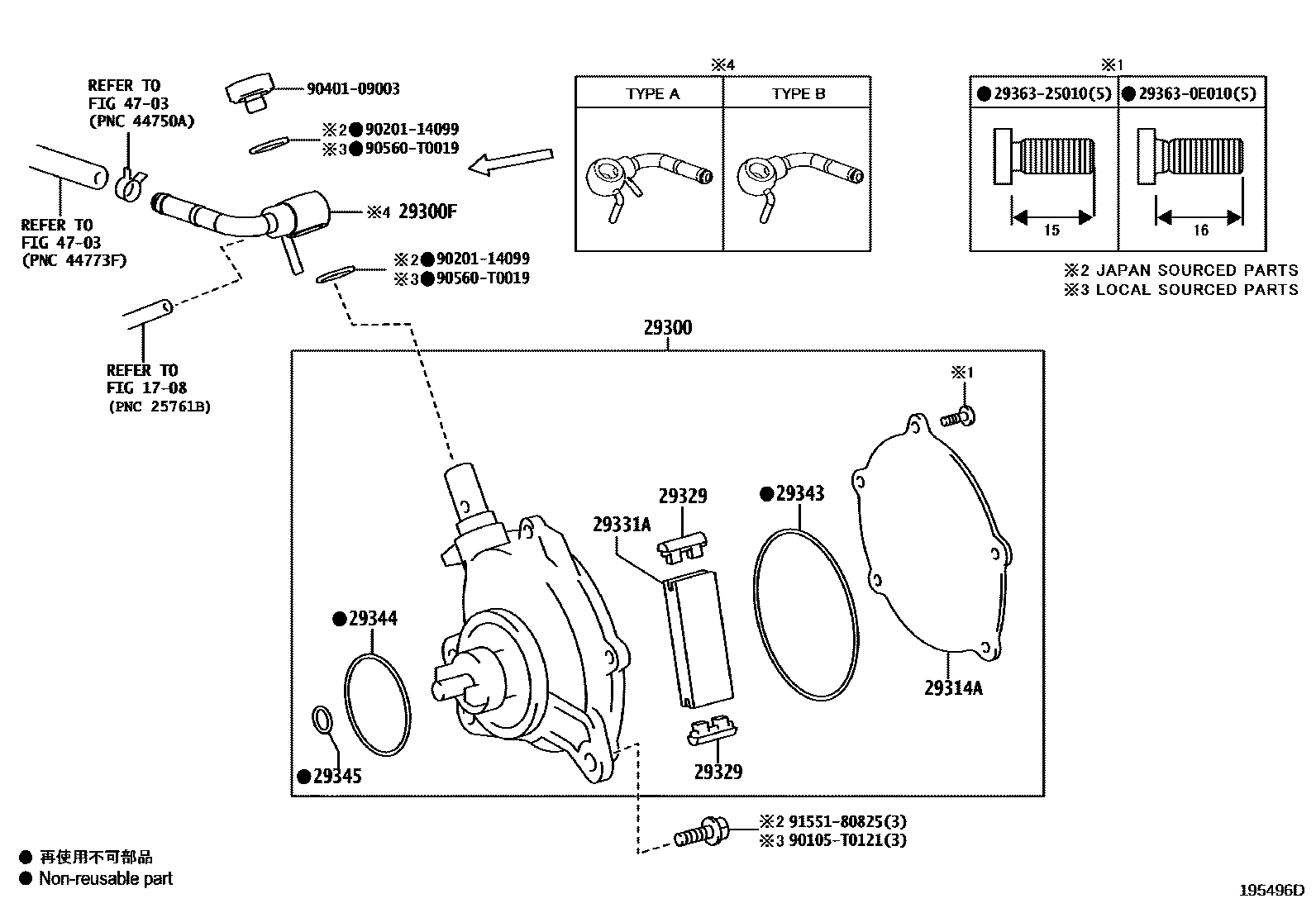

Toyota GRNVA/HIACE/MJSTY — VACUUM PUMP

0001 1 0002 1

1708

29300PUMP ASSY, VACUUM

main29300-08010i1GDFTV..GDH320,322,328..AGT,BZ,TH202401

(L)

main29300-0E011i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN¥19,000201906-202312

(L)

sub29300-08010

main29300-11021i1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH30#,32#..D,G,H,J,N;1GDFTV..GDH322..LHD..(P,Q)..GEN¥17,300201902-202307

(J)

main29300-31031i7GRFKS..GRH30#,32#201902

main29300-35010i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D¥17,300202308-202505

(J)

29300FUNION

main90405-09196i1GDFTV..GDH301..LHD..SG..6F..N;1GDFTV..GDH300,320..LHD..SP..6F..GEN¥360201902-202310

ARGENTINA SPEC,TYPE A:REFER ILLUST.

main90405-09196i1GDFTV..GDH301..LHD..SG..6FC..D;1GDFTV..GDH322..LHD..GSOB..6FC..D¥360201902-202505

TYPE A:REFER ILLUST.

main90405-09196i1GDFTV..GDH301..LHD..SG..6FC..D;1GDFTV..GDH322..LHD..GSOB..6FC..D¥360201902-202310

PERU SPEC,TYPE A:REFER ILLUST.

main90405-09196i1GDFTV..GDH301..LHD..SG..6FC..D;1GDFTV..GDH322..LHD..GSOB..6FC..D¥360202405

EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.

main90405-09196i1GDFTV..GDH301..LHD..SG..6FC..D;1GDFTV..GDH322..LHD..GSOB..6FC..D¥360202208

EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.

main90405-09196i1GDFTV..GDH301..LHD..SG..6FC..D;1GDFTV..GDH322..LHD..GSOB..6FC..D¥360202405

EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681,TYPE A:REFER ILLUST.

main90405-09196i1GDFTV..GDH301..LHD..SG..6FC..D;1GDFTV..GDH322..LHD..GSOB..6FC..D¥360202208

EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699,TYPE A:REFER ILLUST.

main90405-09196i1GDFTV..GDH301..LHD..SG..6FC..D;1GDFTV..GDH322..LHD..GSOB..6FC..D¥360202405

EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681,TYPE A:REFER ILLUST.

main90405-09196i1GDFTV..GDH301..LHD..SG..6FC..D;1GDFTV..GDH322..LHD..GSOB..6FC..D¥360202405

EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.

main90405-09196i1GDFTV..GDH301..LHD..SG..6FC..D;1GDFTV..GDH322..LHD..GSOB..6FC..D¥360202405

EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.

main90405-09196i1GDFTV..GDH301..LHD..SG..6FC..D;1GDFTV..GDH322..LHD..GSOB..6FC..D¥360202405

EXHAUST EMISSION CONTROL-DIESEL EURO3/4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.

main90405-09196i1GDFTV..GDH321..GEN¥360201902-202310

CHILE SPEC,TYPE A:REFER ILLUST.

main90405-09196i1GDFTV..GDH321..GEN¥360201902-202310

UNITED ARAB EMIRATES SPEC,TYPE A:REFER ILLUST.

main90405-09196i1GDFTV..GDH322..AGT;1GDFTV..GDH306..LHD..J;1GDFTV..GDH303..LHD..H;1GDFTV..GDH306,321..RHD;1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH301,322..LHD..GSOB..6FC..N;1GDF¥360201902

COSTA RICA SPEC,TYPE A:REFER ILLUST.

main90405-09196i1GDFTV..GDH322..AGT;1GDFTV..GDH306..LHD..J;1GDFTV..GDH303..LHD..H;1GDFTV..GDH306,321..RHD;1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH301,322..LHD..GSOB..6FC..N;1GDF¥360201902

TAIWAN SPEC,TYPE A:REFER ILLUST.

main90405-09196i1GDFTV..GDH322..AGT;1GDFTV..GDH306..LHD..J;1GDFTV..GDH303..LHD..H;1GDFTV..GDH306,321..RHD;1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH301,322..LHD..GSOB..6FC..N;1GDF¥360201902

PHILIPPINES SPEC,TYPE A:REFER ILLUST.

main90405-09196i1GDFTV..GDH322..AGT;1GDFTV..GDH306..LHD..J;1GDFTV..GDH303..LHD..H;1GDFTV..GDH306,321..RHD;1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH301,322..LHD..GSOB..6FC..N;1GDF¥360201902

SRI LANKA SPEC,TYPE A:REFER ILLUST.

main90405-09196i1GDFTV..GDH300..SHP..6FC..GEN;1GDFTV..GDH301..LHD..SG..6FC..N¥360202208

CAMBODIA SPEC,TYPE A:REFER ILLUST.

main90405-09197i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH300..PSOB..6F..GCC201902-202505

TYPE B:REFER ILLUST.

main90405-09197i1GDFTV..GDH304..TH202310-202405

EXHAUST EMISSION CONTROL-LARGE,EURO 3,WITHOUT(ON BOARD DIAGNOSIS),TYPE B:REFER ILLUST.

main90405-09197i1GDFTV..GDH304..TH202310-202405

EXHAUST EMISSION CONTROL-DIESEL EURO0 WITHOUT(ON BOARD DIAGNOSIS),TYPE B:REFER ILLUST.

29314ACOVER, END

main29314-0E010i1GDFTV..GDH322..RHD..P..GEN201902-202401

(L)

main29314-11020i1GDFTV..GDH322..RHD..P..GEN¥1,080201902-202308

(J)

main29314-31010i7GRFKS..GRH30#,32#¥1,690201902

29329CAP, VACUUM PUMP VANE

main29329-0E010i1GDFTV..GDH321..RHD;1GDFTV..GDH30#,320,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH322..(D,N)..(GEN,TH);1GDFTV..GDH322..LHD..(P,Q)..GEN201902-202401

(L)

main29329-37010i1GDFTV..GDH322..RHD..P..GEN¥200201902-202308

(J)

main29329-37010i7GRFKS..GRH30#,32#¥200201902

29331AVANE, VACUUM PUMP

main29331-0E010i1GDFTV..GDH321..GEN201902-202401

(L)

main29331-11020i1GDFTV..GDH322..RHD..P..GEN¥990201902-202308

(J)

main29331-36011i7GRFKS..GRH30#,32#¥890201902

29343RING, O VACUUM PUMP, NO.1

main29343-0E010i1GDFTV..GDH322..RHD..P..GEN201902-202401

(L)

main29343-11020i1GDFTV..GDH322..RHD..P..GEN¥710201902-202308

(J)

main29343-36010i7GRFKS..GRH30#,32#¥160201902

29344RING, O VACUUM PUMP, NO.2

main29344-0E010i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202401

(L)

main29344-22011i1GDFTV..GDH322..RHD..(P,Q)..GEN¥130201902-202308

(J)

main29344-22011i7GRFKS..GRH30#,32#¥130201902

29345RING, O VACUUM PUMP, NO.3

main29345-0E010i1GDFTV..GDH321..RHD;1GDFTV..GDH30#,320,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH322..(D,N)..(GEN,TH);1GDFTV..GDH322..LHD..(P,Q)..GEN201902-202401

(L)

main29345-22011i1GDFTV..GDH322..RHD..(P,Q)..GEN¥130201902-202308

(J)

main29345-22011i7GRFKS..GRH30#,32#¥130201902

4703

293630E010SCREW, HOLLOW VACUUM PUMP

main29363-0E010¥220

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010¥200

90105T0121

main90105-T0121

9020114099

main90201-14099¥230

9040109003

main90401-09003¥160

90560T0019

main90560-T0019

9155180825

main91551-80825¥80

17 parts on this diagram · 2 diagrams in section
