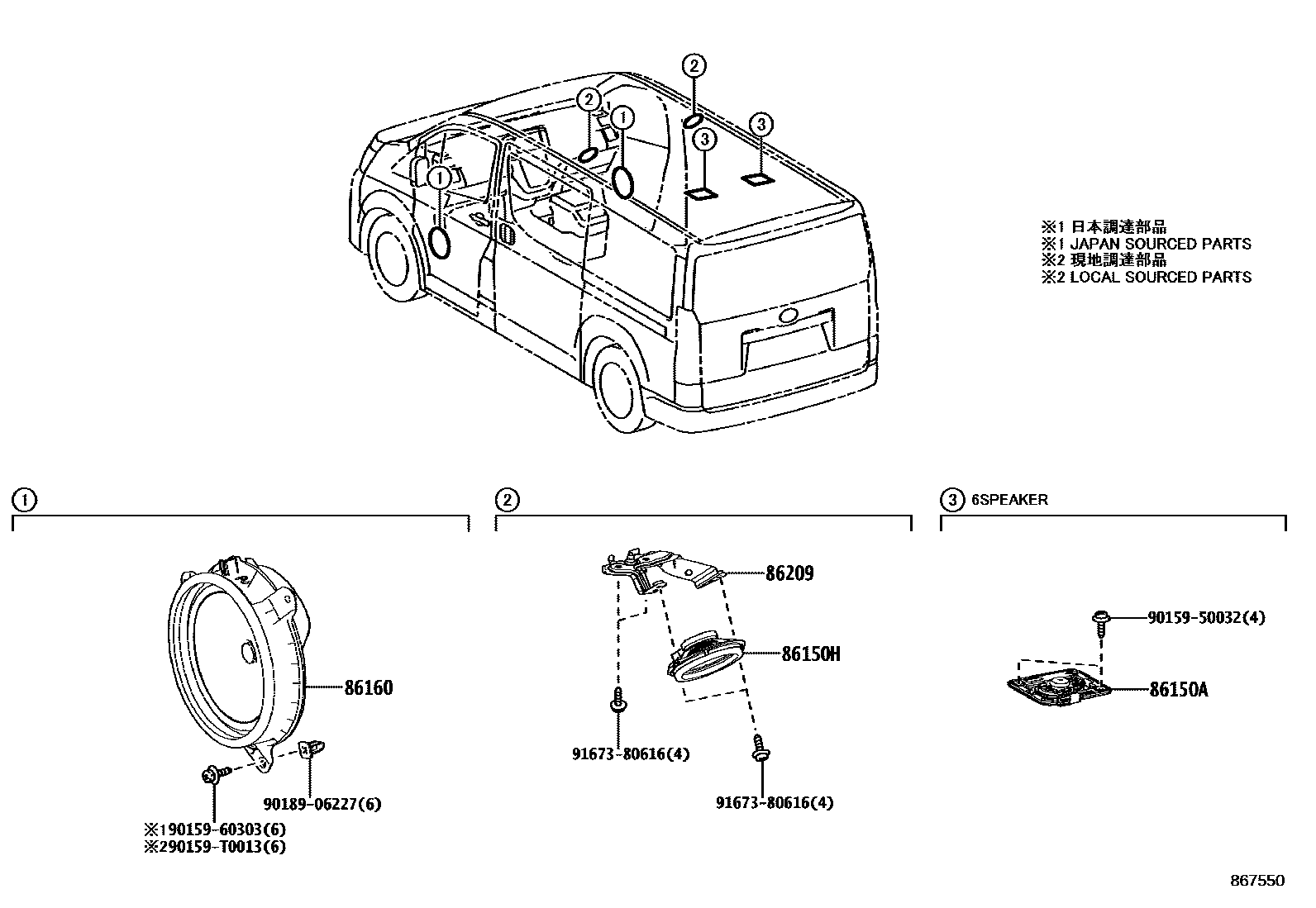

Toyota GRNVA/HIACE/MJSTY — SPEAKER

0001 1 0002 1 0003 1

86150ASPEAKER ASSY, W/BRACKET, NO.2

main86150-26160iGDH306..LHD..G;GDH301..GSOB..6F..N201902-202505

86150HSPEAKER ASSY, W/BRACKET

main86150-26170iGDH322..6F..Q..GEN201902-202505

main86150-26170iGDH321,322..RHD..N;GDH301..GSOB..6FC..N;GDH322..LHD..6FC..(N,Q);GDH322..(D,Q)..(ARL,TH);GDH322..LHD..SG..6F..(N,Q);GDH301,GRH301,322..SG..(N,Q);GDH328,GRH321..(D,N,201902

REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)&SPEAKER-4SPEAKER

main86150-26170iGDH321,322..RHD..N;GDH301..GSOB..6FC..N;GDH322..LHD..6FC..(N,Q);GDH322..(D,Q)..(ARL,TH);GDH322..LHD..SG..6F..(N,Q);GDH301,GRH301,322..SG..(N,Q);GDH328,GRH321..(D,N,201902

SPEAKER-4SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-1A210iGDH322..RHD..(P,Q)..GEN¥6,300201902-202505

86209BRACKET SUB-ASSY, SPEAKER

main86209-26020iGDH301..TH201902

REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)&SPEAKER-4SPEAKER,RH

main86209-26020iGDH301..GSOB..6F..N201902-202505

RH

main86209-26020iGDH301,GRH301..SG..N;GDH301..GSOB..6FC..N201902

SPEAKER-4SPEAKER,RH

main86209-26030iGDH301,GRH301..SG..N;GDH301..GSOB..6FC..N201902

SPEAKER-4SPEAKER,LH

main86209-26030iGDH301..LHD..GSOB..D;GDH301..SG..6F..D..GEN201902-202505

LH

main86209-26030iGDH301..LHD..GSOB..D;GDH301..SG..6F..D..GEN201902

REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)&SPEAKER-4SPEAKER,LH

main86209-26040iGDH328..6F201903

EUROPE N1

main86209-26040iGDH328..6F201903

EUROPE N1&FRONT SEAT-BENCH TYPE&REAR SEAT-WITHOUT

main86209-26040iGDH328..6F201903-202005

REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)&SPEAKER-4SPEAKER

main86209-26040iGDH328..6F201903

SPEAKER-4SPEAKER

main86209-26040iGDH321..N..GEN201903-202505

9015950032

main90159-50032¥170

9015960303

main90159-60303¥70

90159T0013

main90159-T0013

9018906227

main90189-06227¥70

9167380616

main91673-80616¥60

9 parts on this diagram · 3 diagrams in section
