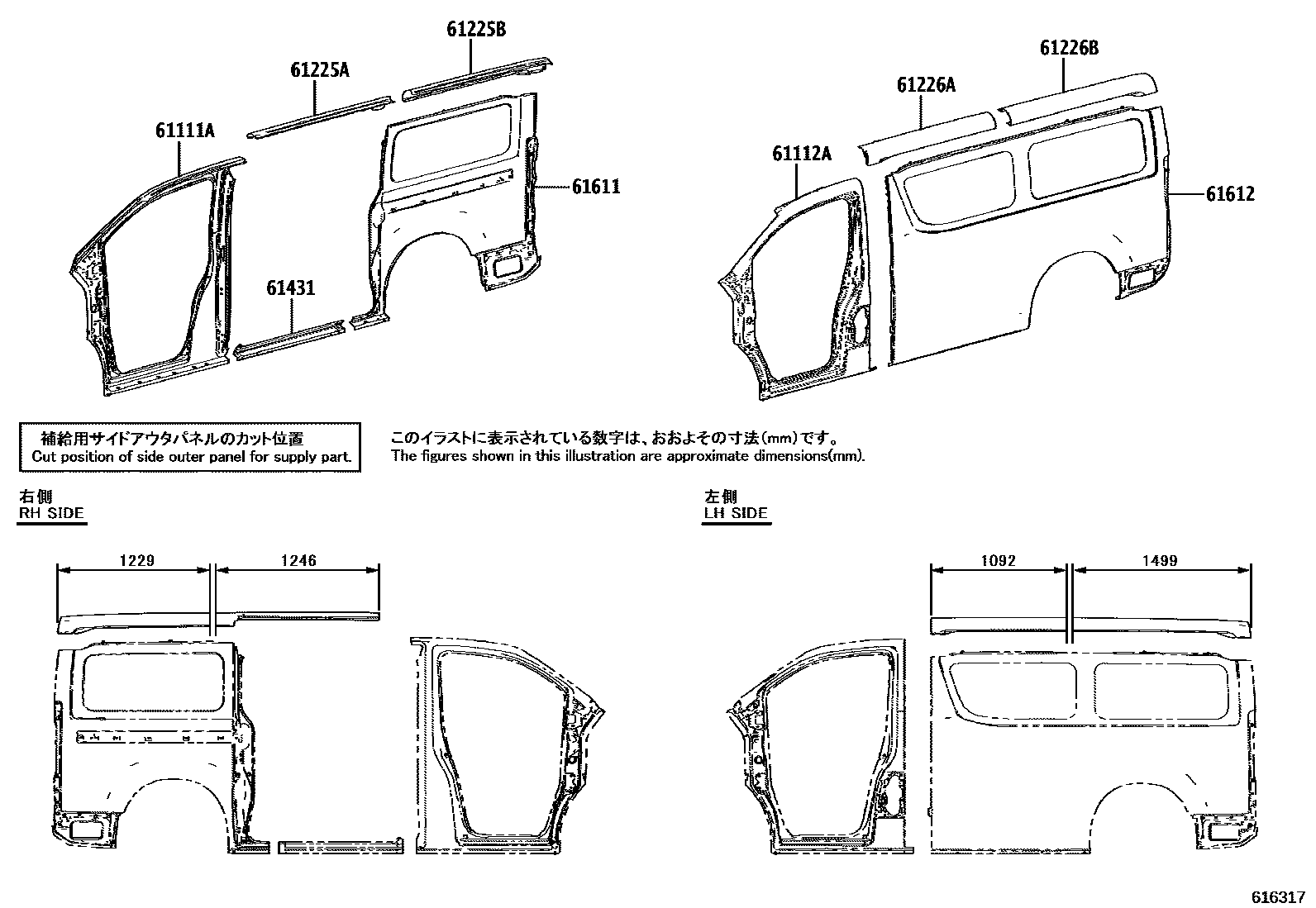

Toyota GRNVA/HIACE/MJSTY — SIDE MEMBER

0001 1OUTER PANEL 0002 1OUTER PANEL 0003 1OUTER PANEL 0004 1OUTER PANEL 0005 1OUTER PANEL 0006 1OUTER PANEL 0008 1OUTER PANEL 0009 1OUTER PANEL 0010 1OUTER PANEL 0011 1INNER PANEL, RH 0012 1INNER PANEL, LH 0013 1INNER PANEL, RH 0014 1INNER PANEL, LH 0015 1INNER PANEL, RH 0016 1INNER PANEL, LH 0017 1INNER PANEL, RH 0018 1INNER PANEL, LH 0019 1INNER PANEL, RH 0020 1INNER PANEL, LH 0021 1INNER PANEL, RH 0022 1INNER PANEL, LH 0023 1INNER PANEL, RH 0024 1INNER PANEL, LH 0025 1INNER PANEL, RH 0026 1INNER PANEL, LH 0027 1INNER PANEL, RH 0028 1INNER PANEL, LH 0029 1INNER PANEL, RH 0030 1INNER PANEL, LH 0031 1INNER PANEL, RH 0032 1INNER PANEL, LH 0033 1INNER PANEL, RH 0034 1INNER PANEL, LH 0035 1INNER PANEL, RH 0036 1INNER PANEL, LH 0037 1INNER PANEL, RH 0038 1INNER PANEL, LH 0039 1INNER PANEL, RH 0040 1INNER PANEL, LH 0041 1INNER PANEL, RH 0042 1INNER PANEL, LH 0043 1INNER PANEL, RH 0044 1INNER PANEL, LH 0045 1INNER PANEL, RH 0046 1INNER PANEL, LH 0047 1INNER PANEL, RH 0048 1INNER PANEL, RH 0049 1INNER PANEL, LH 0050 1INNER PANEL, RH 0051 1INNER PANEL, LH 0052 1INNER PANEL, RH 0053 1INNER PANEL, LH 0054 1INNER PANEL, RH 0055 1INNER PANEL, LH 0056 1SILENCER SHEET & PAD 0057 1SILENCER SHEET & PAD 0058 1SILENCER SHEET & PAD 0059 1SILENCER SHEET & PAD 0060 1SILENCER SHEET & PAD 0061 1SILENCER SHEET & PAD 0062 1SILENCER SHEET & PAD 0063 1SILENCER SHEET & PAD

61111APANEL, FRONT SIDE, OUTER RH

main61111-26430iGDH300..RHD..4D..SP..6FC..GEN201902-202505

main61111-26450iGDH300,GRH300..SHP..(GCC,GEN)201902

REAR SIDE GLASS(RH)-FIXED(UV CUT, GREEN)&*ECS(*SD & BACK DOOR) & *POSD

main61111-26450iGDH301..GSOB..6F..N201902-202505

main61111-26460iGRH300..5D;GDH300..SHP..(GCC,GEN);GDH300,301,GRH300,301..LHD..4D..D;GDH300..5D..(GSOB,HPSOB,PSOB,SG,SP)201902

main61111-26470iGDH306..LHD..G¥36,000201907-202505

main61111-26480iGDH322..RHD..GSOB..6FC..D201903-202404

main61111-26490iGDH320,GRH320..GSOB,PSOB,SP;GDH320,328,GRH320..LHD..SG..D;GDH322,GRH322..LHD..(D,P)..(GCC,GEN)201903-202310

main61111-26510iGDH322..P..GCC;GRH322..LHD..(D,P)201903

REAR SIDE GLASS(RH)-FIXED(UV CUT, GREEN)&*ECS(*SD) & *POSD

main61111-26510iGDH321..N..GEN201903-202505

61112APANEL, FRONT SIDE, OUTER LH

main61112-26450iGDH301..GSOB..6F..N201902-202505

main61112-26460iGDH301..NZ201902

*ECS(*SD) & *POSD

main61112-26460iGDH300..SHP..ARL;GDH301,GRH301..RHD..N201902

REAR SIDE GLASS(LH)-FIXED(UV CUT, GREEN)&*ECS(*SD & BACK DOOR) & *POSD

main61112-26470iGDH300..RHD..4D..SP..6FC..GEN201902-202505

main61112-26490iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304¥36,000201907-202505

main61112-26500iGDH321..GEN201903-202505

main61112-26510iGDH322..RHD..P..GEN201903-202404

main61112-26520iGDH322..Q..GEN202006

main61112-26520iGDH322..RHD..GSOB..6F;GDH322..RHD..SG..D..GEN;GDH321,GRH322..RHD..6F..D201903-202005

REAR SIDE GLASS(LH)-FIXED(UV CUT, GREEN)&*ECS(*SD) & *POSD

main61112-26520iGDH322,GRH321..Q..ARL;GDH321,322,GRH322..RHD..N201903

*ECS(*SD) & *POSD

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61225-26060iGRH300..RHD..4D;GDH301..RHD..GSOB..6FC;GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN;GDH300,301,GRH301..RHD..4D..(PSOB,SG)201902-202505

main61225-26080iGDH306..RHD;GDH301..LHD..GSOB..6FC;GDH300,303,304,GRH300,303,304..5D;GDH301,GRH300..LHD..4D..(GSOB,SP)..6F..D;GDH300,301,306,GRH301..LHD..(PSOB,SG,SP)..(D,J,N)..GEN¥21,500201902-202505

main61225-26100iGDH322..Q..GEN201903-202404

main61225-26120iGDH320..LHD..SG;GDH322..LHD..6FC;GDH328,GRH32#..LHD..4D;GDH320,GRH320..GSOB,PSOB,SP;GDH322..LHD..GSOB..6F..(D,P);GDH322..LHD..SG..6F..(GCC,GEN)201903-202505

61225BRAIL, ROOF SIDE OUTER UPPER NO.2, RH

main61225-26070iGRH300..RHD..4D;GDH301..RHD..GSOB..6FC;GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN;GDH300,301,GRH301..RHD..4D..(PSOB,SG)201902-202505

main61225-26090iGDH306..RHD;GDH301..LHD..GSOB..6FC;GDH300,303,304,GRH300,303,304..5D;GDH301,GRH300..LHD..4D..(GSOB,SP)..6F..D;GDH300,301,306,GRH301..LHD..(PSOB,SG,SP)..(D,J,N)..GEN¥21,500201902-202505

main61225-26110iGDH322..RHD..GSOB..6FC..D201903-202404

main61225-26130iGDH320..LHD..SG;GDH322..LHD..6FC;GDH328,GRH32#..LHD..4D;GDH320,GRH320..GSOB,PSOB,SP;GDH322..LHD..GSOB..6F..(D,P);GDH322..LHD..SG..6F..(GCC,GEN)201903-202505

61226ARAIL, ROOF SIDE OUTER UPPER NO.1, LH

main61226-26060iGDH301..GSOB..6F..N201902-202505

main61226-26080iGDH306..RHD;GRH300..ARL,GCC;GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN;GDH300,303,304,GRH303,304..5D;GDH306,GRH300..LHD..5D..(D,J)..GEN;GDH300,301,GRH301¥21,500201902-202505

main61226-26100iGDH322..LHD..6FC;GDH320,328,GRH32#..LHD..4D;GDH322..LHD..GSOB..6F..(D,P);GDH322..LHD..SG..6F..(GCC,GEN)201903-202505

main61226-26120iGDH322..RHD..(P,Q)..GEN201903-202404

61226BRAIL, ROOF SIDE OUTER UPPER NO.2, LH

main61226-26070iGDH301..GSOB..6F..N201902-202505

main61226-26090iGDH306..RHD;GRH300..ARL,GCC;GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN;GDH300,303,304,GRH303,304..5D;GDH306,GRH300..LHD..5D..(D,J)..GEN;GDH300,301,GRH301¥21,500201902-202505

main61226-26110iGDH321..GEN201903-202505

main61226-26130iGDH322..RHD..GSOB..6FC..D201903-202404

61431PANEL, ROCKER, OUTER REAR RH

main61431-26010iGDH300,GRH300..5D;GDH301..LHD..GSOB..6FC;GDH301..LHD..GSOB..6F..D;GDH300,301,GRH300,301..LHD..4D..(PSOB,SG,SP)¥10,500201902-202505

main61431-26020iGDH306..LHD..G¥10,500201907-202505

main61431-26030iGDH322..GSOB..6F..N201903-202505

61611PANEL, QUARTER, RH

main61611-26590iGDH300,GRH300..LHD..4D;GDH300,GRH300..5D..(HPSOB,PSOB,SHP,SP)201902-202312

sub61611-V3060

main61611-26600iGDH301,GRH301..LHD;GDH300,GRH300..GSOB,SG201902-202312

sub61611-V3070

main61611-26620iGDH320,GRH320..5D201903-202309

sub61611-V3020

main61611-26630iGDH32#,GRH32#..LHD..4D¥61,300201903-202309

sub61611-V3030

main61611-26640iGDH303,304,306,GRH303,304¥58,600201907-202312

sub61611-V3080¥53,100

main61611-26680iGRH300..RHD..4D;GDH300..RHD..4D..PSOB;GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN201902-202505

main61611-26690iGDH301,GRH301..RHD..SG;GDH301..RHD..GSOB..6FC201902-202404

main61611-26700iGDH322..RHD..GSOB..6FC..D201903-202404

main61611-V3020iGDH320,GRH320..5D202310

main61611-V3030iGDH322..GSOB..6F..N202310-202505

main61611-V3060iGDH300..LHD..GEN;GDH300,GRH300..5D..(HPSOB,PSOB,SHP,SP)202401

main61611-V3070iGDH301..GSOB..6F..N202401-202505

main61611-V3080iGDH306¥53,100202401-202505

61612PANEL, QUARTER, LH

main61612-26670iGDH300..GCC;GRH300..5D..GEN;GRH300..6FC..GEN;GDH300..RHD..(HPSOB,PSOB,SHP,SP);GRH300..(HPSOB,PSOB,SHP,SP)..(ARL,GCC)201902-202312

sub61612-V3070

main61612-26680iGRH300..SG;GDH300,301,GRH301..RHD..(GSOB,SG)201902-202312

sub61612-V3080

main61612-26700iGDH320,GRH320..5D201903-202309

sub61612-V3020

main61612-26710iGDH322..RHD..(P,Q)..GEN201903-202309

sub61612-V3030

main61612-26720iGDH303,304,306,GRH303,304¥58,600201907-202312

sub61612-V3090¥53,100

main61612-26760iGDH300,GRH300..LHD..4D201902

main61612-26770iGDH301,GRH301..LHD..SG;GDH301..LHD..GSOB..6FC;GDH301..LHD..GSOB..6F..D201902-202505

main61612-26790iGDH322..GSOB..6F..N201903-202505

main61612-V3020iGDH320,GRH320..5D202310

main61612-V3030iGDH322..RHD..GSOB..N;GDH322..RHD..GSOB..6F;GDH320,321,322,GRH322..RHD..SG202310-202404

main61612-V3070iGDH300..RHD..4D..SP..6FC..GEN202401-202505

main61612-V3080iGDH301..RHD..GSOB..6F202401-202404

main61612-V3090iGDH306¥53,100202401-202505

9 parts on this diagram · 62 diagrams in section
