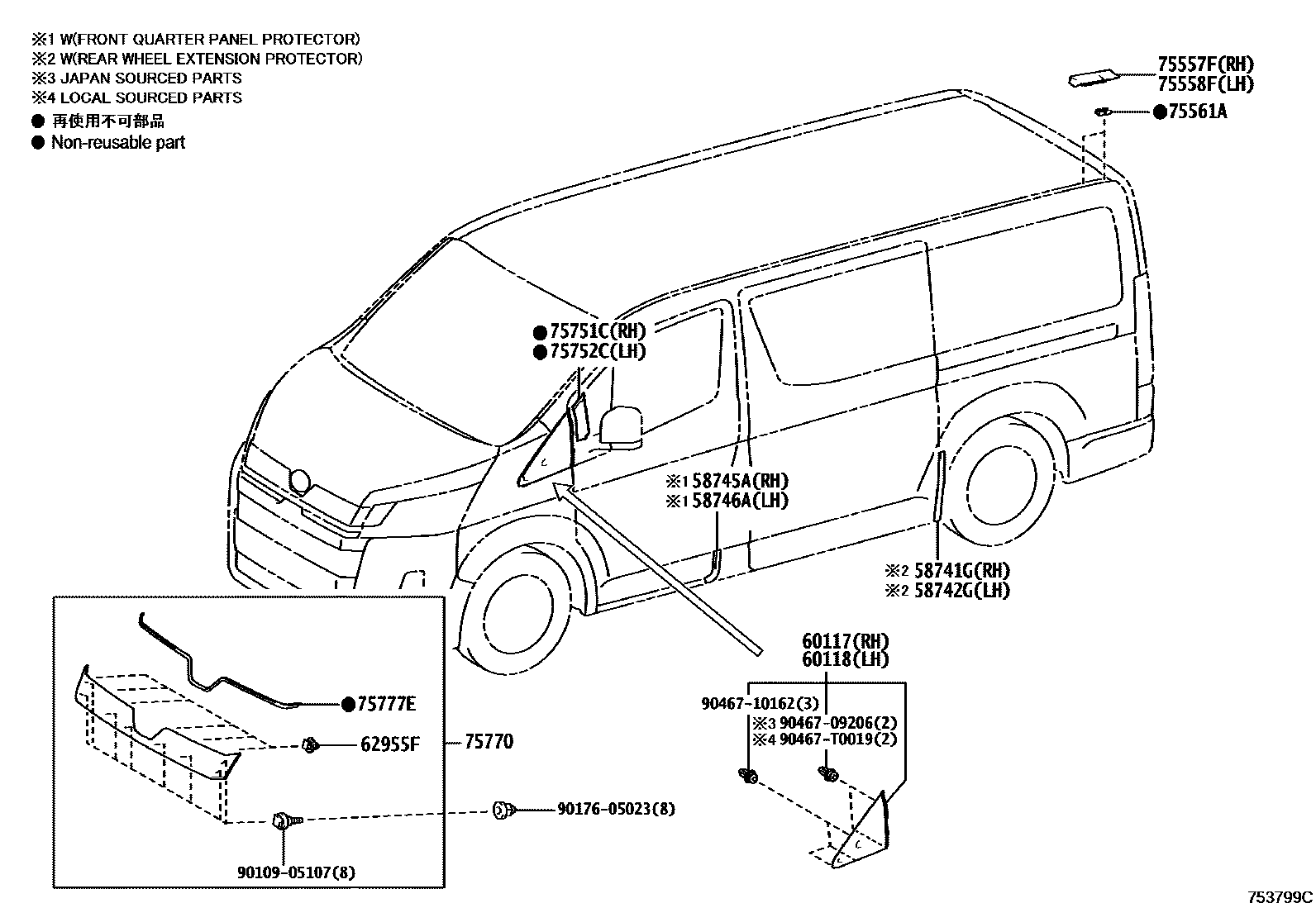

Toyota GRNVA/HIACE/MJSTY — MOULDING

0001 1 0002 1 0003 1

58741GPROTECTOR, REAR WHEEL EXTENSION, RH

main58741-26060iGDH300..5D..(SG,SHP,SP)..ARL201902

NEW ZEALAND SPEC

main58741-26060iGDH300,GRH300..5D..ARL201902

IRAQ SPEC

main58741-26070iGDH320,GRH320..5D..ARL;GDH322..LHD..6F..P..GEN201903

IRAQ SPEC

main58741-26070iGRH322..LHD..6FC..GEN202208

MONGOLIA SPEC

58742GPROTECTOR, REAR WHEEL EXTENSION, LH

main58742-26080iGDH300,301,GRH300..ARL,NZ201902

NEW ZEALAND SPEC

main58742-26080iGDH300,301,GRH300..ARL,NZ201902

IRAQ SPEC

main58742-26090iGDH320,321,322,GRH320,321..ARL,NZ¥480201903

NEW ZEALAND SPEC

main58742-26090iGDH320,321,322,GRH320,321..ARL,NZ¥480201903

IRAQ SPEC

58745APROTECTOR, QUARTER PANEL, FRONT RH

main58745-26010iGDH322..LHD..6F..P..GEN;GDH300,301,320,321,322,GRH300,320,321..ARL,NZ201902

NEW ZEALAND SPEC

main58745-26010iGDH322..LHD..6F..P..GEN;GDH300,301,320,321,322,GRH300,320,321..ARL,NZ201902

IRAQ SPEC

main58745-26010iGRH322..LHD..6FC..GEN202208

MONGOLIA SPEC

58746APROTECTOR, QUARTER PANEL, FRONT LH

main58746-26010iGDH322..LHD..6F..P..GEN;GDH300,301,320,321,322,GRH300,320,321..ARL,NZ201902

NEW ZEALAND SPEC

main58746-26010iGDH322..LHD..6F..P..GEN;GDH300,301,320,321,322,GRH300,320,321..ARL,NZ201902

IRAQ SPEC

main58746-26010iGRH322..LHD..6FC..GEN202208

MONGOLIA SPEC

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-26010iGDH322..D,N;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,321,328,GRH300,301,32#¥3,670201902-202212

main60117-26010iGDH321..GEN¥3,670202212-202505

(J)

main60117-26020iGDH306..LHD..G¥4,320201907-202505

main60117-VR010iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D202212-202505

(L)

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-26010iGDH322..RHD..(P,Q)..GEN¥3,670201902-202212

main60118-26010iGDH321..GEN¥3,670202212-202505

(J)

main60118-26020iGDH306..LHD..G¥4,320201907-202505

main60118-VR010iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D202212-202505

(L)

62955FRETAINER, QUARTER VENT LOUVER

main62955-50010iGDH322..RHD..(P,Q)..GEN¥210201902-202505

75557FMOULDING, ROOF DRIP SIDE FINISH QUARTER, RH

main75557-26010iGDH321..GEN¥810201902-202505

75558FMOULDING, ROOF DRIP SIDE FINISH QUARTER, LH

main75558-26010iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN¥810201902-202505

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52020iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304¥160201902-202505

75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-26010iGDH322..RHD..(P,Q)..GEN¥1,120201902-202210

main75751-26010iGDH321..GEN¥1,120202210-202505

(J)

main75751-26020iGDH306..LHD..G¥1,560201907-202505

main75751-VR030iGDH300..5D;GDH321..RHD;GDH301..GSOB..6FC;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH320,328,GRH300,301,32#;GDH300,322..LHD..(GSOB,SP)..G202210-202505

(L)

75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-26010iGDH321..GEN¥1,120202210-202505

(J)

main75752-26010iGDH322..RHD..(P,Q)..GEN¥1,120201902-202210

main75752-26020iGDH306..LHD..G¥1,560201907-202505

main75752-VR020iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D202210-202505

(L)

75770MOULDING ASSY, HOOD, FRONT

main75770-26120iGDH322..RHD..P..GEN¥10,700201902-202505

main75770-26130iGDH321..N..GEN¥14,600201902-202310

GL PACKAGE

main75770-26130iGDH322..Q..GEN¥14,600202006

main75770-26140iGDH322..LHD..6F..P..GEN201903

main75770-26150iGDH306..RHD;GDH303,304,GRH303,304¥17,500201907

main75770-26160iGDH306..LHD201907-202505

75777EPAD, HOOD FRONT MOULDING

main75777-26140iGDH322..RHD..(P,Q)..GEN¥780201902-202505

9010905107

main90109-05107¥60

9017605023

main90176-05023¥80

9046709206

main90467-09206¥80

9046710162

main90467-10162¥90

90467T0019

main90467-T0019

19 parts on this diagram · 3 diagrams in section
