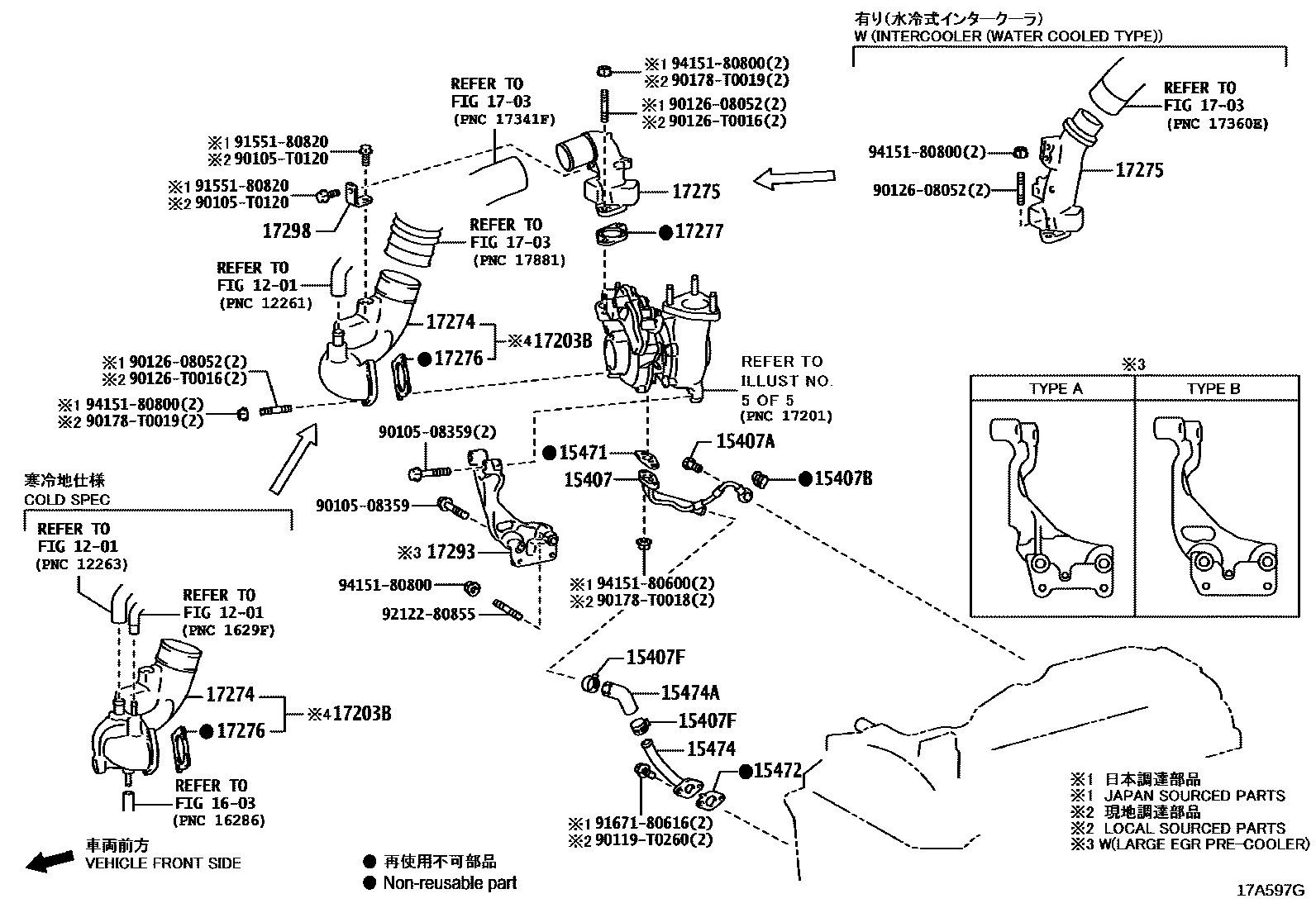

Toyota GRNVA/HIACE/MJSTY — MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1TYPE A 0009 1TYPE B 0012 1TYPE C 0013 1TYPE D 0017 1TYPE E 0018 1 0019 1

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-0E020i1GDFTV..GDH301,322..GSOB..6F..N¥1,950201902-202505

15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)

main90401-12097i1GDFTV..GDH30#,32#¥310201902-202005

(J)

main90401-T0004i1GDFTV..GDH320,322,328..AGT,BZ202401

main90401-T0004i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main96341-11200i1GDFTV..GDH301..SG;1GDFTV..GDH321..RHD;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..P..(ARL,GCC);1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GD¥170202006-202505

(J)

15407BGASKET(FOR TURBO OIL INLET PIPE)

main90430-T0006i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main90430-T0006i1GDFTV..GDH320,322,328..AGT,BZ202401

main90904-30004i1GDFTV..GDH322,328..TH,VN¥300201902-202505

(J)

15407FCLAMP OR CLIP, OIL HOSE

main96137-42501i1GDFTV..GDH322..RHD..(P,Q)..GEN¥240201902-202505

15471GASKET, TURBO OIL INLET

main15471-0E010i1GDFTV..GDH320,322,328..AGT,BZ202401

main15471-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main15471-11020i1GDFTV..GDH301..SG;1GDFTV..GDH321..RHD;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..SG..(D,N)..GEN;1GDFTV..GDH3¥270201902-202505

(J)

15472GASKET, TURBO OIL OUTLET, NO.1

main15472-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main15472-0E010i1GDFTV..GDH320,322,328..AGT,BZ202401

main15472-11010i1GDFTV..GDH321..GEN¥270201902-202505

(J)

15474PIPE, TURBO OIL OUTLET

main15474-0E010i1GDFTV..GDH301,322..GSOB..6F..N¥2,560201902-202505

15474AHOSE, TURBO OIL OUTLET

main15491-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main15491-0E010i1GDFTV..GDH320,322,328..AGT,BZ202401

main15491-11010i1GDFTV..GDH322,328..TH,VN¥1,010201902-202505

(J)

1703

17203BELBOW SUB-ASSY, COMPRESSOR INLET

main17203-0E010i1GDFTV..GDH320,328..BZ202409

main17203-0E030i1GDFTV..GDH322..TH202005-202311

MADE IN THAILAND

main17203-0E030i1GDFTV..GDH322..AGT,TH202311

main17203-11010i1GDFTV..GDH322..LHD..6F..(D,N)201903-202505

MADE IN JAPAN

main17203-11010i1GDFTV..GDH322..LHD..6F..(D,N)201903-202107

ECUADOR SPEC,MADE IN JAPAN

main17203-11010i1GDFTV..GDH322..LHD..6F..(D,N)201903-202107

COSTA RICA SPEC,MADE IN JAPAN

main17203-11010i1GDFTV..GDH322..ARL;1GDFTV..GDH322..GSOB..6F..N201903-202505

PERU SPEC,MADE IN JAPAN

main17203-11020i1GDFTV..GDH300..SHP..6F..GEN¥11,800201903

COLD SPEC

17274ELBOW, COMPRESSOR INLET

main17274-0E010i1GDFTV..GDH320..AGT202401

main17274-0E010i1GDFTV..GDH328..VN201906-202111

(L)

main17274-11010i1GDFTV..GDH322..RHD..P..GEN¥9,800201902-202505

(J)

17275ELBOW, COMPRESSOR OUTLET

main17275-0E050i1GDFTV..GDH320,328..BZ¥6,500202409

main17275-11030i1GDFTV..GDH322..RHD..(P,Q)..GEN¥5,500201902-202505

main17275-11040i1GDFTV..GDH300..SHP..6F..GEN¥6,400202208

17276GASKET, COMPRESSOR INLET

main17276-0E010i1GDFTV..GDH322..TH202005-202311

(L)

main17276-0E010i1GDFTV..GDH320,328..BZ;1GDFTV..GDH322..AGT,TH202311

main17276-0L010i1GDFTV..GDH328..VN201906-202111

(L)

main17276-0L010i1GDFTV..GDH320..AGT202401

main17276-26010i1GDFTV..GDH322..TH¥510201903-202107

ECUADOR SPEC,(J)

main17276-26010i1GDFTV..GDH322..TH¥510201903-202505

(J)

main17276-26010i1GDFTV..GDH322..TH¥510201903-202107

COSTA RICA SPEC,(J)

main17276-26010i1GDFTV..GDH322..GSOB..6F..N¥510201903-202505

PERU SPEC,(J)

main17276-26010i1GDFTV..GDH300..SHP..6F..GEN¥510202405

NEPAL SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 3,WITHOUT(ON BOARD DIAGNOSIS),(J)

main17276-26010i1GDFTV..GDH300..SHP..6F..GEN¥510202405

SRI LANKA SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS),(J)

main17276-26010i1GDFTV..GDH300..SHP..6F..GEN¥510202405

FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699,(J)

main17276-26010i1GDFTV..GDH300..SHP..6F..GEN¥510202405

PAPUA NEW GUINEA SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699,(J)

main17276-67010i1GDFTV..GDH322..RHD..P..GEN¥270201902-202505

(J)

17277GASKET, COMPRESSOR OUTLET

main17277-0E010i1GDFTV..GDH322..TH201906-202311

(L)

main17277-0E010i1GDFTV..GDH320,322..AGT,TH202311

main17277-0E030i1GDFTV..GDH320,328..BZ¥410202409

main17277-11030i1GDFTV..GDH320..6F;1GDFTV..GDH322..GCC,NZ;1GDFTV..GDH300..PSOB,SP;1GDFTV..GDH300..SHP..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH320..SG..6FC..GEN;1GDFTV..GDH322.¥270201902-202505

(J)

main17277-11040i1GDFTV..GDH300..SHP..6F..GEN¥410202208

17293STAY, TURBOCHARGER

main17293-0E040i1GDFTV..GDH322,328..TH,VN¥6,500201906-202311

(L),TYPE A:REF ILL.

main17293-0E040i1GDFTV..GDH322..TH¥6,500202311

main17293-0E040i1GDFTV..GDH320,322,328..AGT,BZ¥6,500202401

THA SOURCED PARTS

main17293-0E060i1GDFTV..GDH320,322,328..AGT,BZ202401

ARG SOURCED PARTS

main17293-11011i1GDFTV..GDH30#,32#¥9,000201902-202001

TYPE B:REFER ILLUST.

sub17293-11020¥6,700

main17293-11020i1GDFTV..GDH322..RHD..P..GEN¥6,700202002-202505

(J),TYPE A:REF ILL.

17298STAY, COMPRESSOR ELBOW

main17298-0E010i1GDFTV..GDH322..TH201906-202311

(L)

main17298-0E010i1GDFTV..GDH320,322,328..AGT,BZ,TH202311

main17298-11010i1GDFTV..GDH301,322..GSOB..6F..N¥400201902-202505

(J)

9010508359

main90105-08359¥160

90105T0120

main90105-T0120

90119T0260

main90119-T0260

9012608052

main90126-08052¥80

90126T0016

main90126-T0016

90178T0018

main90178-T0018¥70

90178T0019

main90178-T0019

9155180820

main91551-80820¥80

9167180616

main91671-80616¥60

9212280855

main92122-80855¥120

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

28 parts on this diagram · 11 diagrams in section
