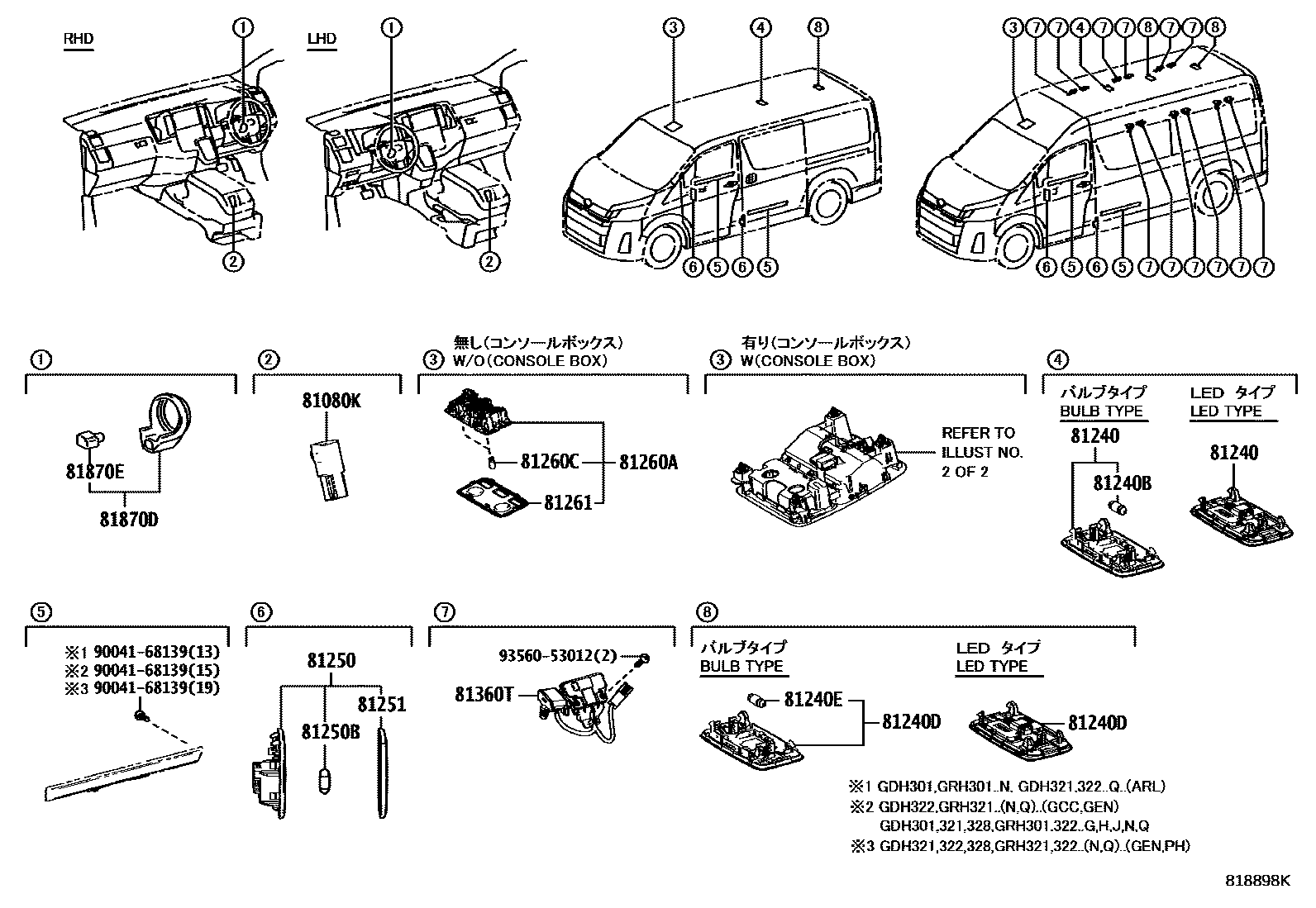

Toyota GRNVA/HIACE/MJSTY — INTERIOR LAMP

0001 1 0002 1 0003 1BULB TYPE 0005 1LED TYPE 0007 1

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-58100iGDH304,GRH304..RHD¥920201902-202505

sub81080-33290¥920

81240LAMP ASSY, ROOM, NO.1

main81240-35020-B0iGDH322..RHD..P..GEN201902-202107

LT.GRAY,TRIM1#

sub81240-35020¥2,850

sub81240-42020¥2,230

main81240-42020-B0iGDH328..PH202107

EUROPE N1,LT.GRAY,TRIM1#

main81240-42020-B0iGDH300..RHD..4D..SP..6FC..GEN202107-202505

LT.GRAY,TRIM1#

main81240-42020-B0iGDH321..D..GEN202107-202310

GEORGIA SPEC&,LT.GRAY,TRIM1#

main81240-48030-A0iGDH322..LHD..N;GDH322..RHD..(N,Q)..GEN;GDH321,328,GRH321,322..(N,Q)..(GEN,IDN,PH)201902-202107

FROMAGE,TRIM0#

sub81240-48040¥7,300

main81240-48030-A0iGDH303,304,306,GRH303,304201907-202107

FROMAGE,TRIM2#

sub81240-48040¥7,300

main81240-48040-A0iGDH306..J;GDH303,304,GRH303,304202107-202310

FROMAGE,TRIM0#

main81240-48040-A0iGDH306..G202107-202505

FROMAGE,TRIM2#

main81360-26060-A0iGDH322,GRH321,322..Q..(ARL,GCC)201903

FROMAGE,TRIM0#

main81360-26060-B0iGDH321..6FC..GEN;GDH322..LHD..6F..P..GEN;GDH322,GRH321,322..P..(ARL,GCC,NZ)201903

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iGDH321..D..GEN¥180201902-202505

12V 8W

81240DLAMP ASSY, ROOM, NO.2

main81240-35020-B0iGDH322..6FC..P..GEN;GDH300,301,32#,GRH300,301,320,322..D201902-202107

LT.GRAY,TRIM1#

sub81240-35020¥2,850

sub81240-42020¥2,230

main81240-42020-B0iGDH321..D..GEN202107-202505

LT.GRAY,TRIM1#

main81240-42020-B0iGDH321..D..GEN202107-202310

GEORGIA SPEC&,LT.GRAY,TRIM1#

main81240-42020-B0iGDH300..5D;GDH301..GSOB..6FC..D;GDH301..LHD..GSOB..6F..D;GDH300,301..4D..(PSOB,SG)..D;GDH320,328,GRH300,301,320,322..D;GDH322..RHD..SG..(D,P)..(GEN,TH);GDH300,322..202107

EUROPE N1,LT.GRAY,TRIM1#

main81240-48030-A0iGDH301,GRH301..N;GDH322..6FC..Q..GEN201902-202107

FROMAGE,TRIM0#

sub81240-48040¥7,300

main81240-48030-A0iGDH303,304,306,GRH303,304201907-202107

FROMAGE,TRIM2#

sub81240-48040¥7,300

main81240-48040-A0iGDH306..J;GDH303,304,GRH303,304202107

SOUTH AFRICA SPEC&BUS STRUCTURE REQUIREMENT(SOUTH AFRICA),FROMAGE,TRIM0#

main81240-48040-A0iGDH322..RHD..SG..N202107

FROMAGE,TRIM0#

main81240-48040-A0iGDH322..RHD..SG..N202107-202505

FROMAGE,TRIM2#

main81360-26060-A0iGDH322,GRH322..Q..GCC201903

FROMAGE,TRIM0#

main81360-26060-B0iGDH321..6FC..GEN;GDH322..LHD..6F..P..GEN;GDH322,GRH321,322..P..(ARL,GCC,NZ)201903

LT.GRAY,TRIM1#

81240EBULB, ROOM LAMP, NO.2

main90981-14011iGDH322..RHD..P..GEN¥180201902-202505

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-26030-C0iGDH321..6FC..GEN;GDH322..LHD..6F..P..GEN;GDH322,GRH321,322..P..(ARL,GCC,NZ)201903

BLACK,TRIM1#

main81250-95J05-C1iGDH321..D..(IDN,NZ);GDH322..6FC..P..GEN;GDH328,GRH301,322..D;GDH322..LHD..GSOB..D;GDH301..GSOB..6FC..D;GDH322..RHD..GSOB..6F;GDH301..LHD..GSOB..6F..D;GDH301,322..SG201902-202404

BLACK,TRIM1#

sub81250-95J05¥3,370

main81250-95J05-C1iGDH322..RHD..P..GEN201902-202106

AMBULANCE,BLACK,TRIM1#

sub81250-95J05¥3,370

81250BBULB, ROOM LAMP, NO.2

main99132-13050iGDH322..RHD..P..GEN¥150201902-202404

12V 5W

main99132-13050iGDH322..RHD..P..GEN¥150201902-202106

12V 5W,AMBULANCE

81251LENS, ROOM LAMP, NO.2

main81251-12030iGDH322..RHD..P..GEN¥260201902-202106

AMBULANCE

main81251-12030iGDH322..RHD..P..GEN¥260201902-202404

main81251-26030iGDH321..6FC..GEN;GDH322..LHD..6F..P..GEN;GDH322,GRH321,322..P..(ARL,GCC,NZ)201903

81260LAMP ASSY, GLOVE BOX

main81080-58100iGDH306..LHD..G¥920201907-202505

sub81080-33290¥920

81260ALAMP ASSY, MAP

main81260-26020-B0iGDH321..D..GEN202006-202106

LT.GRAY,TRIM1#

sub81260-26021

main81260-26021-B0iGRH320..GEN202208-202310

LT.GRAY,TRIM1#

main81260-26070-B0iGDH300,301,320,322,GRH300,301,320,322..RHD..D..GEN201902-202106

AUDIO-AM & FM & CD & *BT,LT.GRAY,TRIM1#

sub81260-26071

main81260-26070-B0iGDH300,301,320,322,GRH300,301,320,322..RHD..D..GEN201902-202106

LT.GRAY,TRIM1#

sub81260-26071

main81260-26071-B0iGDH320..ARL;GDH300..SG..6F;GDH300..5D..6FC..ARL202107-202207

NEW ZEALAND SPEC,LT.GRAY,TRIM1#

sub81260-V3080¥9,900

main81260-26071-B0iGDH320..ARL;GDH300..SG..6F;GDH300..5D..6FC..ARL202107-202207

AUDIO-AM & FM & CD & *BT,LT.GRAY,TRIM1#

sub81260-V3080¥9,900

main81260-26071-B0iGDH320..ARL;GDH300..SG..6F;GDH300..5D..6FC..ARL202107-202207

LT.GRAY,TRIM1#

sub81260-V3080¥9,900

main81260-26130-B0iGDH322..RHD..P..GEN201903-202107

LT.GRAY,TRIM1#

main81260-26130-B0iGDH322..LHD..6F..P..GEN201903-202107

GEORGIA SPEC&,LT.GRAY,TRIM1#

main81260-26130-B0iGDH322..LHD..6F..P..GEN201903-202107

EUROPE N1,LT.GRAY,TRIM1#

main81260-26131-B0iGDH322..LHD..SG..P..GEN202107-202310

LT.GRAY,TRIM1#

main81260-26131-B0iGDH322..LHD..D;GDH322..P..GCC;GRH320..LHD..5D;GDH322,GRH320..RHD..(D,P)..(GEN,TH);GDH320,321,328,GRH322..(D,P)..(GCC,GEN,IDN,VN)202107-202310

EUROPE N1,LT.GRAY,TRIM1#

main81260-26131-B0iGDH322..LHD..D;GDH322..P..GCC;GRH320..LHD..5D;GDH322,GRH320..RHD..(D,P)..(GEN,TH);GDH320,321,328,GRH322..(D,P)..(GCC,GEN,IDN,VN)202107-202310

GEORGIA SPEC&,LT.GRAY,TRIM1#

main81260-26290-A0iGDH303,GRH303..G..GEN201907-202106

FROMAGE,TRIM2#

sub81260-26291

main81260-26290-A0iGDH303,GRH303..G..GEN201907-202106

FROMAGE,TRIM0#,2#

sub81260-26291

main81260-26291-A0iGDH306..G202107-202208

VIETNAM SPEC&LEATHER PACKAGE&AUDIO-AUDIO LESS & WITH(COVER),FROMAGE,TRIM2#

main81260-26291-A0iGDH306..G202107-202208

VIETNAM SPEC&PREMIUM PACKAGE&AUDIO-AUDIO LESS & WITH(COVER),FROMAGE,TRIM2#

main81260-26291-A0iGDH306..G202107-202310

FROMAGE,TRIM2#

main81260-26340-A0iGRH322..LHD..N;GDH322..LHD..6F..N;GDH322..6FC..Q..GEN201903-202106

AUDIO-AM & FM & CD & *BT,FROMAGE,TRIM0#

sub81260-26341

main81260-26340-A0iGRH322..LHD..N;GDH322..LHD..6F..N;GDH322..6FC..Q..GEN201903-202106

AUDIO-*DA(DVD & CD & *BT),FROMAGE,TRIM0#

sub81260-26341

main81260-26340-A0iGDH322,328,GRH322..LHD..(N,Q)201903-202106

FROMAGE,TRIM0#

sub81260-26341

main81260-26340-A0iGDH322,328,GRH322..LHD..(N,Q)201903-202106

AUDIO-*DA & CD & *BT,FROMAGE,TRIM0#

sub81260-26341

main81260-26341-A0iGRH322..LHD..N;GDH322..LHD..GSOB..6FC..N;GDH322,328..LHD..SG..6F..N202107-202310

AUDIO-*DA(DVD & CD & *BT),FROMAGE,TRIM0#

main81260-26341-A0iGRH322..LHD..(N,Q);GDH322..6FC..Q..GCC;GDH322..LHD..GSOB..6FC..N;GDH322,328..LHD..SG..6F..(N,Q)202107-202310

AUDIO-AM & FM & CD & *BT,FROMAGE,TRIM0#

main81260-26341-A0iGRH322..LHD..(N,Q);GDH322..6FC..Q..GCC;GDH322..LHD..GSOB..6FC..N;GDH322,328..LHD..SG..6F..(N,Q)202107-202310

FROMAGE,TRIM0#

main81260-26341-A0iGDH321,GRH321..N,Q202107-202310

AUDIO-*DA(DVD & CD & *BT & 17CY PLUS),FROMAGE,TRIM0#

main81260-26350-A0iGDH321..N..IDN;GDH322,328,GRH322..(N,Q)..(GCC,GEN,PH)201903-202106

FROMAGE,TRIM0#

sub81260-26351

main81260-26351-A0iGDH322,328,GRH322..(N,Q)..(GCC,GEN,PH)202107-202310

FROMAGE,TRIM0#

main81260-26351-A0iGDH322,328,GRH322..(N,Q)..(GCC,GEN,PH)202107-202310

AUDIO-AUDIO LESS & WITH(COVER),FROMAGE,TRIM0#

main81260-26360-A0iGDH322,GRH322..RHD..6F..N201903-202106

FROMAGE,TRIM0#

sub81260-26361

main81260-26360-A0iGDH322,GRH321..Q..ARL201903-202106

LATIN AMERICA(GENERAL) SPEC&AUDIO-AM & FM & CD & *BT,FROMAGE,TRIM0#

sub81260-26361

main81260-26360-A0iGDH322,GRH321..Q..ARL201903-202106

OCEANIA(GENERAL)SPEC&AUDIO-*DA & CD & *BT,FROMAGE,TRIM0#

sub81260-26361

main81260-26360-A0iGDH322,GRH321..Q..ARL201903-202106

AUDIO-AM & FM & CD & *BT,FROMAGE,TRIM0#

sub81260-26361

main81260-26360-A0iGDH322,GRH321..Q..ARL201903-202106

AUDIO-*DA & CD & *BT,FROMAGE,TRIM0#

sub81260-26361

main81260-26360-A0iGDH322,GRH321..Q..ARL201903-202106

AUDIO-*DA(DVD & CD & *BT),FROMAGE,TRIM0#

sub81260-26361

main81260-26380-B0iGDH322..LHD..6F..P..GEN201903-202107

LT.GRAY,TRIM1#

main81260-26381-B0iGDH322..LHD..P..GEN202107-202310

LT.GRAY,TRIM1#

main81260-26410-A0iGDH301,GRH301..N201902-202106

FROMAGE,TRIM0#

sub81260-26411

main81260-26411-A0iGDH301,GRH301..N202107-202207

FROMAGE,TRIM0#

sub81260-V3190

main81260-42E10-B0iGDH300..RHD..4D..SP..6FC..GEN202107-202505

LT.GRAY,TRIM1#

main81260-42E10-B0iGDH300..SHP..6F..GEN202107-202310

UNITED ARAB EMIRATES SPEC&DATA COMMUNICATION MODULE-WITHOUT,LT.GRAY,TRIM1#

main81260-52120-B0iGDH300..SHP..GCC201902-202106

UNITED ARAB EMIRATES SPEC&DATA COMMUNICATION MODULE-WITHOUT,LT.GRAY,TRIM1#

main81260-52120-B0iGDH300,GRH300..(SHP,SP)..GCC201902-202106

UNITED ARAB EMIRATES SPEC,LT.GRAY,TRIM1#

main81260-52120-B0iGDH300..SHP..GCC201902-202106

LT.GRAY,TRIM1#

main81260-V3010-B0iGDH300,320..SG..ARL202107-202310

LT.GRAY,TRIM1#

main81260-V3011-B0iGDH322..P..ARL;GDH300,320..(PSOB,SHP,SP)..ARL202310

LT.GRAY,TRIM1#

main81260-V3040-A0iGDH322..Q..ARL202107-202310

FROMAGE,TRIM0#

main81260-V3041-A0iGDH322..Q..ARL202310

FROMAGE,TRIM0#

main81260-V3050-B0iGDH328..PH202310

AUDIO-EDA(*BT),LT.GRAY,TRIM1#

main81260-V3050-B0iGDH328..PH202310

EUROPE N1,LT.GRAY,TRIM1#

main81260-V3050-B0iGDH328..PH202310

LT.GRAY,TRIM1#

main81260-V3050-B0iGDH300..LHD..6FC..GEN;GDH320..LHD..PSOB..6F..GEN202310

AUDIO-*DA(*BT & 21CY),LT.GRAY,TRIM1#

main81260-V3080-B0iGDH320..RHD..6F;GDH322..RHD..SG..D..GEN;GDH300..RHD..4D..SP..6FC..GEN;GDH300..RHD..(SHP,SP)..6F..(GEN,TH);GDH301,321,GRH301,322..RHD..SG..D..(GEN,IDN,TH);GDH300,301202208-202310

NEW ZEALAND SPEC,LT.GRAY,TRIM1#

main81260-V3080-B0iGDH300,301,320,321..(GSOB,SG)..(ARL,NZ)202208-202310

LT.GRAY,TRIM1#

main81260-V3080-B0iGDH300,301,320,321..(GSOB,SG)..(ARL,NZ)202208-202310

AUDIO-AM & FM & CD & *BT,LT.GRAY,TRIM1#

main81260-V3081-B0iGDH320..5D..ARL;GDH300..SHP..ARL202310

AUDIO-EDA(*BT),LT.GRAY,TRIM1#

main81260-V3081-B0iGDH322..RHD..SG..D..GEN;GDH300..5D..(HPSOB,PSOB,SP)..GEN;GDH300,322..RHD..4D..(GSOB,PSOB,SP)..6F;GDH300,301..RHD..(GSOB,PSOB,SHP)..6FC..GEN;GDH301,320,321,GRH300,30202310

NEW ZEALAND SPEC,LT.GRAY,TRIM1#

main81260-V3081-B0iGDH322..RHD..SG..D..GEN;GDH300..5D..(HPSOB,PSOB,SP)..GEN;GDH300,322..RHD..4D..(GSOB,PSOB,SP)..6F;GDH300,301..RHD..(GSOB,PSOB,SHP)..6FC..GEN;GDH301,320,321,GRH300,30202310-202405

LT.GRAY,TRIM1#

main81260-V3110-B0iGDH322..P..GCC;GDH322..RHD..GSOB..6F;GDH321..RHD..(GEN,IDN);GDH322..SG..D..(GEN,TH);GDH322,GRH320..LHD..(GSOB,PSOB,SP)..D;GDH320,328,GRH322..(D,P)..(BZ,GCC,GEN)202310-202404

LT.GRAY,TRIM1#

main81260-V3120-A0iGDH303..LHD..H202310

PREMIUM PACKAGE&AUDIO-AUDIO LESS & WITH(COVER),FROMAGE,TRIM2#

main81260-V3120-A0iGDH303..LHD..H202310

FROMAGE,TRIM2#

main81260-V3130-A0iGDH322..LHD..SG..6F..N;GDH322..LHD..6FC..N..GEN202310

AUDIO-EDA(*BT),FROMAGE,TRIM0#

main81260-V3130-A0iGDH322..LHD..SG..6F..N;GDH322..LHD..6FC..N..GEN202310

AUDIO-AVN(*BT & 21CY),FROMAGE,TRIM0#

main81260-V3130-A0iGDH322..LHD..SG..6F..N;GDH322..LHD..6FC..N..GEN202310

FROMAGE,TRIM0#

main81260-V3130-A0iGDH322..LHD..SG..6F..N;GDH322..LHD..6FC..N..GEN202310

AUDIO-*DA(*BT & 21CY),FROMAGE,TRIM0#

main81260-V3140-A0iGDH322,GRH322..(N,Q)..(GCC,GEN)202310

FROMAGE,TRIM0#

main81260-V3160-B0iGDH322..P..GEN202310

LT.GRAY,TRIM1#

main81260-V3171-A0iGDH301..LHD..6F..N;GDH301..GSOB..6FC..N202310

AUDIO-*DA(*BT & 21CY),FROMAGE,TRIM0#

main81260-V3171-A0iGDH301..LHD..SG..6FC..N202310

FROMAGE,TRIM0#

main81260-V3171-A0iGDH301..LHD..SG..6FC..N202310

AUDIO-EDA(*BT),FROMAGE,TRIM0#

main81260-V3171-A0iGDH301..LHD..SG..6FC..N202310

AUDIO-AVN(*BT & 21CY),FROMAGE,TRIM0#

main81260-V3180-A0iGDH301..RHD..6F..N202405

FROMAGE,TRIM0#

main81260-V3190-A0iGDH301..LHD..6F..N;GDH301..GSOB..6FC..N;GDH301,GRH301..RHD..6FC..N202208-202405

FROMAGE,TRIM0#

main81260-V3220-B0iGDH320..AGT202401-202506

LT.GRAY,TRIM1#

main81260-V3230-A0iGDH322..AGT202401-202506

FROMAGE,TRIM0#

81260CBULB(FOR MAP LAMP)

main99132-12050iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D¥110201902-202505

12V 5W

main99132-12050iGDH321..D..GEN¥110201902-202310

12V 5W,UNITED ARAB EMIRATES SPEC&DATA COMMUNICATION MODULE-WITHOUT

81261LENS AND COVER, MAP LAMP

main81363-52010iGDH300..RHD..4D..SP..6FC..GEN¥1,130201902-202505

main81363-52010iGDH321..D..GEN¥1,130201902-202310

UNITED ARAB EMIRATES SPEC&DATA COMMUNICATION MODULE-WITHOUT

81360TLAMP ASSY, SPOT

main81360-26030-A0iGDH322..N;GDH322..6FC..Q..GEN;GDH328,GRH321,322..N,Q;GDH321,322..(N,Q)..(ARL,GCC,IDN)201903-202310

FROMAGE,TRIM0#

main81360-26030-A0iGDH328..PH201903

EUROPE N1,FROMAGE,TRIM0#

main81360-26040-A0iGDH303,304,306,GRH303,304..H,J201907

FROMAGE,TRIM2#

main81360-26040-A0iGDH306..LHD..G201907-202505

FROMAGE,TRIM0#,2#

81870DLAMP ASSY, KEY CYLINDER

main81870-13010iGDH322..RHD..P..GEN¥2,910201902-202505

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main81870-13010iGDH322..RHD..P..GEN¥2,910201902-202505

main81870-13010iGRH320..LHD..SG¥2,910201902-202505

WIRELESS DOOR LOCK-WITH

81870EBULB, KEY CYLINDER LAMP

main90010-01056iGDH322..RHD..P..GEN¥330201902-202505

14V 1.4W

main90010-01056iGDH322..RHD..P..GEN¥330201902-202505

14V 1.4W,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main90010-01056iGRH320..LHD..SG¥330201902-202505

14V 1.4W,WIRELESS DOOR LOCK-WITH

9004168139

main90041-68139¥60

9356053012

main93560-53012¥60

17 parts on this diagram · 5 diagrams in section
