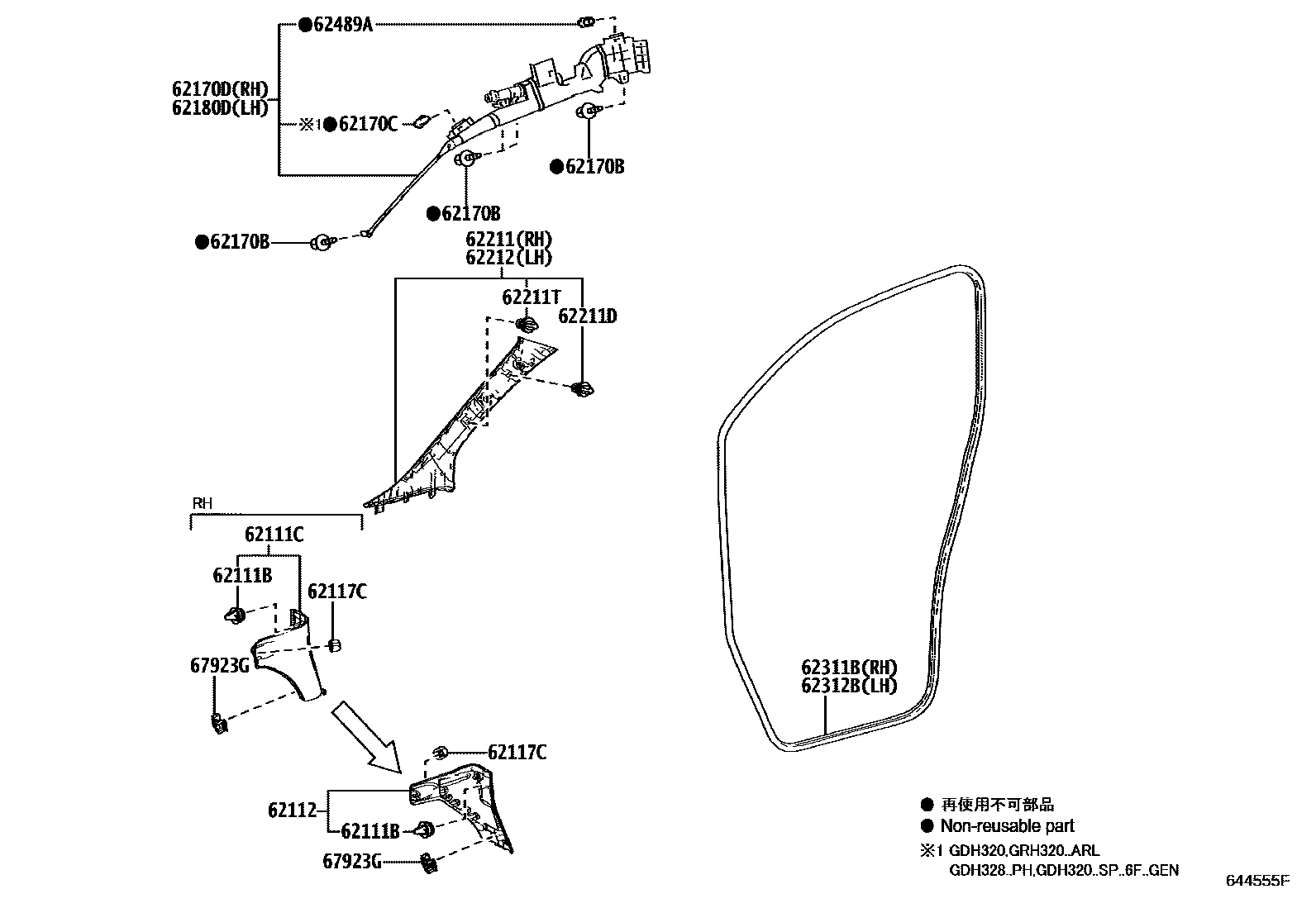

Toyota GRNVA/HIACE/MJSTY — INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1FRONT 0008 1REAR 0009 1REAR(WITHOUT POWER SLIDE DOOR0010 1REAR(WITH POWER SLIDE DOOR) 0012 1REAR 0013 1REAR(WITHOUT POWER SLIDE DOOR0014 1REAR(WITH POWER SLIDE DOOR) 0015 1REAR(WITHOUT POWER SLIDE DOOR0016 1REAR(WITH POWER SLIDE DOOR)

62111BCLIP(FOR COWL SIDE TRIM)

main90467-09240iGDH30#,32#,GRH30#,32#¥80201902-202003

main90467-09245iGDH321..GEN¥80202004-202505

62111CBOARD, COWL SIDE TRIM, RH

main62111-26030-C0iGDH306..LHD..G201907-202505

BLACK,TRIM2#

main62111-26040-C0iGDH300..RHD..4D..SP..6FC..GEN201902-202505

BLACK,TRIM1#

main62111-26040-E0iGDH321..N..IDN;GDH301,322,328,GRH301,321,322..N,Q201902-202310

ORCHID BROWN,TRIM0#

62112BOARD, COWL SIDE TRIM, LH

main62112-26030-C0iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304201907-202505

BLACK,TRIM2#

main62112-26040-C0iGDH321..D..GEN201902-202505

BLACK,TRIM1#

main62112-26040-E0iGDH321..N..IDN;GDH301,322,328,GRH301,321,322..N,Q201902-202310

ORCHID BROWN,TRIM0#

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-06147iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH322..P..(ARL,GCC,NZ);GDH322..LHD..SG..P..GEN;GDH300..4D¥80201902-202505

62170BBOLT, W/WASHER

main90119-06869iGDH303..H¥60202207-202505

main90119-06869iGDH304..GEN;GDH300,303,320,GRH300,303,320..ARL¥60201902

SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF)

62170CCLIP, CURTAIN SHIELD AIRBAG

main90467-18017iGDH320..RHD..5D..6F..GEN¥180201903

SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF)

main90467-18017iGRH320..ARL;GDH320..6F..ARL¥180201903-202106

62170DAIRBAG ASSY, CURTAIN SHIELD, FRONT RH

main62170-26010iGDH300..TH¥31,000201902

SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF)

main62170-26010iGDH303..H¥31,000202207-202505

main62170-26020iGDH320..RHD..5D..6F..GEN201903

SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF)

62180DAIRBAG ASSY, CURTAIN SHIELD, FRONT LH

main62180-26010iGDH300..TH¥31,000201902

SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF)

main62180-26010iGDH303..H¥31,000202207-202505

main62180-26020iGDH320,GRH320..ARL201903

SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF)

62211GARNISH, FRONT PILLAR, RH

main62210-0L040-B0iGDH322..TH;GDH328..VN201906

LT.GRAY,TRIM1#

main62210-26070-A0iGDH321..N..IDN;GDH301,322,328,GRH301,321,322..N,Q201902-202310

FROMAGE,TRIM0#

main62210-26070-B0iGDH328..PH201903

LT.GRAY,TRIM1#

main62210-26110-A0iGRH304;GDH306..LHD..G201907-202310

FROMAGE,TRIM2#

main62210-26120-A0iGDH304..GEN;GDH303,GRH303..ARL201907

SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),FROMAGE,TRIM2#

main62210-26120-A0iGDH306201907-202505

FROMAGE,TRIM2#

main62210-26140-B0iGDH300..RHD..4D..SP..6FC..GEN201902-202505

LT.GRAY,TRIM1#

main62210-26150-B0iGDH300,320,GRH300,320..ARL201902

LT.GRAY,TRIM1#

main62210-26150-B0iGDH300,320,GRH300,320..ARL201902

SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF),LT.GRAY,TRIM1#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN¥90201902-202505

main90467-T0021iGDH322..TH;GDH328..VN201906

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10167iGDH321..GEN¥90201902-202505

62212GARNISH, FRONT PILLAR, LH

main62220-0L030-B0iGDH322..TH;GDH328..VN201906

LT.GRAY,TRIM1#

main62220-26070-A0iGDH321..N..IDN;GDH301,322,328,GRH301,321,322..N,Q201902-202310

FROMAGE,TRIM0#

main62220-26070-B0iGDH328..PH201903

LT.GRAY,TRIM1#

main62220-26110-A0iGDH303..H;GDH304..TH201907-202310

FROMAGE,TRIM2#

main62220-26120-A0iGDH303..G..GEN;GRH303..LHD..G;GRH303..RHD..GEN;GDH303..LHD..J..GEN201907

SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),FROMAGE,TRIM2#

main62220-26120-A0iGDH306201907-202505

FROMAGE,TRIM2#

main62220-26140-B0iGDH321..D..GEN201902-202505

LT.GRAY,TRIM1#

main62220-26150-B0iGDH300,320,GRH300,320..ARL201902

LT.GRAY,TRIM1#

main62220-26150-B0iGDH300,320,GRH300,320..ARL201902

SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF),LT.GRAY,TRIM1#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-26100iGDH306..RHD;GDH306..LHD..J;GDH301,303,304,GRH301,303,304..G,H,J,N¥6,000201902-202505

main62311-26110iGDH301..RHD..GSOB..6F¥6,100201902-202505

main62311-26120iGDH321..RHD..D;GDH322..SG..D..GEN;GDH322..RHD..GSOB..6F;GDH320,328,GRH32#..D,P;GDH322..P..(ARL,GCC,NZ);GDH322..LHD..SG..P..GEN;GDH322..LHD..GSOB..(D,P)¥6,100201904

EUROPE N1

main62311-26120iGDH322..RHD..P..GEN¥6,100201904-202409

main62311-26130iGDH321..N..GEN¥6,000201908-202310

main62311-VR020iGDH322..TH202409

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-26100iGDH306..RHD;GDH306..LHD..J;GDH301,303,304,GRH301,303,304..G,H,J,N¥6,000201902-202505

main62312-26110iGDH300..5D;GDH300..4D..PSOB;GDH300..LHD..SP..GEN;GDH301..GSOB..6FC..D;GDH300..4D..SP..(ARL,TH);GDH301..LHD..GSOB..6F..D;GDH300..RHD..4D..SP..6F..GEN;GDH301,GRH300,3¥6,100201902-202505

main62312-26120iGDH322..RHD..P..GEN¥6,100201904-202409

main62312-26120iGDH321..RHD..D;GDH322..SG..D..GEN;GDH322..RHD..GSOB..6F;GDH320,328,GRH32#..D,P;GDH322..P..(ARL,GCC,NZ);GDH322..LHD..SG..P..GEN;GDH322..LHD..GSOB..(D,P)¥6,100201904

EUROPE N1

main62312-26130iGDH321..N..GEN¥6,000201908-202310

main62312-VR020iGDH322..TH202409

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-28010iGDH306¥360202207-202505

main62489-28010iGDH304..GEN;GDH300,303,GRH300,303..ARL¥360201902

SRS AIR BAG-W(*DRP & *SKA(DRIVER) & *SSADP & *SCSF)

67923GCLAMP, COWL SIDE TRIM BOARD

main67923-26040iGDH321..GEN¥170201902-202505

16 parts on this diagram · 15 diagrams in section
