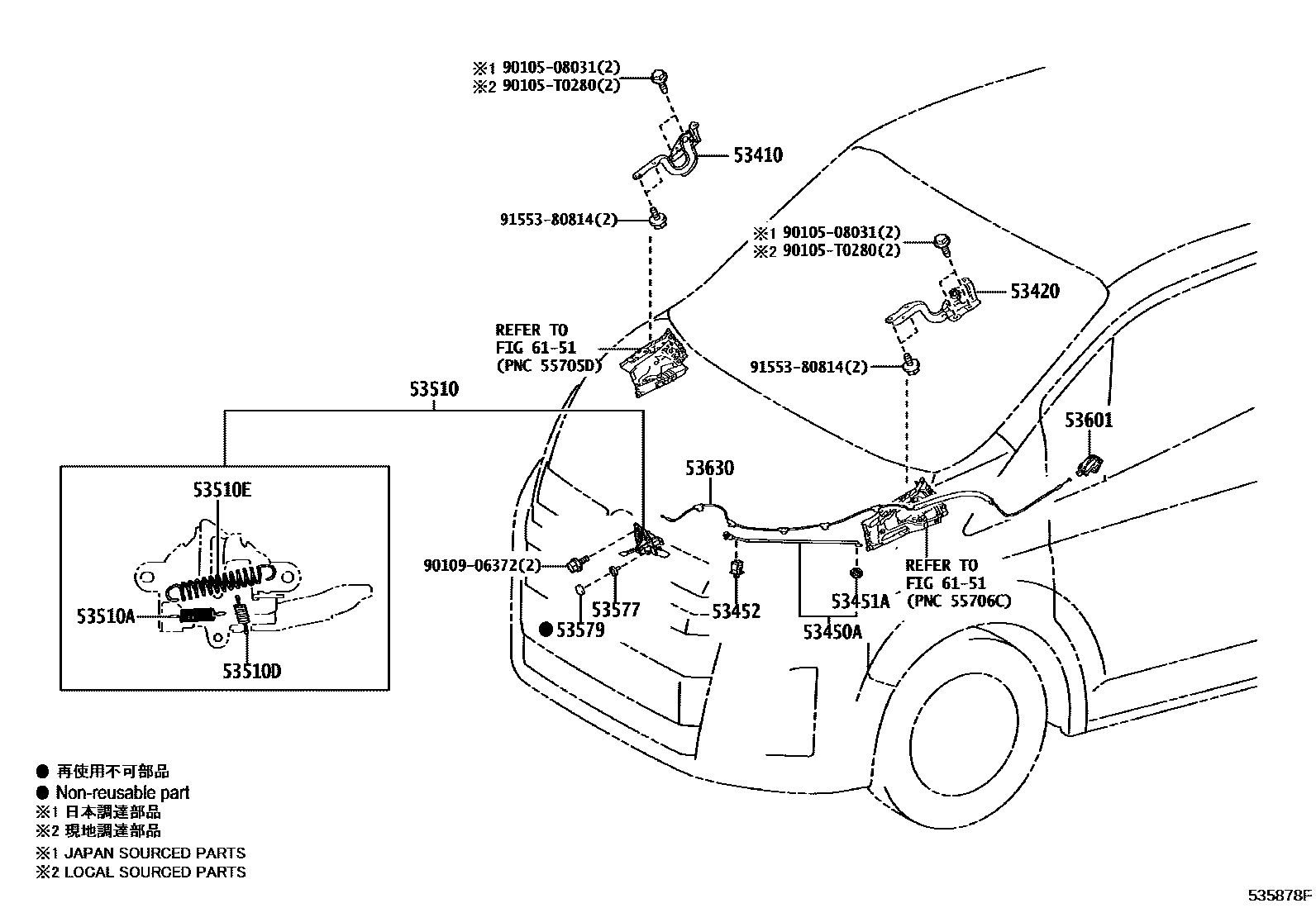

Toyota GRNVA/HIACE/MJSTY — HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-26060iGDH321..GEN¥1,570201902-202505

53420HINGE ASSY, HOOD, LH

main53420-26060iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH300..4D..SP..(ARL,TH);GDH301.¥1,570201902-202505

53450ASUPPORT ASSY, HOOD, LH

main53450-26030iGDH322..RHD..(P,Q)..GEN¥960201902-202505

main53450-26040iGDH306..LHD..G201903-202505

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15034iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH300..4D..SP..(ARL,TH);GDH301.¥110201902-202505

53452HOLDER, HOOD STAY

main53452-26020iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D¥340201902-202505

53510LOCK ASSY, HOOD

main53510-26090iGDH322..RHD..SG..D..GEN;GDH300..5D..(PSOB,SP)..GEN;GDH300,301..RHD..(GSOB,PSOB,SHP)..6FC..GEN;GDH300,322..RHD..4D..(GSOB,PSOB,SP)..6F..(GEN,TH);GDH301,320,321,GRH30201902-202505

main53510-26100iGDH300..SHP..6F..GEN¥2,930202006

main53510-26100iGDH322..6F..Q..GEN¥2,930201902-202005

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main53510-26110iGRH320..LHD..SG201902-202208

main53510-26120iGDH322..6FC..P..GEN;GRH320..LHD..SP..GEN;GDH300,301,320,322,GRH300,301,322..LHD..D..(AGT,GEN)201902-202310

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main53510-26120iGDH306..LHD..G;GDH301,322..GSOB..6F..N201902-202505

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iGDH322..RHD..P..GEN¥90201902-202505

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iGDH322..RHD..P..GEN¥90201902-202505

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iGDH322..RHD..(P,Q)..GEN¥90201902-202505

WD=1.8,CW=13

53577BOLT, HOOD LOCK

main53577-33010iGDH322..RHD..(P,Q)..GEN¥230201902-202505

53579CAP, HOOD LOCK NUT

main53579-50010iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH300..4D..SP..(ARL,TH);GDH301.¥100201902-202505

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-A0iGDH322..Q..ARL;GDH321,322..RHD..N;GDH301..GSOB..6FC..N;GDH322..LHD..6FC..(N,Q);GDH322..LHD..SG..6F..(N,Q);GDH301,328,GRH301,321,322..SG..(N,Q)201902-202505

FROMAGE,TRIM0#

main53601-30100-C0iGDH300..RHD..4D..SP..6FC..GEN201902-202505

BLACK,TRIM1#

main53601-30100-C0iGDH306..LHD..G201907-202505

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0L030iGDH322..TH201906

main53630-0L050iGDH328..VN201906-202111

main53630-26090iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D¥990201902-202505

main53630-26100iGDH306..LHD..G;GDH301,322..GSOB..6F..N201902-202505

6151

9010508031

main90105-08031¥110

90105T0280

main90105-T0280

9010906372

main90109-06372¥60

9155380814

main91553-80814¥80

18 parts on this diagram · 2 diagrams in section
