Toyota GRNVA/HIACE/MJSTY — HEADLAMP

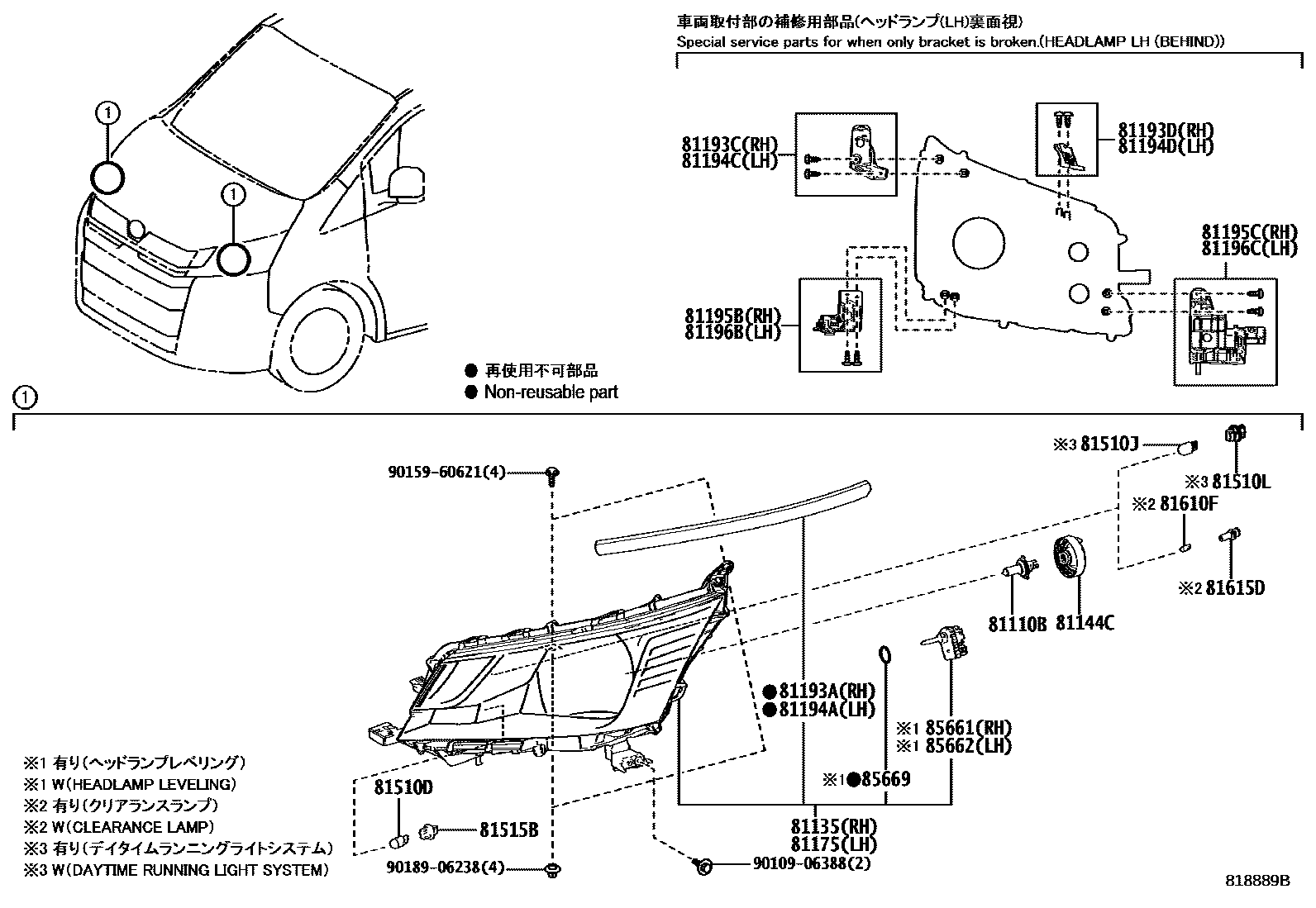

Parts diagram
81110HEADLAMP ASSY, RH
main81110-0L040i201906
main81110-0L070i201906-202111
81110BBULB(FOR HEADLAMP, NO.1)
main90981-13058i¥2,000201902-202505
12V 60/55W,HALOGEN
81135UNIT ASSY, HEADLAMP, RH
main81130-0L040i201906
main81130-0L070i201906-202111
main81130-26A90i¥18,400201902-202505
main81130-26B00i201902-202405
main81130-26B20i202208
DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),BULB
main81130-26B20i202208
CAMBODIA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),BULB
main81130-26B20i202208
TAHITI SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main81130-26B20i201903
MEXICO SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main81130-26B30i201903-202106
main81130-26B40i202208
main81130-26B50i202310
main81130-26B60i201903
main81130-26C40i201902-202405
main81130-26C50i201902-202310
main81130-26C60i201903
main81130-26C60i202405
PAKISTAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED
main81145-26C80i201907
SOUTH AFRICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED,WAGON
main81145-26C80i202405
main81145-26C90i201907
LAOS SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),LED,WAGON
main81145-26C90i201907-202505
main81145-26C90i201907
COSTA RICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED,WAGON
main81145-26C90i201907
PANAMA,HONDURAS,NICARAGUA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED,WAGON
main81145-26C90i201907
EGYPT SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED,WAGON
main81145-26C90i201907
TAIWAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED,WAGON
main81145-26C90i201907
GUATEMALA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED,WAGON
main81145-26C90i201907
MYANMAR SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),LED,WAGON
main81145-26C90i201907
TAHITI SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED,WAGON
main81145-26D10i201907
main81145-26D20i201907-202405
main81145-26D20i201907-202506
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
81144CCOVER, HEADLAMP SOCKET
main90075-65019i¥610201902-202505
81175UNIT ASSY, HEADLAMP, LH
main81170-0L040i201906
main81170-0L070i201906-202111
main81170-26A90i¥18,400201902-202505
main81170-26B00i201902-202405
main81170-26B20i202208
CAMBODIA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),BULB
main81170-26B20i202208
TAHITI SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main81170-26B20i202208
DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),BULB
main81170-26B20i201903
MEXICO SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main81170-26B30i201903-202106
main81170-26B40i202208
main81170-26B50i202310
main81170-26B60i201903
main81170-26C40i201902-202405
main81170-26C50i201902-202310
main81170-26C60i202405
PAKISTAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED
main81170-26C60i201903
main81185-26C80i201907
SOUTH AFRICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED,WAGON
main81185-26C80i202405
main81185-26C90i201907
TAIWAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED,WAGON
main81185-26C90i201907
GUATEMALA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED,WAGON
main81185-26C90i201907
LAOS SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),LED,WAGON
main81185-26C90i201907
MYANMAR SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),LED,WAGON
main81185-26C90i201907
TAHITI SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED,WAGON
main81185-26C90i201907
COSTA RICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED,WAGON
main81185-26C90i201907
PANAMA,HONDURAS,NICARAGUA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED,WAGON
main81185-26C90i201907
EGYPT SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED,WAGON
main81185-26C90i201907-202505
main81185-26D10i201907
main81185-26D20i201907-202506
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main81185-26D20i201907-202405
81193APROTECTOR, HEADLAMP, RH
main81117-26C40i¥740201902-202505
81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH
main81193-26010i¥800201902-202505
81193DRETAINER, RH HEADLAMP PROTECTOR, UPPER LH
main81193-26030i¥550201902-202505
81194APROTECTOR, HEADLAMP, LH
main81157-26C40i¥740201902-202505
81194CRETAINER, LH HEADLAMP PROTECTOR, UPPER RH
main81194-26010i¥800201902-202505
81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH
main81194-26030i¥550201902-202505
81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH
main81195-26010i¥1,560201902-202505
81195CRETAINER, RH HEADLAMP PROTECTOR, LOWER LH
main81195-26030i¥2,650201902-202505
main81195-26050i¥3,190201907-202505
81196BRETAINER, LH HEADLAMP PROTECTOR, LOWER RH
main81196-26010i¥1,560201902-202505
81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH
main81196-26030i¥2,650201902-202505
main81196-26050i¥3,190201907-202505
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
main90981-15021i¥300201902-202505
12V 21W,AMBER
81510JBULB(FOR DAYTIME RUNNING LAMP)
main90981-13088i¥670202208
12V 21/5W,CAMBODIA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),BULB
main90981-13088i¥670202208
12V 21/5W,SAUDI ARABIA SPEC
main90981-13088i¥670201903
12V 21/5W
main90981-13088i¥670202208
12V 21/5W,EGYPT SPEC
main90981-13088i¥670202208
12V 21/5W,BHUTAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),BULB
main90981-13088i¥670202208
12V 21/5W,TAHITI SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main90981-13088i¥670202208
12V 21/5W,DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),BULB
main90981-13088i¥670202208
12V 21/5W,DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main90981-13088i¥670202310
12V 21/5W,NEW CALEDONIA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main90981-13088i¥670201903
12V 21/5W,MEXICO SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main90981-13088i¥670201903
12V 21/5W,SOUTH AFRICA SPEC
main90981-13088i¥670201903
12V 21/5W,BRUNEI SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
81510LSOCKET, DAYTIME RUNNING LAMP
main90075-60086i¥600201903
MEXICO SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main90075-60086i¥600201903
SOUTH AFRICA SPEC
main90075-60086i¥600201903
BRUNEI SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main90075-60086i¥600202208
EGYPT SPEC
main90075-60086i¥600202208
BHUTAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),BULB
main90075-60086i¥600202208
TAHITI SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main90075-60086i¥600202208
DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),BULB
main90075-60086i¥600202208
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main90075-60086i¥600202208
CAMBODIA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),BULB
main90075-60086i¥600202208
SAUDI ARABIA SPEC
main90075-60086i¥600202310
NEW CALEDONIA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
81515BSOCKET, FRONT TURN SIGNAL LAMP
main90075-60028i¥610201902-202505
81610FBULB(FOR CLEARANCE LAMP)
main90981-11069i¥110201902-202505
12V 5W
81615DSOCKET, CLEARANCE LAMP
main90075-60089i¥610201902-202505
85661MOTOR, HEADLAMP LEVELING, RH
main85661-12010i¥3,710202107
GUATEMALA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main85661-12010i¥3,710201903-202106
main85661-12010i¥3,710201903
SOUTH AFRICA SPEC
main85661-12010i¥3,710202107
SOUTH AFRICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED
main85661-12010i¥3,710202107
GUATEMALA SPEC
main85661-12010i¥3,710202107
GHANA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main85661-12010i¥3,710202208
BHUTAN SPEC
main85661-12010i¥3,710202208
BHUTAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),BULB
main85661-12010i¥3,710202208
SAUDI ARABIA SPEC
main85661-12010i¥3,710202310
EGYPT SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED
main85661-12010i¥3,710202405
SOUTH AFRICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main85661-12010i¥3,710202405
TAIWAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main85661-12010i¥3,710202405
PAKISTAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED
main85661-12010i¥3,710202405
PAKISTAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main85661-48050i¥3,710201907
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main85661-48050i¥3,710201907-202505
85662MOTOR, HEADLAMP LEVELING, LH
main85661-12010i¥3,710201903
SOUTH AFRICA SPEC
main85661-12010i¥3,710202405
PAKISTAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main85661-12010i¥3,710201903-202106
main85661-12010i¥3,710202405
SOUTH AFRICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main85661-12010i¥3,710202405
TAIWAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main85661-12010i¥3,710202405
PAKISTAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED
main85661-12010i¥3,710202107
SOUTH AFRICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED
main85661-12010i¥3,710202107
GUATEMALA SPEC
main85661-12010i¥3,710202107
GUATEMALA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main85661-12010i¥3,710202107
GHANA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main85661-12010i¥3,710202208
BHUTAN SPEC
main85661-12010i¥3,710202208
BHUTAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),BULB
main85661-12010i¥3,710202208
SAUDI ARABIA SPEC
main85661-12010i¥3,710202310
EGYPT SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED
main85661-48050i¥3,710201907
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main85661-48050i¥3,710201907-202505
85669PACKING, HEADLAMP LEVELING MOTOR BASE
main90075-99120i¥220202405
SOUTH AFRICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main90075-99120i¥220201903-202106
main90075-99120i¥220201903
SOUTH AFRICA SPEC
main90075-99120i¥220202107
SOUTH AFRICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED
main90075-99120i¥220202107
GUATEMALA SPEC
main90075-99120i¥220202107
GUATEMALA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main90075-99120i¥220202107
GHANA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main90075-99120i¥220202208
BHUTAN SPEC
main90075-99120i¥220202208
BHUTAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),BULB
main90075-99120i¥220202208
SAUDI ARABIA SPEC
main90075-99120i¥220202310
EGYPT SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED
main90075-99120i¥220202405
TAIWAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
main90075-99120i¥220202405
PAKISTAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED
main90075-99120i¥220202405
PAKISTAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
9010906388
main90109-06388¥70
9015960621
main90159-60621¥60
9018906238
main90189-06238¥100

27 parts on this diagram · 3 diagrams in section
