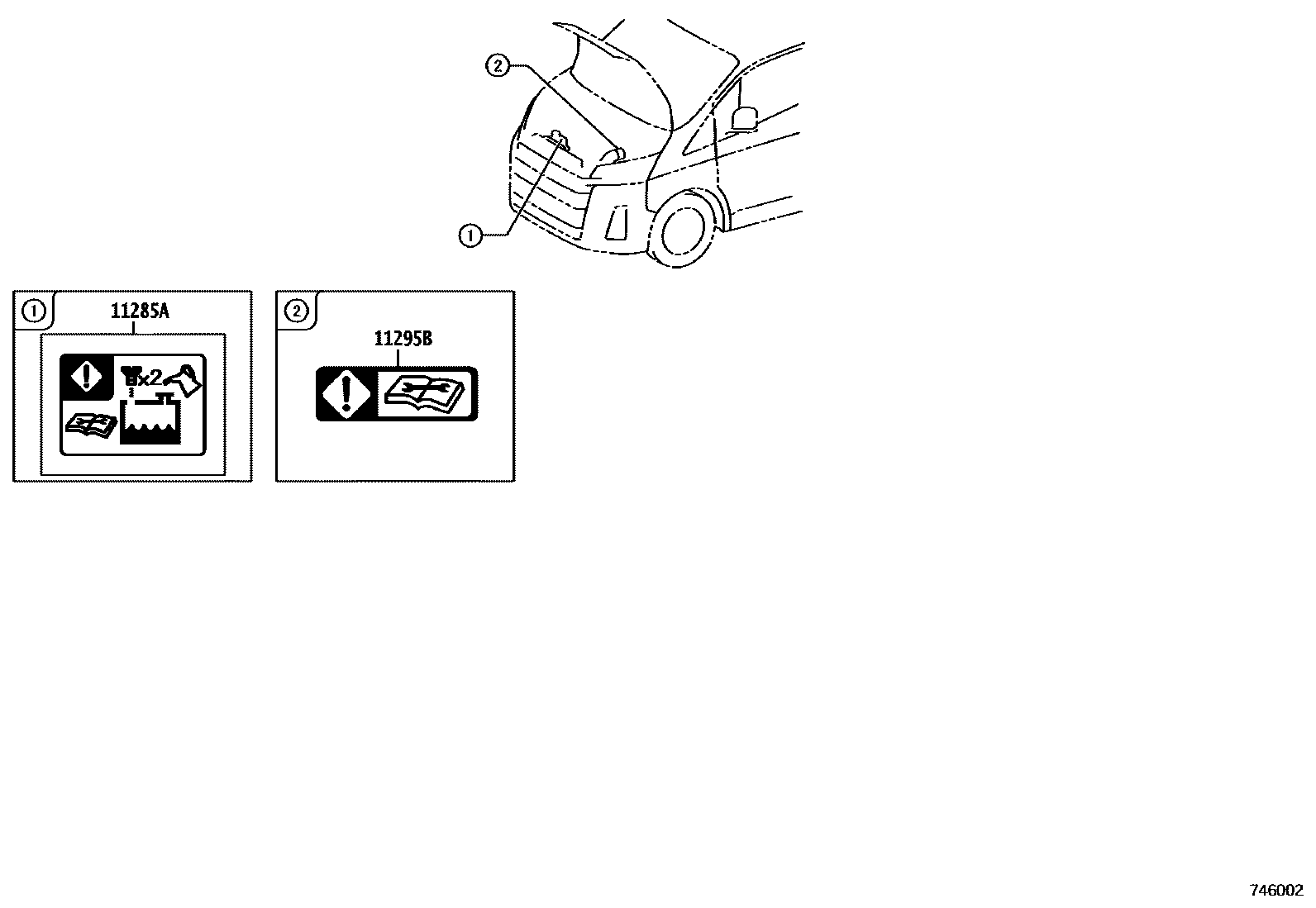

Toyota GRNVA/HIACE/MJSTY — CAUTION PLATE

0001 1ENGINE ROOM 0002 1EXTERIOR(1/3) 0003 1EXTERIOR(2/3) 0004 1EXTERIOR(3/3) 0006 1INTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-11030i1GDFTV..GDH322..6FC..(P,Q)..(GEN,NZ)¥180201902-202002

main11285-11030i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D¥180201902-202401

main11285-11030i1GDFTV..GDH306..LHD..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN¥180201902-202505

main11285-11030i1GDFTV..GDH300..5D;1GDFTV..GDH306,321..RHD;1GDFTV..GDH322..6FC..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH303,304,320,328;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322¥180201902

main11285-11030i1GDFTV..GDH321..GEN¥180201902-202310

11295BLABEL, ENGINE SERVICE NOTICE, NO.1

main11295-11010i1GDFTV..GDH321..GEN201902-202310

main11295-11010i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D201902-202404

main11295-11010i1GDFTV..GDH300..SHP..6F..GEN201902-202405

NEW ZEALAND SPEC&EXHAUST EMISSION CONTROL-DIESEL JAPAN WLTP *699,*680

main11295-11010i1GDFTV..GDH306..LHD..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN201902-202505

main11295-11010i1GDFTV..GDH322..ARL201902-202506

main11295-11010i1GDFTV..GDH322..GCC,NZ;1GDFTV..GDH306,321..RHD;1GDFTV..GDH300..SHP..6FC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV201902

TAIWAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6C *699,*681,W/C,WLTP

main11295-11010i1GDFTV..GDH322..RHD..(P,Q)..GEN202006

main11295-11010i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202005

2 parts on this diagram · 5 diagrams in section
