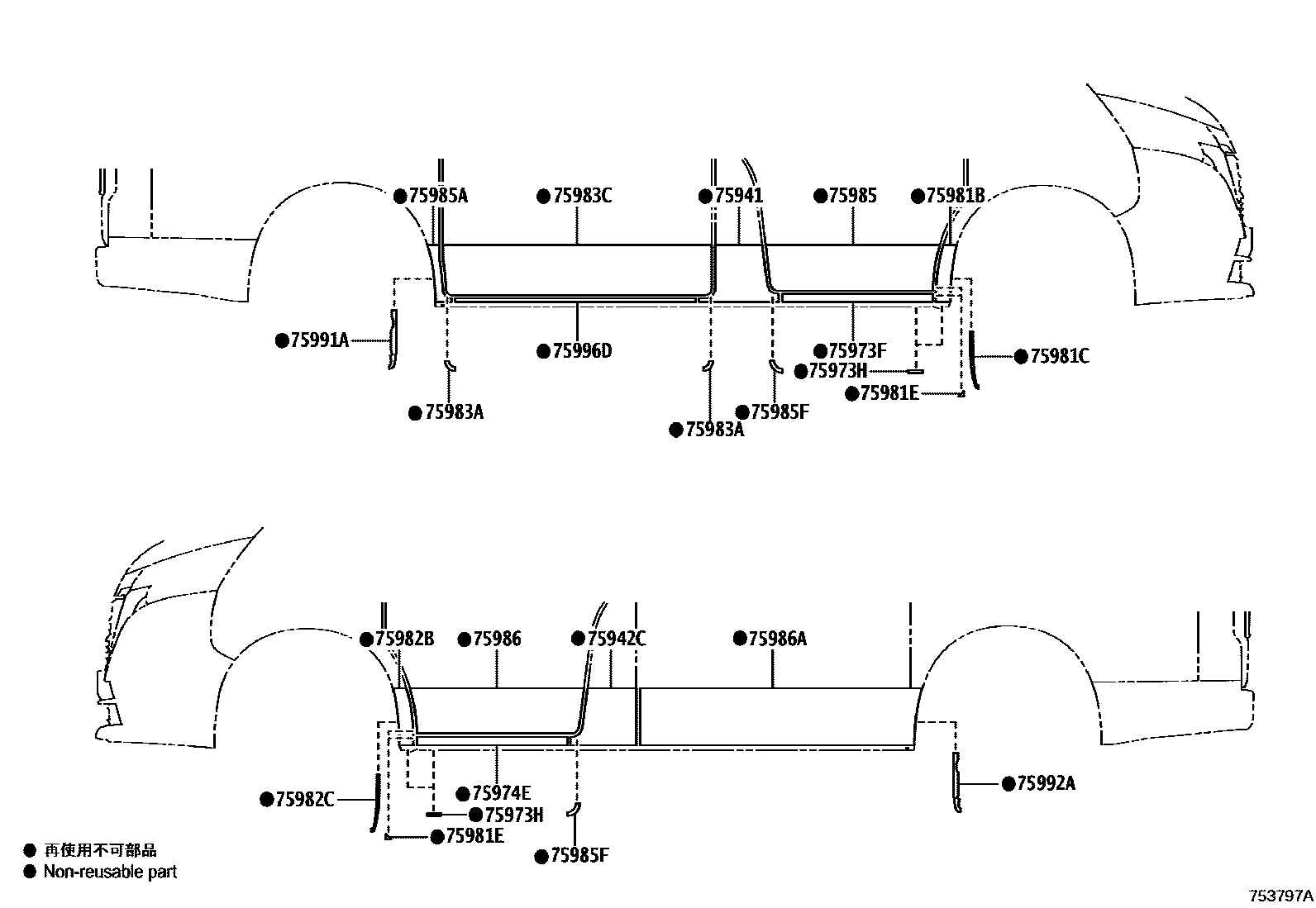

Toyota GRNVA/HIACE/MJSTY — BODY STRIPE

0001 1BODY COLOR-TWO-TONE 0002 1BODY COLOR-TWO-TONE

75941STRIPE, CENTER PILLAR, RH

main75941-26230

75942CSTRIPE, CENTER PILLAR, LH

75973FSTRIPE, FRONT SIDE PANEL, RH

75973HSTRIPE, FRONT FENDER, LOWER

75974ESTRIPE, FRONT SIDE PANEL, LH

75981BSTRIPE, FENDER, RH

75981CSTRIPE, FRONT FENDER, FRONT RH

75981ESTRIPE, FRONT FENDER

75982BSTRIPE, FENDER, LH

75982CSTRIPE, FRONT FENDER, FRONT LH

75983ASTRIPE, SLIDE DOOR

75983CSTRIPE, SLIDE DOOR, RH

75985STRIPE, FRONT DOOR, RH

main75985-26520

main75985-26530

main75985-26540

main75985-26550

75985ASTRIPE, SIDE PANEL, RH

75985FSTRIPE, FRONT DOOR OUTSIDE

75986STRIPE, FRONT DOOR, LH

main75986-26510

main75986-26520

main75986-26530

75986ASTRIPE, SIDE PANEL, LH

75991ASTRIPE, QUARTER, RH

75992ASTRIPE, QUARTER, LH

75996DSTRIPE, REAR BODY, RH

20 parts on this diagram · 2 diagrams in section
