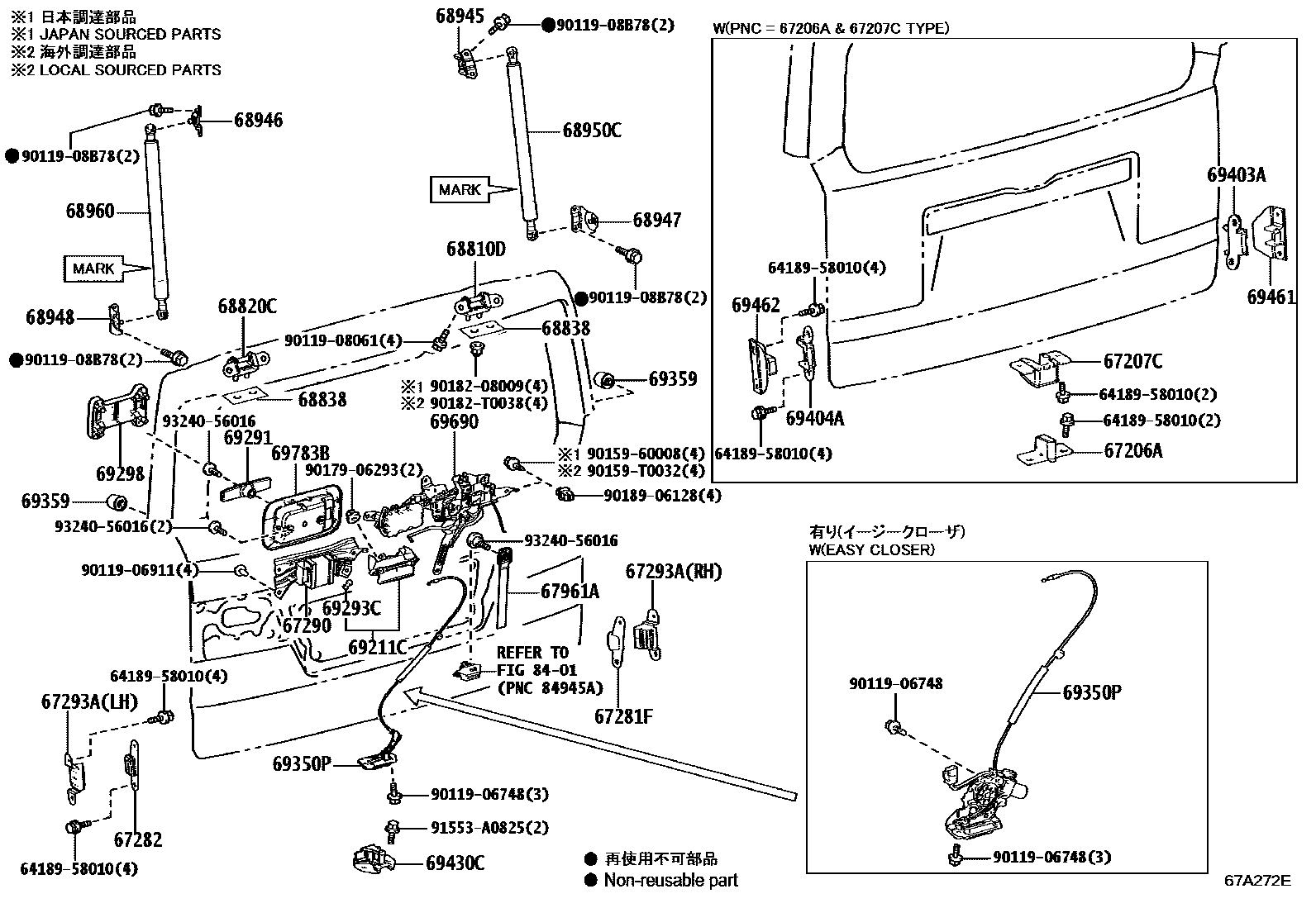

Toyota GRNVA/HIACE/MJSTY — BACK DOOR LOCK & HINGE

0001 1 0002 1 0003 1 0004 1

67206ABRACKET SUB-ASSY, BACK DOOR STOPPER

main67206-26010iGRH322..6F..GCC;GRH300,320..(SG,SHP,SP)..GCC;GDH300,303,320,GRH303..(SG,SP)..6FC..GCC¥1,540201902

ROUGH ROAD AREA SPEC-WITH

main67206-26010iGRH300,303..(SG,SHP)..GCC;GDH300,GRH322..(SG,SP)..6F..(D,P)..GCC¥1,540201902

IRAQ SPEC

main67206-26010iGRH300,303..(SG,SHP)..GCC;GDH300,GRH322..(SG,SP)..6F..(D,P)..GCC¥1,540201902

YEMEN SPEC

67207CSTOPPER SUB-ASSY, BACK DOOR

main67207-95J01iGDH300,301,303,32#,GRH300,303,320,321..(SG,SHP,SP)..(ARL,BZ,NZ)¥1,630201902

YEMEN SPEC

main67207-95J01iGDH300,301,303,32#,GRH300,303,320,321..(SG,SHP,SP)..(ARL,BZ,NZ)¥1,630201902

ROUGH ROAD AREA SPEC-WITH

main67207-95J01iGDH300,301,303,32#,GRH300,303,320,321..(SG,SHP,SP)..(ARL,BZ,NZ)¥1,630201902

IRAQ SPEC

67281FSTOPPER, BACK DOOR, LOWER

main67281-28010iGDH322..RHD..P..GEN¥1,250201902-202505

67282STOPPER, BACK DOOR, NO.1

main67282-28010iGDH322..RHD..P..GEN¥1,250201902-202505

67290DAMPER ASSY, BACK DOOR

main67290-26010iGDH322..Q..GEN201903-202310

main67290-26010iGDH322..SG..N;GDH322..6FC..Q..GEN;GDH320,GRH320..SP..6F;GDH328,GRH321,322..N,Q;GDH321,322..(N,Q)..(ARL,GCC,IDN)201903

EUROPE N1

main67290-26020iGDH306..LHD..G¥6,000201907-202505

main67290-V3010iGDH301..GSOB..N202208

67293ACUSHION, BACK DOOR STOPPER

main67293-58020iGRH320..SP..GCC;GRH320..LHD..SG;GDH322..SG..(D,N);GRH322..SG..(D,P,Q);GDH322..LHD..SG..6F..(P,Q);GDH320,322..(SG,SP)..6FC..GCC;GDH320,321..RHD..(SG,SP)..D..(GEN,IDN¥760201902-202505

main67293-58020iGDH321..GEN¥760202308-202310

(J)

main67293-VR010iGDH321..RHD..(GEN,IDN);GDH320,322,328,GRH32#..(SG,SP)..(AGT,GCC,GEN,PH,TH)202308-202310

(L)

67961ASTRAP, BACK DOOR PULL

main67961-26060-C1iGDH322..SG..N;GDH322..6FC..Q..GEN;GDH321,322..(N,Q)..(ARL,GCC,IDN);GDH301,328,GRH301,321,322..SG..(N,Q)201902-202505

BLACK,TRIM1#

main67961-26060-C1iGDH322..RHD..P..GEN201902-202310

BLACK,TRIM0#

main67961-26060-C1iGDH306..LHD..G201907-202505

BLACK,TRIM2#

68810DHINGE ASSY, BACK DOOR, RH

main68810-26011iGDH322..RHD..(P,Q)..GEN¥1,690201902-202209

sub68810-26030¥1,530

main68810-26030iGDH321..GEN¥1,530202209-202505

main68810-V3010iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D202208-202404

68820CHINGE ASSY, BACK DOOR, LH

main68820-26011iGDH322..RHD..(P,Q)..GEN¥1,690201902-202209

sub68820-26030¥1,530

main68820-26030iGDH321..GEN¥1,530202209-202505

main68820-V3010iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D202208-202404

68838PAD, BACK DOOR HINGE, NO.1

main68838-26030iGDH321..GEN¥160201906-202505

T=1.1

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-26080iGDH300..RHD..4D..SP..6FC..GEN¥400201902-202505

main68945-26100iGDH321..GEN201903-202310

main68945-26110iGDH306..LHD..G¥480201907-202505

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-26080iGDH300..LHD..SP..GEN;GDH300..5D..(SG,SHP,SP);GDH300..4D..SP..(ARL,TH);GDH301,GRH300,301..SG,SHP,SP;GDH300..RHD..4D..SP..6F..GEN¥400201902-202505

main68946-26100iGDH321..GEN201903-202310

main68946-26110iGDH306..LHD..G¥480201907-202505

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-26050iGDH300..LHD..SP..GEN;GDH300..5D..(SG,SHP,SP);GDH300..4D..SP..(ARL,TH);GDH301,GRH300,301..SG,SHP,SP;GDH300..RHD..4D..SP..6F..GEN¥610201902-202505

main68947-26060iGDH321..GEN201903-202310

main68947-26070iGDH306..LHD..G¥700201907-202505

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-26050iGDH300..RHD..4D..SP..6FC..GEN¥610201902-202505

main68948-26060iGDH322..RHD..(P,Q)..GEN201903-202310

main68948-26070iGDH306..LHD..G¥700201907-202505

68950CSTAY ASSY, BACK DOOR, RH

main68950-26130iGDH322..SG..N;GDH322..6FC..Q..GEN;GDH320,GRH320..SP..6F;GDH328,GRH321,322..N,Q;GDH321,322..(N,Q)..(ARL,GCC,IDN)201903-202310

main68950-26360iGDH300..RHD..4D..SP..6FC..GEN201902-202505

main68950-26380iGRH322..LHD..6FC..GEN202208

MONGOLIA SPEC&COLD AREA SPEC(-20C AREA)

main68950-26380iGDH322..LHD..SG..6F..P..GEN201903

main68950-26400iGDH322..RHD..P..GEN201903-202208

main68950-26400iGDH321..D..GEN201903-202310

GEORGIA SPEC

main68950-26410iGDH306..LHD..J¥8,500201907-202505

main68950-26420iGRH303..LHD..J..GEN¥8,500201907-202208

68960STAY ASSY, BACK DOOR, LH

main68950-26360iGDH300..LHD..SP..GEN;GDH300..5D..(SG,SHP,SP);GDH300..4D..SP..(ARL,TH);GDH301,GRH300,301..SG,SHP,SP;GDH300..RHD..4D..SP..6F..GEN201902-202505

main68950-26410iGDH306..LHD..J¥8,500201907-202505

main68950-26420iGRH303..GCC;GRH303..LHD..G;GDH303,304,GRH304;GDH306,GRH303..RHD¥8,500201907-202208

main68960-26130iGDH322..6F..Q..GEN201903-202310

main68960-26380iGDH322..LHD..SG..6F..P..GEN201903

main68960-26380iGRH322..LHD..6FC..GEN202208

MONGOLIA SPEC&COLD AREA SPEC(-20C AREA)

main68960-26400iGRH322..LHD..6FC..D201903-202208

main68960-26400iGDH321..D..GEN201903-202310

GEORGIA SPEC

69211CHANDLE, BACK DOOR OUTSIDE

main69023-26040iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN¥2,780201902-202505

main69211-26020iGDH301..GSOB..6FC..D;GDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F;GDH301..LHD..GSOB..6F..D;GDH300,320,GRH300,320,322..GSOB,HPSOB,PSOB¥1,620202208-202404

main69211-33120-A2iGDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F;GDH300,320,GRH300,320,322..GSOB,HPSOB,PSOB202208

GL PACKAGE,WHITE,058

main69211-33120-A2iGDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F;GDH300,320,GRH300,320,322..GSOB,HPSOB,PSOB202208

WHITE,058

main69211-33120-B2iGDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F;GDH300,320,GRH300,320,322..(GSOB,HPSOB,PSOB)..(ARL,GCC,GEN)202208

SILVER M.M.,1E7

main69211-33120-B2iGDH322..LHD..GSOB..D;GDH322..RHD..GSOB..6F;GDH300,320,GRH300,320,322..(GSOB,HPSOB,PSOB)..(ARL,GCC,GEN)202208

GL PACKAGE,SILVER M.M.,1E7

main69211-33120-E3iGDH322..GSOB..(N,P)202209

BEIGE ME.,4R4

main69211-33120-E3iGDH322..GSOB..(N,P)202209

GL PACKAGE,BEIGE ME.,4R4

69291HANDLE ASSY, BACK DOOR INSIDE

main69291-95J00-C0iGDH321..RHD..D;GDH301..GSOB..6FC..D;GDH322..RHD..GSOB..6F;GDH322..P..(ARL,GCC,NZ);GDH322..LHD..SG..P..GEN;GDH301..LHD..GSOB..6F..D;GDH300,GRH300..HPSOB,SHP;GDH322..201902-202404

BLACK,TRIM1#

sub69291-95J00¥760

main69291-95J00-C0iGDH322..RHD..P..GEN201902-202310

BLACK,TRIM01

sub69291-95J00¥760

main69291-95J00-C0iGDH303,304,GRH303..GCC,TH201907

BLACK,TRIM2#

sub69291-95J00¥760

main69291-95J00-E2iGDH322..SG..N..GEN;GDH322..6FC..Q..GEN;GDH322..Q..(ARL,GCC);GDH301,328,GRH301,321,322..SG..(N,Q)201902-202310

ORCHID BROWN,TRIM01

sub69291-95J00¥760

main69291-95J00-E2iGDH322..Q..GEN202006

ORCHID BROWN,TRIM0#

sub69291-95J00¥760

69293HANDLE, BACK DOOR

main69291-26011iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D¥740202208-202404

69293CSNAP, BACK DOOR HANDLE

main69293-12030iGDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH322..RHD..GSOB..N;GDH322..RHD..GSOB..6F;GDH301..LHD..GSOB..6F;GDH300,320,GRH300,320,322..GSOB,HPSOB,PSOB¥160202208-202404

main69293-12060iGDH321..GEN¥200202007-202505

69298COVER, BACK DOOR INSIDE HANDLE

main69298-26011iGDH321..6FC..GEN;GDH322,GRH322..ARL,GCC;GDH322..LHD..6F..P..GEN201903-202106

69350LOCK ASSY, BACK DOOR

main65780-V3010iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D¥4,580202208-202409

sub65780-V3011

sub69311-V3010

sub69690-V3011

sub69690-V3021

sub69690-V3031

sub69690-V3041

main65780-V3011iGDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH322..RHD..GSOB..N;GDH322..RHD..GSOB..6F;GDH301..LHD..GSOB..6F;GDH300,320,GRH300,320,322..GSOB,HPSOB,PSOB202409

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-26170iGDH322..RHD..(P,Q)..GEN¥4,250201902-202505

main69350-26180iGDH303,304,306,GRH303,304¥14,900201907-201912

main69350-26190iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304¥14,900201912-202505

69359CUSHION, BACK DOOR LOCK

main90541-09124iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D¥100202208-202404

main90541-09136iGDH306,321..RHD;GDH322..ARL,GCC,NZ;GDH300..5D..(SG,SHP,SP);GDH300..4D..SP..(ARL,TH);GDH322..LHD..SG..(P,Q)..GEN;GDH300..RHD..4D..SP..6F..GEN;GDH322..SG..(D,N)..(AGT¥160201902-202505

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main69403-26060iGDH321..RHD..(GEN,IDN);GDH322..LHD..SG..(P,Q)..GEN;GDH322..SG..(D,N)..(AGT,GEN);GDH300..RHD..4D..SP..6F..GEN;GDH300,306..LHD..(SG,SP)..(D,J)..GEN;GDH300,306..RHD..5¥760201902

YEMEN SPEC

main69403-26060iGDH300,301,303,32#,GRH300,303,320,321..(SG,SHP,SP)..(ARL,BZ,NZ)¥760201902

IRAQ SPEC

main69403-26060iGDH300,301,303,32#,GRH300,303,320,321..(SG,SHP,SP)..(ARL,BZ,NZ)¥760201902

ROUGH ROAD AREA SPEC-WITH

main69403-V3010iGDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH322..RHD..GSOB..N;GDH322..RHD..GSOB..6F;GDH301..LHD..GSOB..6F;GDH300,320,GRH300,320,322..GSOB,HPSOB,PSOB¥740202208-202404

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main69404-26010iGDH321..RHD..(GEN,IDN);GDH322..LHD..SG..(P,Q)..GEN;GDH322..SG..(D,N)..(AGT,GEN);GDH300..RHD..4D..SP..6F..GEN;GDH300,306..LHD..(SG,SP)..(D,J)..GEN;GDH300,306..RHD..5¥760201902

IRAQ SPEC

main69404-26010iGDH300,301,303,32#,GRH300,303,320,321..(SG,SHP,SP)..(ARL,BZ,NZ)¥760201902

YEMEN SPEC

main69404-26010iGDH300,301,303,32#,GRH300,303,320,321..(SG,SHP,SP)..(ARL,BZ,NZ)¥760201902

ROUGH ROAD AREA SPEC-WITH

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-95J00iGDH322..RHD..(P,Q)..GEN¥2,640201902-202505

69461STOPPER, BACK DOOR SIDE MALE, RH

main69401-26040iGDH300,301,303,32#,GRH300,303,320,321..(SG,SHP,SP)..(ARL,BZ,NZ)201902

IRAQ SPEC

main69401-26040iGDH300,301,303,32#,GRH300,303,320,321..(SG,SHP,SP)..(ARL,BZ,NZ)201902

YEMEN SPEC

main69401-26040iGDH300,301,303,32#,GRH300,303,320,321..(SG,SHP,SP)..(ARL,BZ,NZ)201902

ROUGH ROAD AREA SPEC-WITH

69462STOPPER, BACK DOOR SIDE MALE, LH

main69402-26020iGRH300,303..(SG,SHP)..GCC;GDH300,GRH322..(SG,SP)..6F..(D,P)..GCC201902

YEMEN SPEC

main69402-26020iGDH300,301,303,32#,GRH300,303,320,321..(SG,SHP,SP)..(ARL,BZ,NZ)201902

IRAQ SPEC

main69402-26020iGDH300,301,303,32#,GRH300,303,320,321..(SG,SHP,SP)..(ARL,BZ,NZ)201902

ROUGH ROAD AREA SPEC-WITH

main69462-26020iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D¥370202208-202404

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-26260iGDH322..RHD..P..GEN201902-202405

main69690-26270iGDH306..LHD..G¥13,900201907-202505

main69690-26280iGRH320..LHD..SP;GRH320..RHD..GEN;GDH300..LHD..SP..GEN;GDH300..5D..SP..(GCC,GEN);GDH300..RHD..4D..SP..6F..(GEN,TH);GDH320,GRH300..(SG,SP)..(GCC,GEN)201902-202505

main69690-26310iGDH303,304,GRH303..GCC,TH201907

main69690-26320iGRH320..RHD..GEN;GDH300..5D..SP..GEN;GDH300,GRH320..LHD..SP..GEN;GDH320,GRH300..(SG,SP)..GEN;GDH300..RHD..4D..SP..6F..(GEN,TH)201902

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main69690-26320iGRH320..GEN202208

main69690-26330iGDH322..6F..Q..GEN201902-202310

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main69690-26330iGDH322..Q..GEN202006

main69690-V3010iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D¥11,400202208-202409

sub69690-V3011

sub65780-V3011

sub69311-V3010

main69690-V3011iGDH301..GSOB..6FC..D;GDH322..RHD..GSOB..6F;GDH322..LHD..GSOB..(D,P);GDH301,GRH300,322..LHD..(GSOB,HPSOB)..6F..D202409

main69690-V3020iGDH300,320,GRH300,320..(GSOB,PSOB)..(AGT,GCC,GEN)202208-202410

sub69690-V3021

sub65780-V3011

sub69311-V3010

main69690-V3021iGDH300,320,GRH300,320..(GSOB,PSOB)..(AGT,GCC,GEN)202410

main69690-V3030iGDH300,320..(GSOB,PSOB)..(ARL,BZ)202208-202410

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

sub69690-V3031

sub65780-V3011

sub69311-V3010

main69690-V3031iGDH300,320..(GSOB,PSOB)..(AGT,GEN)202410

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main69690-V3040iGDH300..HPSOB;GDH301,322..GSOB..N202208-202410

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main69690-V3041iGDH300..HPSOB;GDH301,322..GSOB..N202410

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

69783BBEZEL, BACK DOOR INSIDE HANDLE

main69027-26010-C0iGDH321..6FC..GEN;GDH322..LHD..SG..6F..P..GEN;GDH322,GRH321,322..P..(ARL,GCC,NZ)201903

BLACK,TRIM01

main69027-26010-C0iGDH321..6FC..GEN;GDH322..LHD..SG..6F..P..GEN;GDH322,GRH321,322..P..(ARL,GCC,NZ)201903

BLACK,TRIM1#

main69027-26010-E0iGDH322,GRH321,322..Q..(ARL,GCC)201903

ORCHID BROWN,TRIM01

main69783-26010-C0iGDH321..D..(IDN,NZ);GDH322..6FC..P..GEN;GDH328,GRH301,322..D;GDH301..GSOB..6FC..D;GDH322..RHD..GSOB..6F;GDH322..LHD..GSOB..(D,P);GDH301..LHD..GSOB..6F..D;GDH300,GRH201902-202404

BLACK,TRIM1#

sub69783-26010¥3,160

main69783-26010-C0iGDH322..SG..N..GEN;GDH322..6FC..Q..GEN;GDH301,328,GRH301,321,322..SG..(N,Q)..(GEN,PH)201902-202310

BLACK,TRIM01

sub69783-26010¥3,160

main69783-26010-E0iGDH322..SG..N..GEN;GDH322..6FC..Q..GEN;GDH301,328,GRH301,321,322..SG..(N,Q)..(GEN,PH)201902-202310

ORCHID BROWN,TRIM01

sub69783-26010¥3,160

main69783-26010-E0iGDH322..Q..GEN202006

ORCHID BROWN,TRIM0#

sub69783-26010¥3,160

main69783-26030-C0iGDH303,304,GRH303..GCC,TH201907

BLACK,TRIM2#

8401

6418958010CLAMP, BACK PANEL SILENCER

main64189-58010¥470

9011906748

main90119-06748¥110

9011906911

main90119-06911¥80

9011908061

main90119-08061¥70

9011908B78

main90119-08B78¥80

9015960008

main90159-60008¥70

90159T0032

main90159-T0032

9017906293

main90179-06293¥90

9018208009

main90182-08009¥100

90182T0038

main90182-T0038

9018906128

main90189-06128¥80

91553A0825

main91553-A0825¥130

9324056016

main93240-56016¥110

45 parts on this diagram · 4 diagrams in section
