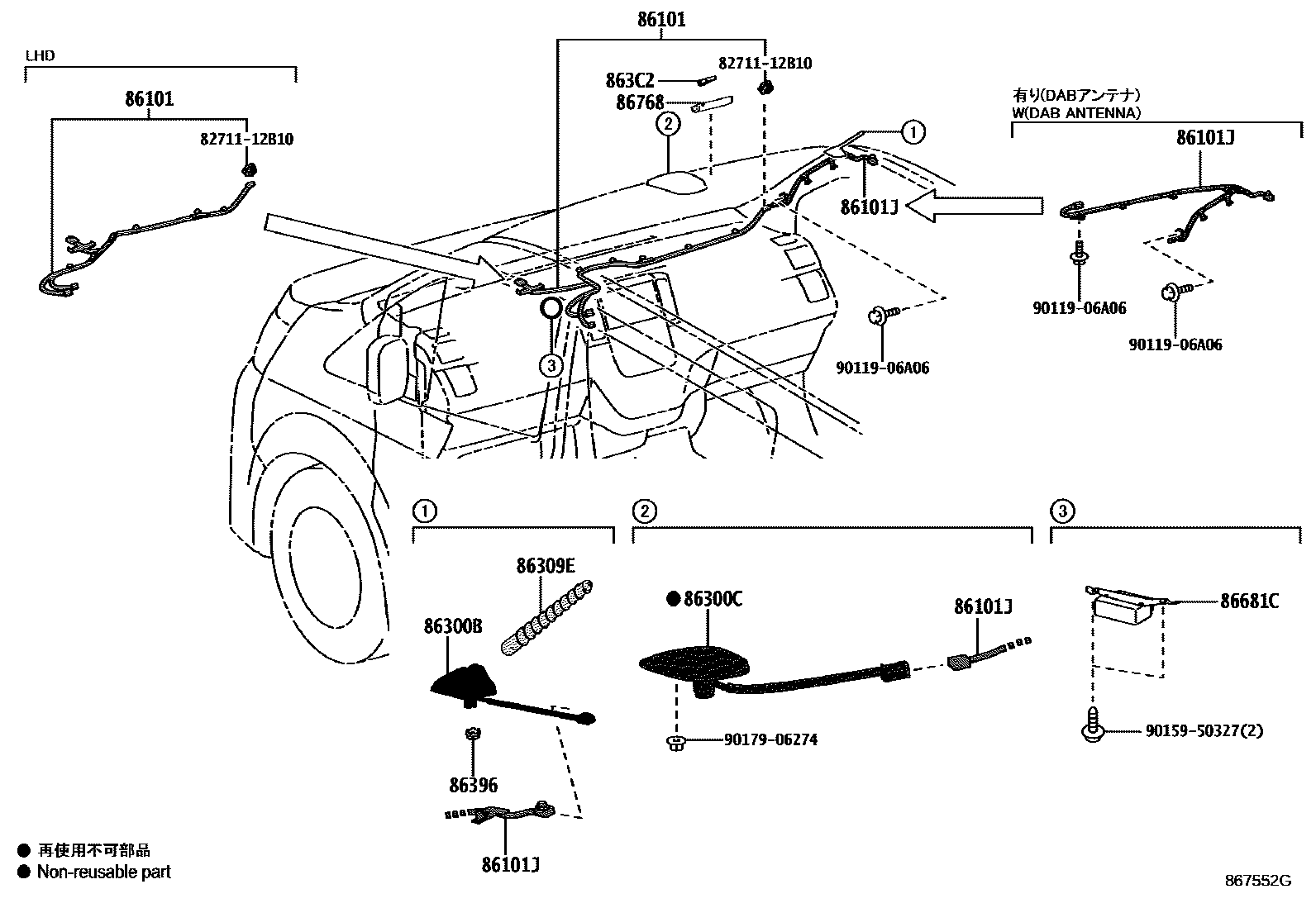

Toyota GRNVA/HIACE/MJSTY — ANTENNA

0001 1 0002 1 0003 1

86101CORD SUB-ASSY, ANTENNA

main86101-0L040iGDH322..TH201906

main86101-0L050iGDH328..VN201906-202111

sub86101-26400

main86101-26360iGDH300..GSOB;GDH320..6F..ARL;GDH301,321,322..NZ;GDH300..4D..6F..ARL;GRH300,303,320,321..ARL¥4,970201902-202310

main86101-26360iGDH301,322,GRH322..RHD..6F..N;GDH303,GRH303..RHD..(G,J)..GEN¥4,970201902-202107

SOUTH AFRICA SPEC&AUDIO-*DA(DVD & CD & *BT)

main86101-26370iGRH301..N202208-202310

AUDIO-*DA & CD & *BT

main86101-26370iGDH301..RHD..N202208-202310

FIJI SPEC&AUDIO-*DA & CD & *BT

main86101-26370iGRH301..N202208-202310

BANGLADESH SPEC&AUDIO-*DA(DVD & CD & *BT)

main86101-26370iGRH301..N202208-202310

PAPUA NEW GUINEA SPEC&AUDIO-*DA & CD & *BT

main86101-26370iGDH322..RHD..SG..6FC..N202208-202310

AUDIO-*DA(DVD & CD & *BT & 17CY PLUS)

main86101-26370iGDH306..RHD201907-202310

main86101-26380iGDH300..RHD..4D..SP..6FC..GEN201902-202505

main86101-26390iGDH300,320..LHD..(PSOB,SP)..6FC..GEN202107-202310

GUATEMALA SPEC&AUDIO-*DA(DVD & CD & *BT & 17CY PLUS)

main86101-26390iGDH300,320..LHD..(PSOB,SP)..6FC..GEN202107-202310

PERU SPEC&AUDIO-*DA(DVD & CD & *BT & 17CY PLUS)

main86101-26390iGDH300,320..LHD..(PSOB,SP)..6FC..GEN202107-202310

ARGENTINA SPEC&AUDIO-*DA(DVD & CD & *BT & 17CY PLUS)

main86101-26390iGDH300,320..LHD..(PSOB,SP)..6FC..GEN202107-202310

CHILE SPEC&AUDIO-*DA(DVD & CD & *BT & 17CY PLUS)

main86101-26390iGDH300,320..LHD..(PSOB,SP)..6FC..GEN202107-202310

COSTA RICA SPEC&AUDIO-*DA(DVD & CD & *BT & 17CY PLUS)

main86101-26390iGDH300,320..LHD..(PSOB,SP)..6FC..GEN202107-202310

EGYPT SPEC&AUDIO-*DA(DVD & CD & *BT & 17CY PLUS)

main86101-26390iGDH300,320..LHD..(PSOB,SP)..6FC..GEN202107-202310

TAIWAN SPEC&AUDIO-AVN(DVD & CD & *BT & 17CY PLUS)

main86101-26390iGDH301..LHD..SG..6F..N202107-202310

AUDIO-*DA(DVD & CD & *BT & 17CY PLUS)

main86101-26390iGDH301..LHD..SG..6F..N202107-202310

AUDIO-AVN(DVD & CD & *BT & 17CY PLUS)

main86101-26390iGDH320,322..AGT202107-202506

main86101-26400iGDH301..LHD..D;GDH322..P..GCC;GRH320..LHD..5D;GDH301..LHD..6F..N;GDH322..6FC..P..GEN;GDH301..GSOB..6FC..N;GDH322..LHD..(D,N,Q)..(GCC,GEN);GDH300,303,320,328,GRH300,201902-202310

main86101-26470iGDH306..LHD..G201907-202107

TAIWAN SPEC&AUDIO-AVN(DVD & CD & *BT)

main86101-26470iGDH306..LHD201907-202107

ARGENTINA SPEC&AUDIO-AVN(DVD & CD & *BT)

main86101-26470iGDH306..LHD201907-202107

RUSSIA SPEC&AUDIO-AVN(CD&*BT)

main86101-26470iGDH306..LHD201907-202107

KAZAKHSTAN SPEC&AUDIO-AVN(CD&*BT)

main86101-26470iGDH306..LHD201907-202107

UKRAINE SPEC&AUDIO-AVN(CD&*BT)

main86101-26500iGDH322..LHD..6F..P..GEN201903-202107

main86101-V3020iGDH300,303,320,322..ARL202107-202208

main86101-V3040iGDH322..LHD..P..GEN202107

main86101-V3050iGDH306..G202107-202310

RUSSIA SPEC&AUDIO-AVN(CD&*BT)

main86101-V3050iGDH306..G202107-202310

ARGENTINA SPEC&AUDIO-AVN(DVD & CD & *BT)

main86101-V3050iGDH306..G202107-202310

TAIWAN SPEC&AUDIO-AVN(DVD & CD & *BT)

main86101-V3050iGDH306..G202107-202310

UKRAINE SPEC&AUDIO-AVN(CD&*BT)

main86101-V3050iGDH306..G202107-202310

KAZAKHSTAN SPEC&AUDIO-AVN(CD&*BT)

main86101-V3080iGDH303,322..ARL;GDH300,320..(PSOB,SHP,SP)..ARL¥6,600202208-202310

main86101-V3090iGDH301..RHD..6FC..N;GDH322..RHD..GSOB..N;GDH301..RHD..SG..D..(GEN,TH);GDH300..5D..(HPSOB,PSOB,SP)..GEN;GDH300,322..RHD..4D..(GSOB,PSOB,SP)..6F;GDH300,301..RHD..(GSO202310

FIJI SPEC&AUDIO-*DA(*BT & 21CY)

main86101-V3090iGDH301..RHD..6FC..N202310

AUDIO-*DA(*BT & 21CY)

main86101-V3090iGDH301..RHD..6FC..N202310

AUDIO-EDA(*BT)

main86101-V3090iGDH304..TH202310

AUDIO-AVN(*BT & 21CY)

main86101-V3090iGDH304..TH202310

PAPUA NEW GUINEA SPEC&AUDIO-*DA(*BT & 21CY)

main86101-V3100iGDH320..5D..ARL;GDH300..SHP..ARL¥4,520202310

SOUTH AFRICA SPEC&AUDIO-AVN(*BT & 21CY)

main86101-V3100iGDH320..5D..ARL;GDH300..SHP..ARL¥4,520202310

NEW ZEALAND SPEC

main86101-V3110iGDH303,322..ARL;GDH300,320..(PSOB,SHP,SP)..ARL¥6,000202310

main86101-V3120iGDH300..SHP..6F..GEN202310-202405

SOUTH AFRICA SPEC&AUDIO-EDA(*BT)

main86101-V3150iGRH300,320..HPSOB,PSOB202310

MEXICO SPEC&AUDIO-*DA(*BT & 21CY)

main86101-V3150iGDH301..LHD..SG..6FC..N;GDH303,304,328,GRH320,321..LHD..(D,H,N,Q)..(GEN,PH)202310

AUDIO-EDA(*BT)

main86101-V3150iGDH301..LHD..SG..6FC..N;GDH303,304,328,GRH320,321..LHD..(D,H,N,Q)..(GEN,PH)202310

AUDIO-*DA(*BT & 21CY)

main86101-V3150iGDH301..LHD..SG..6FC..N;GDH303,304,328,GRH320,321..LHD..(D,H,N,Q)..(GEN,PH)202310

AUDIO-AVN(*BT & 21CY)

main86101-V3150iGDH301..LHD..SG..6FC..N;GDH303,304,328,GRH320,321..LHD..(D,H,N,Q)..(GEN,PH)202310

TAIWAN SPEC&AUDIO-*DA(*BT & 21CY)

main86101-V3150iGDH301..LHD..SG..6FC..N;GDH303,304,328,GRH320,321..LHD..(D,H,N,Q)..(GEN,PH)202310

EGYPT SPEC&AUDIO-*DA(*BT & 21CY)

main86101-V3150iGDH301..LHD..SG..6FC..N;GDH303,304,328,GRH320,321..LHD..(D,H,N,Q)..(GEN,PH)202310

OMAN SPEC&AUDIO-EDA(*BT)

main86101-V3150iGDH301..LHD..SG..6FC..N;GDH303,304,328,GRH320,321..LHD..(D,H,N,Q)..(GEN,PH)202310

NEW CALEDONIA SPEC&AUDIO-*DA(*BT & 21CY)

main86101-V3150iGDH301..LHD..SG..6FC..N;GDH303,304,328,GRH320,321..LHD..(D,H,N,Q)..(GEN,PH)202310

TAHITI SPEC&AUDIO-*DA(*BT & 21CY)

main86101-V3160iGDH306202310-202505

TAIWAN SPEC&AUDIO-AVN(DVD & CD & *BT)

main86101-V3160iGDH306202310-202505

KAZAKHSTAN SPEC&AUDIO-AVN(CD&*BT)

main86101-V3160iGDH306202310-202505

UKRAINE SPEC&AUDIO-AVN(CD&*BT)

main86101-V3160iGDH306202310-202505

ARGENTINA SPEC&AUDIO-AVN(DVD & CD & *BT)

main86101-V3160iGDH306202310-202505

RUSSIA SPEC&AUDIO-AVN(CD&*BT)

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0L060iGDH322..TH;GDH328..VN201906

main86101-26410iGDH301..NZ;GDH300..GSOB201902-202506

main86101-26410iGDH300..SHP..6F..GEN202310-202405

SOUTH AFRICA SPEC&AUDIO-AVN(*BT & 21CY)

main86101-26410iGDH301..RHD..6F..N202310-202405

SOUTH AFRICA SPEC&AUDIO-EDA(*BT)

main86101-26410iGDH300,303..5D..ARL;GDH300..4D..6FC..ARL201902-202107

SOUTH AFRICA SPEC&AUDIO-*DA(DVD & CD & *BT)

main86101-26420iGDH306..LHD..G201907-202505

KAZAKHSTAN SPEC&AUDIO-AVN(CD&*BT)

main86101-26420iGDH306..LHD201907-202505

RUSSIA SPEC&AUDIO-AVN(CD&*BT)

main86101-26430iGDH301..RHD..6F..N201902-202505

main86101-26440iGDH320..SG..ARL¥4,980201903-202506

main86101-26440iGDH322,GRH322..RHD..6F..N¥4,980201903-202107

SOUTH AFRICA SPEC&AUDIO-*DA(DVD & CD & *BT)

main86101-26450iGDH322..LHD..6F..P..GEN201903

main86101-26460iGDH322..RHD..GSOB..6FC..D201903-202404

main86101-26460iGDH321..GEN201903-202310

GEORGIA SPEC

main86101-V3010iGDH300..SG202107-202505

main86101-V3030iGDH320..SG..ARL202107-202505

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0L020iGDH322..TH;GDH328..VN201906

main86300-26210iGDH300..5D;GDH306..RHD;GDH300..4D..PSOB;GDH301..GSOB..6FC;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN;GDH300,306..LHD..(SG,SP)..(D,J201902-202505

main86300-26220iGDH322..RHD..GSOB..6FC..D¥5,700201903-202404

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86760-26010-A1iGDH306..LHD..G201907-202506

WHITE PEARL CS.,070 ,2QD

main86760-26010-A1iGDH306..LHD..G201907-202505

RUSSIA SPEC&AUDIO-AVN(CD&*BT),WHITE PEARL CS.,070 ,2QD

main86760-26010-A1iGDH306..LHD..G201907-202505

KAZAKHSTAN SPEC&AUDIO-AVN(CD&*BT),WHITE PEARL CS.,070 ,2QD

main86760-26010-A2iGDH300..(PSOB,SHP,SP)..ARL202107-202208

WHITE,058

main86760-26010-B2iGDH306..LHD..G201907-202506

SILVER ME.,1F7

main86760-26010-B2iGDH306..LHD..G201907-202505

RUSSIA SPEC&AUDIO-AVN(CD&*BT),SILVER ME.,1F7

main86760-26010-B2iGDH306..LHD..G201907-202505

KAZAKHSTAN SPEC&AUDIO-AVN(CD&*BT),SILVER ME.,1F7

main86760-26010-B3iGDH306..LHD..G201907-202506

GRAY ME.,1G3

main86760-26010-B3iGDH306..LHD..G201907-202505

RUSSIA SPEC&AUDIO-AVN(CD&*BT),GRAY ME.,1G3

main86760-26010-B3iGDH306..LHD..G201907-202505

KAZAKHSTAN SPEC&AUDIO-AVN(CD&*BT),GRAY ME.,1G3

main86760-26010-B4iGDH303..ARL;GDH300..(PSOB,SHP,SP)..ARL202107-202208

SILVER M.M.,1E7

main86760-26010-C1iGDH306..LHD..G201907-202505

KAZAKHSTAN SPEC&AUDIO-AVN(CD&*BT),BLACK,202

main86760-26010-C1iGDH306..LHD..G201907-202505

RUSSIA SPEC&AUDIO-AVN(CD&*BT),BLACK,202

main86760-26010-C1iGDH306..LHD..G201907-202505

BLACK,202

main86760-26020-A1iGDH322..ARL;GDH320..SP..ARL201903-202208

WHITE,058

main86760-26020-B1iGDH320..PSOB..ARL;GDH322..LHD..6F..P..GEN201903-202208

SILVER M.M.,1E7

main86760-26020-E1iGDH320..SG..ARL201903-202208

BEIGE ME.,4R4

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-0K080iGDH322..TH;GDH328..VN201906

main86309-26020iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH300,301..4D¥2,060201902-202505

86396NUT, ANTENNA

main86396-47010iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH322..LHD..S¥430201902-202505

863C2BASE, DIGITAL AUDIO BROADCASTING ANTENNA

main863C2-60010iGDH301..RHD..6F..N¥13,000202310-202405

SOUTH AFRICA SPEC&AUDIO-EDA(*BT)

main863C2-60010iGDH300..SHP..6F..GEN¥13,000202310-202405

SOUTH AFRICA SPEC&AUDIO-AVN(*BT & 21CY)

main863C2-60010iGDH300,301,303,320,321,322,GRH300,303,320,321..ARL,NZ¥13,000201902

86681CDIVIDER, ANTENNA

main86681-26050iGDH306..LHD..G¥3,430201907-202505

RUSSIA SPEC&AUDIO-AVN(CD&*BT)

main86681-26050iGDH306..LHD..G¥3,430201907-202505

ARGENTINA SPEC&AUDIO-AVN(DVD & CD & *BT)

main86681-26050iGDH306..LHD..G¥3,430201907-202505

UKRAINE SPEC&AUDIO-AVN(CD&*BT)

main86681-26050iGDH306..LHD..G¥3,430201907-202505

KAZAKHSTAN SPEC&AUDIO-AVN(CD&*BT)

main86681-26050iGDH306..LHD..G¥3,430201907-202505

TAIWAN SPEC&AUDIO-AVN(DVD & CD & *BT)

main86681-26050iGDH300,303,320,322..ARL¥3,430202107-202208

86768COVER, ROOF ANTENNA

main86768-26020iGDH301..RHD..6F..N;GDH300,320..RHD..5D..SP..6F..GEN¥750202310-202405

SOUTH AFRICA SPEC&AUDIO-AVN(*BT & 21CY)

main86768-26020iGDH301..RHD..6F..N;GDH300,320..RHD..5D..SP..6F..GEN¥750202310-202405

SOUTH AFRICA SPEC&AUDIO-EDA(*BT)

main86768-26020iGDH300,301,303,320,321,322,GRH300,303,320,321..ARL,NZ¥750201902

8271112B10WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B10¥140

9011906A06

main90119-06A06¥60

9015950327

main90159-50327¥70

9017906274

main90179-06274¥70

13 parts on this diagram · 3 diagrams in section
