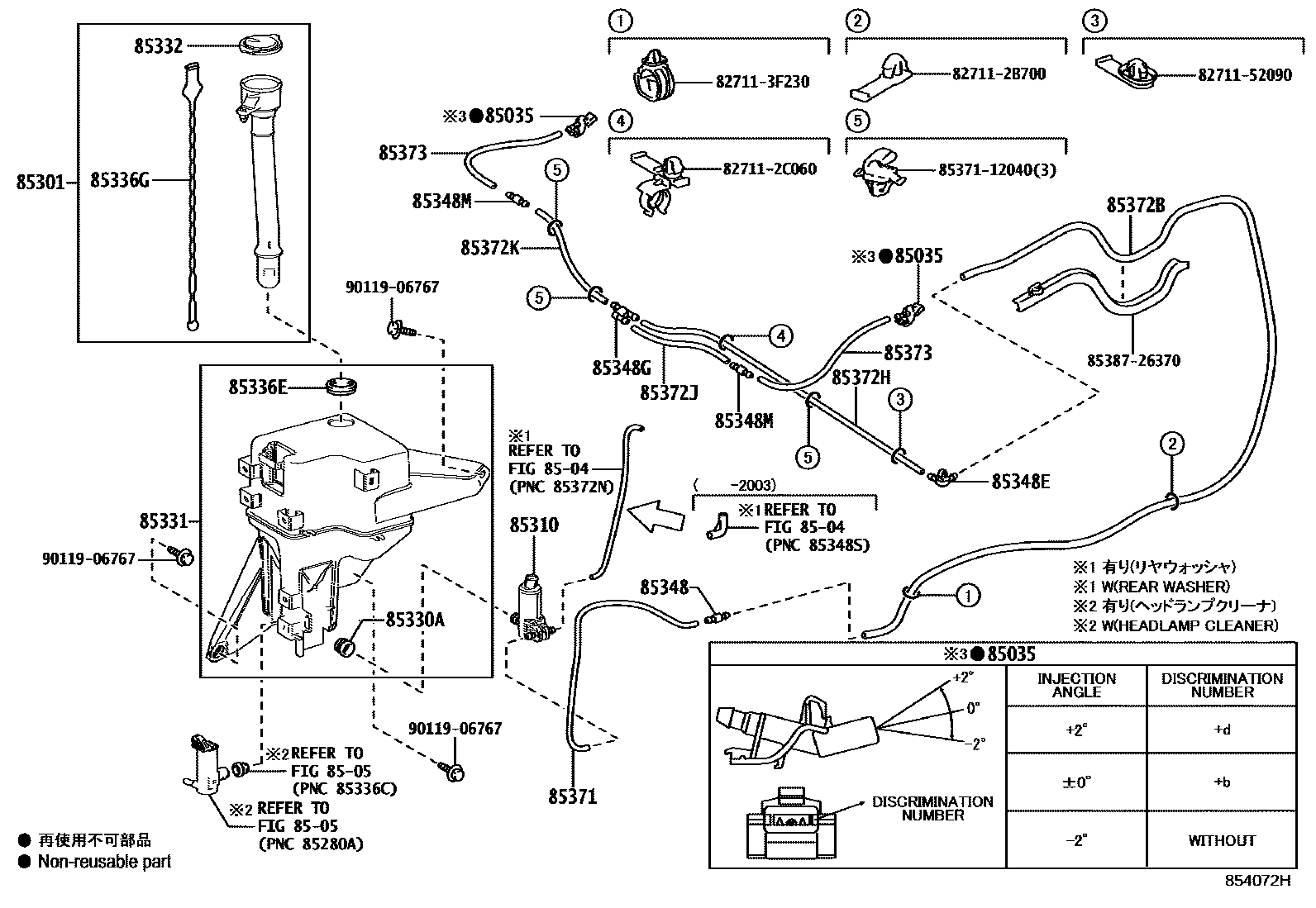

Toyota GRNVA/HIACE/MJSTY — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH322..LHD..S¥0201902-202505

ANGLE 0

sub85381-0K070¥1,140

main85381-30230iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH322..LHD..S¥0201902-202505

ANGLE -2

sub85381-0K080

main85381-30240iGDH322..RHD..P..GEN¥0201902-202505

ANGLE +2

8504

8505

85301INLET SUB-ASSY, WASHER

main85301-26010iGDH322..N;GDH322..6FC..Q..GEN;GDH306,321..RHD..(G,J,N);GDH322..(D,Q)..(ARL,GCC,TH);GDH306,328..LHD..(D,J,N)..(GEN,PH,VN);GDH301,303,304,GRH301,303,304,321,322..G,H,201902-202505

REAR WINDOW WIPER-WITH

main85301-26010iGDH322..6F..Q..GEN201902-202005

REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main85301-26010iGDH322..6F..Q..GEN201902-202005

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main85301-26010iGDH322..Q..GEN202006

main85301-26020iGDH322..RHD..P..GEN201902-202506

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-33070iGDH321..D..GEN¥0201902-202506

main85330-47100iGDH322..RHD..P..GEN¥0201902-202005

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main85330-47100iGDH322..RHD..P..GEN¥0201902-202505

REAR WINDOW WIPER-WITH

main85330-47100iGDH322..RHD..P..GEN¥0201902-202005

REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main85330-47100iGDH322..Q..GEN¥0202006

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iGDH322..RHD..(P,Q)..GEN201902-202506

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85315-26140iGDH321..GEN201902-202506

85332CAP, WINDSHIELD WASHER JAR

main85316-26010iGDH322..RHD..(P,Q)..GEN201902-202505

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iGDH322..RHD..(P,Q)..GEN201902-202506

85336GGAGE, WATER LEVEL

main85312-48010iGDH322..RHD..(P,Q)..GEN201902-202505

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iGDH322..RHD..(P,Q)..GEN201902-202506

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85375-60290iGDH321..GEN¥140201902-202505

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85321-28020iGDH322..RHD..(P,Q)..GEN¥680201902-202505

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iGDH322..RHD..(P,Q)..GEN201902-202505

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iGDH322..RHD..(P,Q)..GEN201902-202506

L=1450(*H,L=430)

main90099-33080iGDH322..RHD..(P,Q)..GEN201902-202506

L=1450(*H,L=430),REAR WINDOW WIPER-WITH

main90099-33080iGDH322..RHD..(P,Q)..GEN201902-202506

L=1450(*H,L=430),REAR WINDOW WIPER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main90099-33080iGDH322..RHD..(P,Q)..GEN201902-202506

L=1450(*H,L=430),INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33803iGDH322..RHD..(P,Q)..GEN¥500201902-202505

L=1550

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iGDH322..RHD..(P,Q)..GEN201902-202505

L=1450(*H,L=760)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iGDH322..RHD..(P,Q)..GEN201902-202505

L=1450(*H,L=140)

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33299iGDH322..RHD..(P,Q)..GEN201902-202505

L=1000(*H,L=315)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iGDH322..RHD..(P,Q)..GEN201902-202505

L=1450(*H,L=240)

827112B700WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B700¥90

827112C060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C060¥90

827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F230¥200

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090¥80

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040¥100

8538726370CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-26370

9011906767

main90119-06767¥60

27 parts on this diagram · 1 diagram in section
