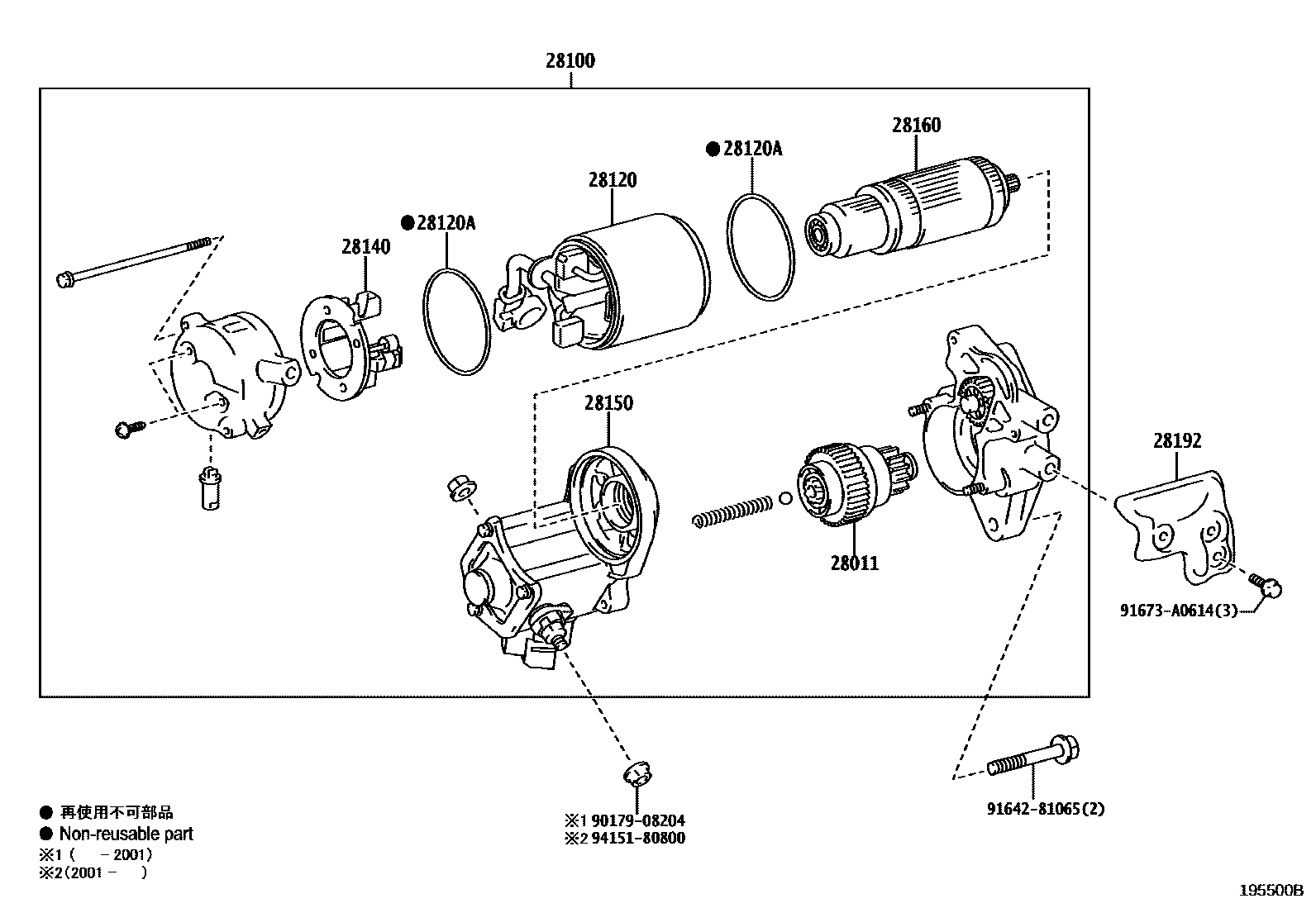

Toyota GRNVA/HIACE/MJSTY — STARTER

0001 112V 1.4KW 0002 112V 2.0KW 0004 112V 2.0KW 0005 112V 2.0KW 0006 112V 2.4KW 0007 112V 2.4KW 0008 112V 3.0KW 0009 112V 3.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-30050i1GDFTV..GDH306..LHD..J;1GDFTV..GDH322..LHD..6F..P..GEN¥19,200201903

main28011-30050i1GDFTV..GDH306..LHD..G¥19,200201903-202505

main28011-66020i7GRFKS..GRH30#,32#¥12,800201902

28100STARTER ASSY

main28100-0E020i1GDFTV..GDH322..TH202203

12V 2.0KW,(L)

main28100-11200i1GDFTV..GDH306..LHD..G201903-202505

12V 3.0KW

main28100-11200i1GDFTV..GDH306..LHD..J;1GDFTV..GDH322..LHD..6F..P..GEN201903

12V 3.0KW

main28100-11210i1GDFTV..GDH322..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH300..5D..(GCC,GEN);1GDFTV..GDH301..LHD..GSOB..6F;1GDFTV..GDH322..6FC..(P,Q)..G¥76,600201902

12V 2.0KW

main28100-11210i1GDFTV..GDH322..RHD..(P,Q)..GEN¥76,600201902-202005

12V 2.0KW

main28100-11210i1GDFTV..GDH322..TH¥76,600201902-202203

12V 2.0KW

main28100-11210i1GDFTV..GDH321..GEN¥76,600201902-202310

12V 2.0KW

main28100-11210i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D¥76,600201902-202404

12V 2.0KW

main28100-11210i1GDFTV..GDH300..RHD..4D..SP..6FC..GEN¥76,600201902-202505

12V 2.0KW

main28100-11210i1GDFTV..GDH322..RHD..(P,Q)..GEN¥76,600202006

12V 2.0KW

main28100-11210i1GDFTV..GDH322..TH¥76,600202203

12V 2.0KW,(J)

main28100-30110i1GDFTV..GDH300,301,303,320,321,322..ARL,NZ¥84,400201902

12V 2.4KW

main28100-31160i7GRFKS..GRH30#,32#201902

12V 1.4KW

28120YOKE ASSY, STARTER

main28120-0L180i1GDFTV..GDH322..RHD..(P,Q)..GEN¥8,700201902-202005

main28120-0L180i1GDFTV..GDH321..GEN¥8,700201902-202310

main28120-0L180i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D¥8,700201902-202404

main28120-0L180i1GDFTV..GDH300..RHD..4D..SP..6FC..GEN¥8,700201902-202505

main28120-0L180i1GDFTV..GDH322..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH300..5D..(GCC,GEN);1GDFTV..GDH301..LHD..GSOB..6F;1GDFTV..GDH322..6FC..(P,Q)..G¥8,700201902

main28120-0L180i1GDFTV..GDH322..RHD..(P,Q)..GEN¥8,700202006

main28120-66040i7GRFKS..GRH30#,32#201902

main28120-67090i1GDFTV..GDH306..LHD..J;1GDFTV..GDH322..LHD..6F..P..GEN201903

main28120-67090i1GDFTV..GDH306..LHD..G201903-202505

28120ARING, O(FOR STARTER YOKE)

main90099-14064i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202106

main90099-14064i7GRFKS..GRH322..N;7GRFKS..GRH300..SG;7GRFKS..GRH301..6F..N;7GRFKS..GRH301..LHD..6FC;7GRFKS..GRH300..4D..6F..GEN;7GRFKS..GRH303,320..RHD..GEN;7GRFKS..GRH320..LHD..SP201902-202207

main90099-14064i7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7201902

28140HOLDER ASSY, STARTER BRUSH

main28140-0L180i1GDFTV..GDH322..RHD..(P,Q)..GEN¥0202006

main28140-0L180i1GDFTV..GDH322..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH300..5D..(GCC,GEN);1GDFTV..GDH301..LHD..GSOB..6F;1GDFTV..GDH322..6FC..(P,Q)..G¥0201902

main28140-0L180i1GDFTV..GDH322..RHD..(P,Q)..GEN¥0201902-202005

main28140-0L180i1GDFTV..GDH321..GEN¥0201902-202310

main28140-0L180i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D¥0201902-202404

main28140-0L180i1GDFTV..GDH300..RHD..4D..SP..6FC..GEN¥0201902-202505

main28140-35060i7GRFKS..GRH30#,32#201902

main28140-67090i1GDFTV..GDH306..LHD..J;1GDFTV..GDH322..LHD..6F..P..GEN201903

main28140-67090i1GDFTV..GDH306..LHD..G201903-202505

28150SWITCH ASSY, MAGNET STARTER

main28150-30070i1GDFTV..GDH306..LHD..G¥16,500201903-202505

main28150-30070i1GDFTV..GDH306..LHD..J;1GDFTV..GDH322..LHD..6F..P..GEN¥16,500201903

main28150-31130i7GRFKS..GRH30#,32#¥10,400201902

main28150-40090i1GDFTV..GDH300..RHD..4D..SP..6FC..GEN¥10,900201902-202505

main28150-40090i1GDFTV..GDH322..RHD..(P,Q)..GEN¥10,900201902-202005

main28150-40090i1GDFTV..GDH322..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH300..5D..(GCC,GEN);1GDFTV..GDH301..LHD..GSOB..6F;1GDFTV..GDH322..6FC..(P,Q)..G¥10,900201902

main28150-40090i1GDFTV..GDH321..GEN¥10,900201902-202310

main28150-40090i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D¥10,900201902-202404

main28150-40090i1GDFTV..GDH322..RHD..(P,Q)..GEN¥10,900202006

28160ARMATURE ASSY, STARTER

main28160-0N110i1GDFTV..GDH322..TH202203

(L)

main28160-33150i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D¥13,100201902-202404

main28160-33150i1GDFTV..GDH322..RHD..(P,Q)..GEN¥13,100201902-202005

main28160-33150i1GDFTV..GDH321..GEN¥13,100201902-202310

main28160-33150i1GDFTV..GDH300..RHD..4D..SP..6FC..GEN¥13,100201902-202505

main28160-33150i1GDFTV..GDH322..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH300..5D..(GCC,GEN);1GDFTV..GDH301..LHD..GSOB..6F;1GDFTV..GDH322..6FC..(P,Q)..G¥13,100201902

main28160-33150i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN¥13,100201906

(J)

main28160-33150i1GDFTV..GDH322..RHD..(P,Q)..GEN¥13,100202006

main28160-67090i1GDFTV..GDH306..LHD..G¥21,100201903-202505

main28160-67090i1GDFTV..GDH306..LHD..J;1GDFTV..GDH322..LHD..6F..P..GEN¥21,100201903

main28160-74070i7GRFKS..GRH30#,32#201902

28192COVER, STARTER

main28192-31041i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥1,800201902-202106

main28192-31041i7GRFKS..GRH322..N;7GRFKS..GRH300..SG;7GRFKS..GRH301..6F..N;7GRFKS..GRH301..LHD..6FC;7GRFKS..GRH300..4D..6F..GEN;7GRFKS..GRH303,320..RHD..GEN;7GRFKS..GRH320..LHD..SP¥1,800201902-202207

main28192-31041i7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7¥1,800201902

9017908204

main90179-08204¥140

9164281065

main91642-81065¥180

91673A0614

main91673-A0614¥60

9415180800

main94151-80800¥80

12 parts on this diagram · 8 diagrams in section
