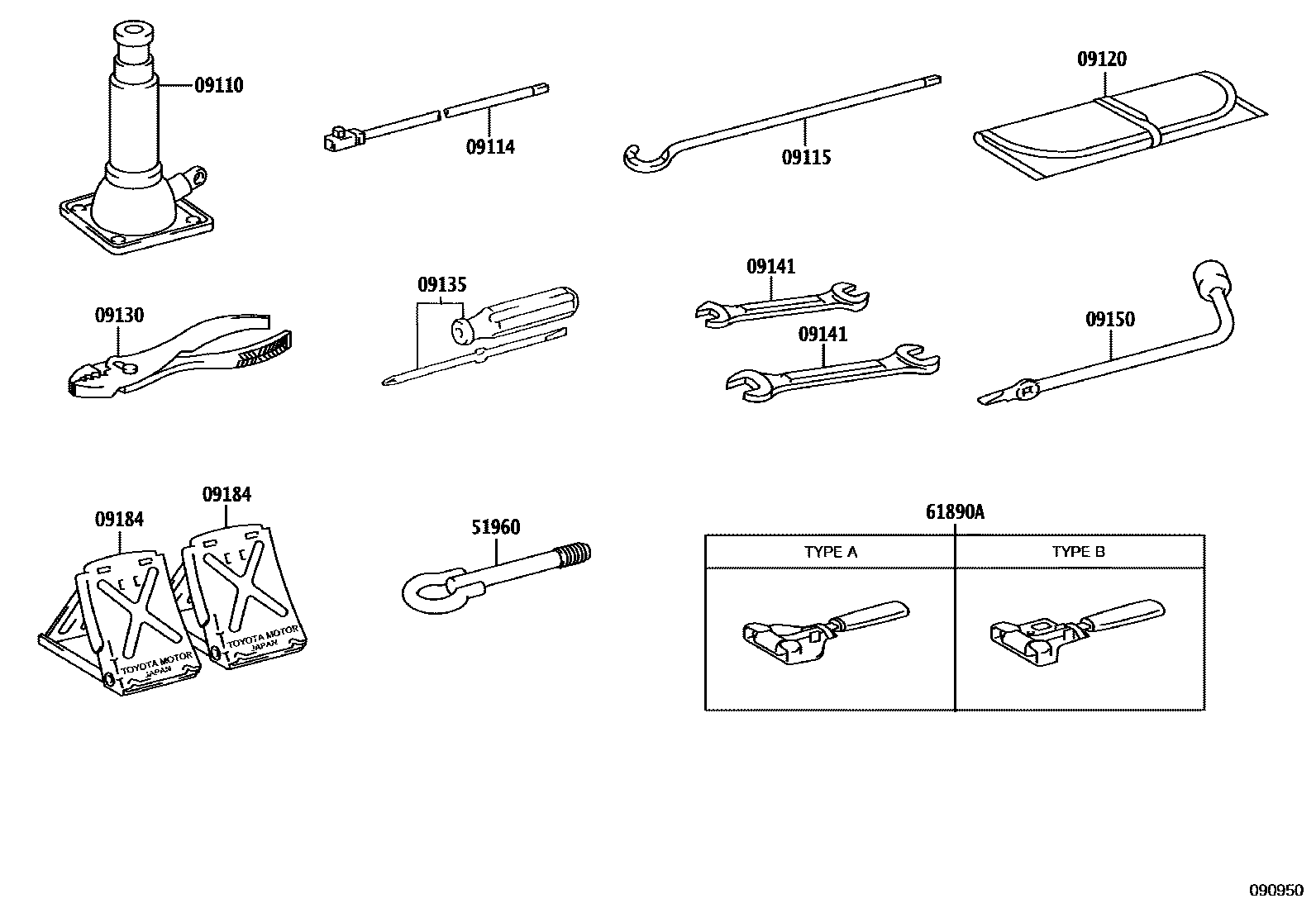

Toyota GRNVA/HIACE/MJSTY — STANDARD TOOL

09110JACK ASSY

main09111-26200iGDH300..SG;GDH320..SG..6FC..ARL¥6,100201902-202208

main09111-26210iGDH303..G..ARL¥6,100201902-202310

NEW ZEALAND SPEC

main09111-26210iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D¥6,100201902-202505

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-28010iGDH321..GEN¥450201902-202505

main09114-VR010iGDH320,322,328..AGT,BZ202401

09115ROD SUB-ASSY, JACK HANDLE

main09115-28030iGDH322..RHD..(P,Q)..GEN¥600201902-202505

main09115-VR010iGDH320,322,328..AGT,BZ202401

09120BAG, TOOL

main09120-30020iGDH322..RHD..(P,Q)..GEN¥820201902-202505

main09120-VR010iGDH320,322,328..AGT,BZ202401

09130PLIERS

main90080-99020iGDH320,322,328..AGT,BZ202401

main99913-11500iGDH321..GEN¥400201902-202505

09135DRIVER, SCREW

main09135-0K070iGDH320,322,328..AGT,BZ202401

main99915-10700iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH300..4D..SP..(ARL,TH);GDH301.¥460201902-202505

09141SPANNER

main09141-0K110iGDH320,322,328..AGT,BZ202401

12 X 14

main09141-0K120iGDH320,322,328..AGT,BZ202401

8 X 10

main99914-10810iGDH322..RHD..(P,Q)..GEN¥240201902-202505

8 X 10

main99914-11214iGDH322..RHD..(P,Q)..GEN¥400201902-202505

12 X 14

09150WRENCH, HUB NUT BOX

main09150-26040iGDH321..GEN¥1,330201902-202505

main09150-VR010iGDH320,322,328..AGT,BZ202401

09184STOPPER, WHEEL

main09184-00010iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH322..LHD..S¥770201902-202505

51960HOOK ASSY, FRONT

main51960-26030iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH300..4D..SP..(ARL,TH);GDH301.¥1,830201902-202505

61890AHAMMER ASSY, BACK WINDOW GLASS

main61890-26010iGDH322..AGT;GDH322..6FC..(P,Q)..GEN¥10,600201903

SAUDI ARABIA SPEC&ESCAPE HATCH-SIDE GLASS(LH) & BACK DOOR & ROOF,TYPE A

main61890-26010iGDH322..AGT;GDH322..6FC..(P,Q)..GEN¥10,600201903-202106

TYPE A

main61890-26010iGDH321..RHD..(GEN,IDN);GDH322..LHD..6F..P..GEN;GDH322,GRH321,322..ARL,GCC,NZ,TH¥10,600201903

SOUTH AFRICA SPEC&ESCAPE HATCH-SIDE GLASS(RH)&QUARTER GLASS(LH)&ROOF,TYPE A

main61890-36020iGDH322..AGT;GDH321..6FC..GEN;GDH322..LHD..6F..P..GEN;GDH301,GRH321..ARL,NZ,TH;GDH322..6FC..(P,Q)..(ARL,GEN,NZ)¥10,600201902

TYPE B

11 parts on this diagram · 1 diagram in section
