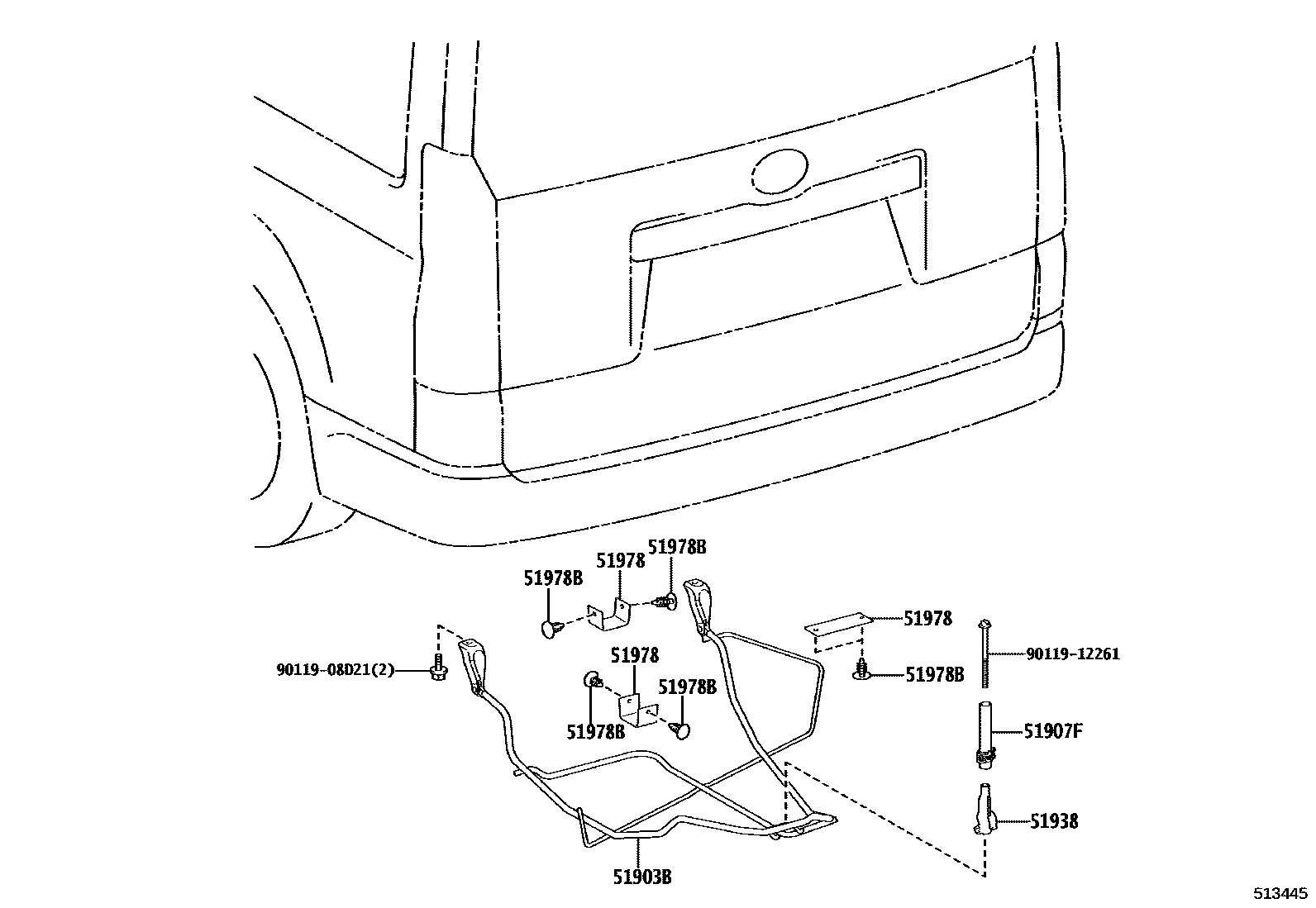

Toyota GRNVA/HIACE/MJSTY — SPARE WHEEL CARRIER

0001 1 0004 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

51903BCARRIER SUB-ASSY, SPARE WHEEL

main51903-26690iGDH301..GSOB..6F..N;GDH300..RHD..4D..SP..6FC..GEN201902-202505

main51903-26690iGDH301..RHD..GSOB..6F201902-202404

main51903-26690iGDH320..6F..ARL;GDH300..SHP..ARL;GDH320..5D..6FC..ARL201902

NEW ZEALAND SPEC

main51903-26690iGDH300,320..SG..ARL202208

main51903-26700iGDH322..RHD..(P,Q)..GEN201903-202005

main51903-26700iGDH321..GEN201903-202310

main51903-26700iGDH322..RHD..GSOB..6FC..D201903-202404

main51903-26700iGDH322..GSOB..6F..N201903-202505

main51903-26700iGDH322..RHD..P..GEN202006-202106

main51903-26700iGDH321..RHD;GDH322..LHD..Q;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..P..(ARL,GCC,NZ);GDH322..GSOB..6F..(D,P);GDH322..LHD..SG..P..GEN;GDH322..SG..(D,N)..(G201903

main51903-26700iGDH322..Q..GEN202006

main51903-26700iGDH322..RHD..P..GEN202107

main51903-26710iGRH321..Q..ARL;GDH320..6F..ARL;GDH320..5D..6FC..ARL;GDH300,GRH320..(PSOB,SHP,SP)..ARL201902

main51903-26710iGDH300..SG;GDH320..SG..6FC..ARL201902-202208

main51903-26720iGDH306..LHD..J;GDH303,304,GRH303,304;GDH306,322..RHD..6FC..(G,J,Q)¥6,800201903

main51903-26720iGDH306..LHD..G¥6,800201903-202505

main51903-VR010iGDH320..AGT,BZ202401

main51903-VR020iGDH322,328..AGT,BZ202401

51907FSTOPPER SUB-ASSY, SPARE WHEEL CARRIER

main51907-26030iGDH322..RHD..(P,Q)..GEN¥730201902-202005

main51907-26030iGDH322..RHD..P..GEN¥730202006-202106

main51907-26030iGDH321..GEN¥730201902-202310

main51907-26030iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D¥730201902-202404

main51907-26030iGDH306..LHD..G;GDH301,322..GSOB..6F..N;GDH300..RHD..4D..SP..6FC..GEN¥730201902-202505

main51907-26030iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH300..4D..SP..(ARL,TH);GDH301.¥730201902

main51907-26030iGDH322..Q..GEN¥730202006

main51907-26030iGDH322..RHD..P..GEN¥730202107

51938LOCK, SPARE WHEEL CARRIER

main51938-44010iGDH322..RHD..(P,Q)..GEN¥570201902-202005

main51938-44010iGDH322..RHD..P..GEN¥570202006-202106

main51938-44010iGDH321..GEN¥570201902-202310

main51938-44010iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D¥570201902-202404

main51938-44010iGDH306..LHD..G;GDH301,322..GSOB..6F..N;GDH300..RHD..4D..SP..6FC..GEN¥570201902-202505

main51938-44010iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH300..4D..SP..(ARL,TH);GDH301.¥570201902

main51938-44010iGDH322..Q..GEN¥570202006

main51938-44010iGDH322..RHD..P..GEN¥570202107

51978PROTECTOR, SPARE WHEEL CARRIER

main51978-26010iGDH300..5D;GDH300..4D..PSOB;GDH300..LHD..SP..GEN;GDH320,GRH300,320,321;GDH321..RHD..(GEN,IDN);GDH322..LHD..(P,Q)..GEN;GDH300..RHD..4D..SP..6F..GEN;GDH300,322,GRH322¥710201902

main51978-26010iGDH322..RHD..(P,Q)..GEN¥710201902-202005

main51978-26010iGDH322..RHD..P..GEN¥710202006-202106

main51978-26010iGDH321..GEN¥710201902-202310

main51978-26010iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D¥710201902-202404

main51978-26010iGDH300..RHD..4D..SP..6FC..GEN¥710201902-202505

main51978-26010iGDH322..Q..GEN¥710202006

main51978-26010iGDH322..RHD..P..GEN¥710202107

51978BCLIP, SPARE WHEEL CARRIER PROTECTOR

main90467-06020-C0iGDH322..RHD..(P,Q)..GEN201902-202005

BLACK

sub90467-06020¥190

main90467-06020-C0iGDH322..RHD..P..GEN202006-202106

BLACK

sub90467-06020¥190

main90467-06020-C0iGRH321,322..LHD..(P,Q);GDH322..LHD..6F..P..GEN;GDH321,322..(D,P,Q)..(ARL,GCC,IDN,TH)201902-202201

BLACK

sub90467-06020¥190

main90467-06020-C0iGDH322..Q..GEN202006-202201

BLACK

sub90467-06020¥190

main90467-06020-C0iGDH322..RHD..P..GEN202107-202201

BLACK

sub90467-06020¥190

main90467-06020-C0iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D202201-202404

BLACK,(J)

sub90467-06020¥190

main90467-06020-C0iGDH300..RHD..4D..SP..6FC..GEN201902-202505

BLACK

sub90467-06020¥190

main90467-06020-C0iGDH306..G;GDH301,322..GSOB..6F..N202201-202505

BLACK,(J)

sub90467-06020¥190

main90467-06020-C0iGDH300..5D;GDH321..N..IDN;GDH300..4D..PSOB;GDH320,GRH300,320;GDH300..LHD..SP..GEN;GDH300..RHD..4D..SP..6F..GEN;GDH322..6FC..(P,Q)..(GEN,NZ);GDH300,GRH321..4D..(SG,S201902

BLACK

sub90467-06020¥190

main90467-06020-C0iGRH321,322..P,Q;GDH322..ARL,GCC,TH;GDH322..LHD..P..GEN;GDH321..RHD..(GEN,IDN)202201

BLACK,(J)

sub90467-06020¥190

main90467-06020-C0iGDH321..GEN202201-202310

BLACK,(J)

sub90467-06020¥190

main90467-T0046iGRH301..6F..N;GRH322..RHD..N;GRH322..6FC..N;GRH301..LHD..6FC;GDH322,GRH303..RHD..(G,J,P)..GEN202201-202207

(L)

main90467-T0046-C0iGRH322..D;GDH321..NZ;GRH301..RHD..D;GDH301..GSOB..6FC;GRH301..LHD..6F..D;GRH322..LHD..6F..N;GRH301..RHD..6FC..N;GDH322..GSOB..6F..D;GDH322..RHD..GSOB..N;GDH306,GRH3202201

BLACK,(L)

main90467-T0046-C0iGDH321..GEN202201-202310

BLACK,(L)

main90467-T0046-C0iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D202201-202404

BLACK,(L)

main90467-T0046-C0iGDH306..G;GDH301,322..GSOB..6F..N202201-202505

BLACK,(L)

9011908D21

main90119-08D21¥80

9011912261

main90119-12261¥430

7 parts on this diagram · 8 diagrams in section
