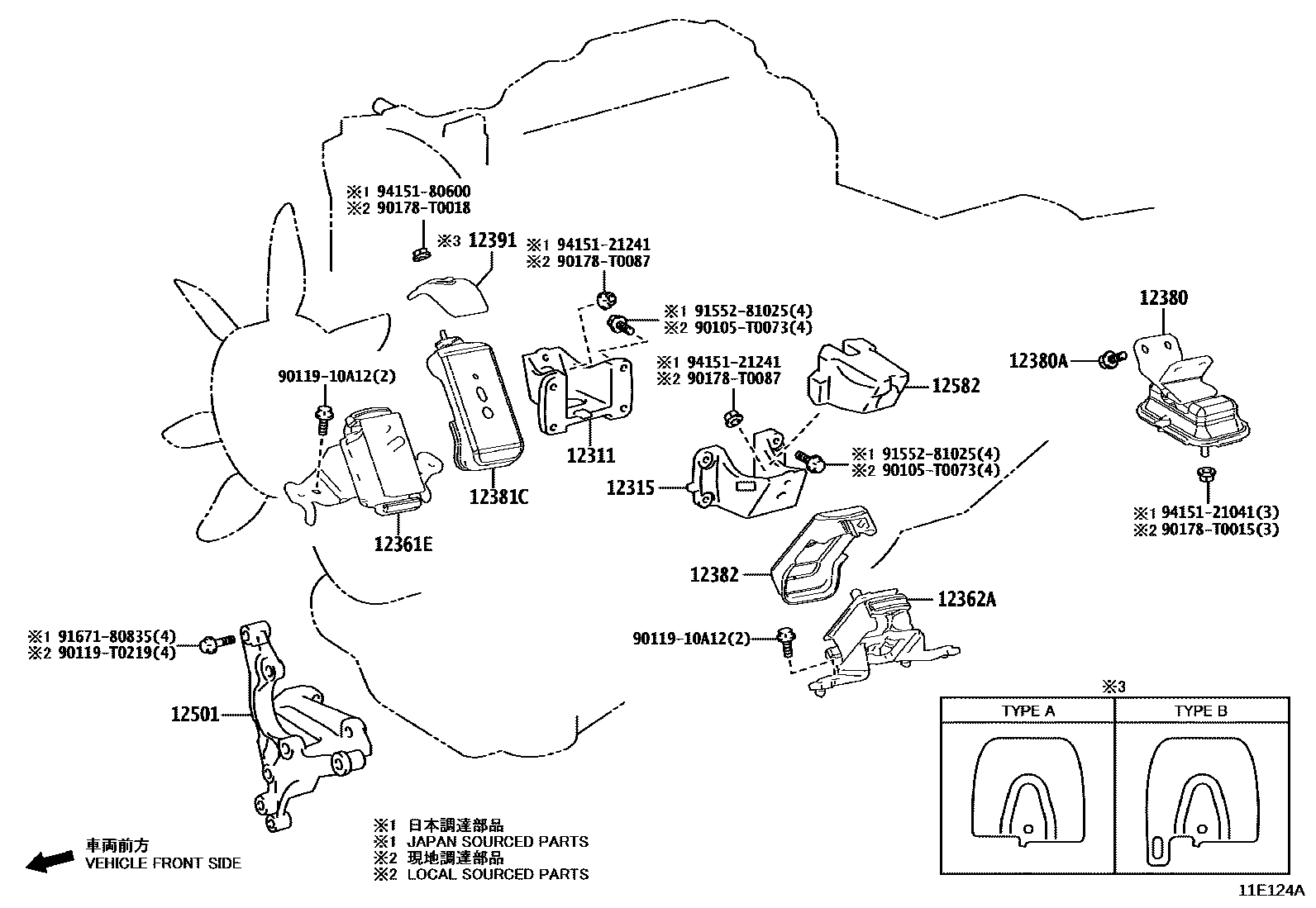

Toyota GRNVA/HIACE/MJSTY — MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-0E020i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main12311-0E020i1GDFTV..GDH320,322..AGT202401

THA SOURCED PARTS

main12311-0E040i1GDFTV..GDH320,328..BZ202409

(L)

main12311-0E040i1GDFTV..GDH320,322..AGT202401

ARG SOURCED PARTS

main12311-0E050i1GDFTV..GDH320,322..AGT202401

IND SOURCED PARTS

main12311-11140i1GDFTV..GDH306..LHD..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN¥2,870201902-202505

(J)

main12311-11140i1GDFTV..GDH320,322..AGT¥2,870202401

JAPAN SOURCED PARTS

main12311-31250i7GRFKS..GRH30#,32#201902

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-08010i1GDFTV..GDH320,328..BZ202409

main12315-0E010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main12315-0E010i1GDFTV..GDH320,322..AGT202401

THA SOURCED PARTS

main12315-0E030i1GDFTV..GDH320,322..AGT202401

ARG SOURCED PARTS

main12315-0E040i1GDFTV..GDH320,322..AGT202401

IND SOURCED PARTS

main12315-11060i1GDFTV..GDH306..LHD..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN¥2,870201902-202505

(J)

main12315-11060i1GDFTV..GDH320,322..AGT¥2,870202401

JAPAN SOURCED PARTS

main12315-31260i7GRFKS..GRH30#,32#201902

12361EINSULATOR, ENGINE MOUNTING, FRONT RH

main12361-11210i1GDFTV..GDH322..RHD..(P,Q)..GEN¥5,200201902-202505

main12361-31520i7GRFKS..GRH30#,32#201902

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12362-11310i1GDFTV..GDH322..RHD..(P,Q)..GEN¥5,200201902-202505

main12362-31100i7GRFKS..GRH30#,32#201902

12380INSULATOR ASSY, ENGINE MOUNTING, REAR

main12380-11010i1GDFTV..GDH322..RHD..GSOB..6FC..D¥5,200201902-202505

main12380-11020i1GDFTV..GDH301,322..GSOB..6F..N201902-202505

main12380-31180i7GRFKS..GRH30#,32#..6FC201902

main12380-31190i7GRFKS..GRH300,301,32#..6F201902

12380ABOLT(FOR ENGINE MOUNTING INSURATOR)

main90119-10A12i1GDFTV..GDH321..GEN¥120201902-202505

12381CSTABILIZER, ENGINE MOUNTING, RH

main12381-11030i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D¥1,660201902-202505

main12381-31080i7GRFKS..GRH30#,32#201902

12382STABILIZER, ENGINE MOUNTING, LH

main12381-11030i1GDFTV..GDH306..LHD..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN¥1,660201902-202505

main12381-31080i7GRFKS..GRH30#,32#201902

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-0L010i1GDFTV..GDH322..RHD..(P,Q)..GEN¥490201902-202505

TYPE A:REFER ILLUST.

main12391-11030i1GDFTV..GDH322..RHD..(P,Q)..GEN¥490201902-202505

TYPE B:REFER ILLUST.

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-0E011i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN¥5,700201906-202505

(L)

main12501-11012i1GDFTV..GDH320..6F;1GDFTV..GDH322..GCC,NZ;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH300..5D..(GCC,GEN);1GDFTV..GDH320..6FC..(GCC,GEN);1GDFTV¥5,700201902-202505

(J)

main12501-11012i1GDFTV..GDH320,322,328..AGT,BZ¥5,700202401

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-0E010i1GDFTV..GDH322,328..TH,VN201906-202311

(L)

main12582-11010i1GDFTV..GDH322..RHD..P..GEN¥910201902-202311

(J)

main12582-11010i1GDFTV..GDH322..Q..GEN¥910202006-202311

TAIWAN SPEC

main12582-11010i1GDFTV..GDH322..Q..GEN¥910202006-202311

HONG KONG SPEC

main12582-11010i1GDFTV..GDH300..HPSOB¥910202208-202311

90105T0073

main90105-T0073

9011910A12

main90119-10A12¥120

90119T0219

main90119-T0219

90178T0015

main90178-T0015

90178T0018

main90178-T0018¥70

90178T0087

main90178-T0087

9155281025

main91552-81025¥100

9167180835

main91671-80835¥100

9415121041

main94151-21041¥100

9415121241

main94151-21241¥100

9415180600

main94151-80600¥60

22 parts on this diagram · 4 diagrams in section
