Toyota GRNVA/HIACE/MJSTY — INJECTION PUMP ASSEMBLY

0001 1W(HEATER) 0006 1W/O(HEATER) 0010 1W(PRESSURIZED FUEL FILTER) 0014 1W/O(PRESSURIZED FUEL FILTER) 0018 1

2302

23271XHOSE, FUEL, NO.2

main23273-11070i1GDFTV..GDH301..LHD..SG..6F..N;1GDFTV..GDH300,320..LHD..SP..6F..GEN¥3,030201902-202310

SOUTH AFRICA SPEC

main23273-11070i1GDFTV..GDH301..LHD..SG..6F..N¥3,030201902-202310

CHILE SPEC

main23273-11070i1GDFTV..GDH301..LHD..SG..6F..N¥3,030201902

PHILIPPINES SPEC

main23273-11070i1GDFTV..GDH300,304..TH;1GDFTV..GDH301..6F..TH¥3,030201902-202505

main23273-11070i1GDFTV..GDH301..LHD..SG..6FC..N¥3,030202208

ARGENTINA SPEC&SPECIAL NOISE INSULATOR-WITH(ECE51/03 PHASE1)

main23273-11070i1GDFTV..GDH301..RHD..6F..N¥3,030201902-202310

PERU SPEC

main23273-11070i1GDFTV..GDH301..RHD..6F..N¥3,030202405

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700

main23273-11070i1GDFTV..GDH301..RHD..6F..N¥3,030202405

PERU SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS)

main23273-11070i1GDFTV..GDH301..RHD..6F..N¥3,030202405

MEXICO SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 WITH(ON BOARD DIAGNOSIS)

main23273-11070i1GDFTV..GDH301..RHD..6F..N¥3,030202405

PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITH(ON BOARD DIAGNOSIS)

main23273-11070i1GDFTV..GDH301..RHD..6F..N¥3,030202405

SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700

main23273-11070i1GDFTV..GDH301..RHD..6F..N¥3,030202405

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681

main23273-11070i1GDFTV..GDH301..RHD..6F..N¥3,030202405

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681

main23273-11070i1GDFTV..GDH301..RHD..6F..N¥3,030202405

HONG KONG SPEC&SPECIAL NOISE INSULATOR-WITH(ECE51/03 PHASE2)

main23273-11070i1GDFTV..GDH321..GEN¥3,030201902-202310

HONG KONG SPEC

main23273-VR010i1GDFTV..GDH322..TH202309-202405

sub23273-11070¥3,030

23271YHOSE, FUEL

main23271-11410i1GDFTV..GDH321..GEN¥3,030201902-202505

23271ZCLIP, HOSE

main96133-41501i1GDFTV..GDH321..GEN¥90201902-202505

23273VCLIP(FOR FUEL HOSE NO.2)

main90466-13005i1GDFTV..GDH321..GEN¥120201902-202505

23274DHOSE, FUEL, NO.3

main23274-11020i1GDFTV..GDH301..RHD..6F..N¥2,380202405

PERU SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS)

main23274-11020i1GDFTV..GDH322..TH¥2,380201902-202505

main23274-11020i1GDFTV..GDH321..GEN¥2,380201902-202310

CHILE SPEC

main23274-11020i1GDFTV..GDH321..GEN¥2,380201902-202310

PERU SPEC

main23274-11020i1GDFTV..GDH321..GEN¥2,380201902-202310

HONG KONG SPEC

main23274-11020i1GDFTV..GDH321..GEN¥2,380201902-202310

SOUTH AFRICA SPEC

main23274-11020i1GDFTV..GDH303..LHD..H;1GDFTV..GDH306..LHD..J;1GDFTV..GDH301..6FC..(NZ,TH);1GDFTV..GDH301..GSOB..6FC..N;1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH322..6FC..(P,Q)..¥2,380201902

PHILIPPINES SPEC

main23274-11020i1GDFTV..GDH301..LHD..SG..6FC..N¥2,380202208

ARGENTINA SPEC&SPECIAL NOISE INSULATOR-WITH(ECE51/03 PHASE1)

main23274-11020i1GDFTV..GDH301..RHD..6F..N¥2,380202405

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700

main23274-11020i1GDFTV..GDH301..RHD..6F..N¥2,380202405

MEXICO SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 WITH(ON BOARD DIAGNOSIS)

main23274-11020i1GDFTV..GDH301..RHD..6F..N¥2,380202405

PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITH(ON BOARD DIAGNOSIS)

main23274-11020i1GDFTV..GDH301..RHD..6F..N¥2,380202405

SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700

main23274-11020i1GDFTV..GDH301..RHD..6F..N¥2,380202405

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681

main23274-11020i1GDFTV..GDH301..RHD..6F..N¥2,380202405

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681

main23274-11020i1GDFTV..GDH301..RHD..6F..N¥2,380202405

HONG KONG SPEC&SPECIAL NOISE INSULATOR-WITH(ECE51/03 PHASE2)

main23274-VR010i1GDFTV..GDH322..TH202309

23274FCLIP(FOR FUEL HOSE NO.3)

main90466-13005i1GDFTV..GDH321..GEN¥120201902-202310

CHILE SPEC

main90466-13005i1GDFTV..GDH321..GEN¥120201902-202310

PERU SPEC

main90466-13005i1GDFTV..GDH321..GEN¥120201902-202310

HONG KONG SPEC

main90466-13005i1GDFTV..GDH321..GEN¥120201902-202310

SOUTH AFRICA SPEC

main90466-13005i1GDFTV..GDH306..LHD..G;1GDFTV..GDH301,322..GSOB..6F..N¥120201902-202505

main90466-13005i1GDFTV..GDH303..LHD..H;1GDFTV..GDH306..LHD..J;1GDFTV..GDH301..6FC..(NZ,TH);1GDFTV..GDH301..GSOB..6FC..N;1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH322..6FC..(P,Q)..¥120201902

PHILIPPINES SPEC

main90466-13005i1GDFTV..GDH301..LHD..SG..6FC..N¥120202208

ARGENTINA SPEC&SPECIAL NOISE INSULATOR-WITH(ECE51/03 PHASE1)

main90466-13005i1GDFTV..GDH301..RHD..6F..N¥120202405

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700

main90466-13005i1GDFTV..GDH301..RHD..6F..N¥120202405

PERU SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS)

main90466-13005i1GDFTV..GDH301..RHD..6F..N¥120202405

MEXICO SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 WITH(ON BOARD DIAGNOSIS)

main90466-13005i1GDFTV..GDH301..RHD..6F..N¥120202405

PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITH(ON BOARD DIAGNOSIS)

main90466-13005i1GDFTV..GDH301..RHD..6F..N¥120202405

SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700

main90466-13005i1GDFTV..GDH301..RHD..6F..N¥120202405

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681

main90466-13005i1GDFTV..GDH301..RHD..6F..N¥120202405

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681

main90466-13005i1GDFTV..GDH301..RHD..6F..N¥120202405

HONG KONG SPEC&SPECIAL NOISE INSULATOR-WITH(ECE51/03 PHASE2)

23841HCLAMP, FUEL HOSE

main23841-0E010i1GDFTV..GDH322..TH202311-202403

NO.2

main23841-11050i1GDFTV..GDH322..RHD..P..GEN¥170201902-202505

NO.2

main23841-11050i1GDFTV..GDH301..LHD..6FC..N¥170201902-202310

EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,NO.2

main23841-11050i1GDFTV..GDH321..GEN¥170201902-202310

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,NO.2

main23841-11050i1GDFTV..GDH321..GEN¥170201902-202310

PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,NO.2

main23841-11050i1GDFTV..GDH300..SHP..6FC..GEN;1GDFTV..GDH300..RHD..(SHP,SP)..6F..GEN¥170201902

ARGENTINA SPEC,NO.2

main23841-11050i1GDFTV..GDH306..LHD..G;1GDFTV..GDH322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN¥170201902-202505

TAIWAN SPEC,NO.2

main23841-11050i1GDFTV..GDH306..LHD..G;1GDFTV..GDH322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN¥170201902-202505

HONG KONG SPEC,NO.2

main23841-11050i1GDFTV..GDH306..LHD..G;1GDFTV..GDH322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN¥170201902-202505

SINGAPORE SPEC,NO.2

main23841-11050i1GDFTV..GDH320..ARL,GEN;1GDFTV..GDH320..SP..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6F..N¥170201902

CHILE SPEC,NO.2

main23841-11050i1GDFTV..GDH320..ARL,GEN;1GDFTV..GDH320..SP..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6F..N¥170201902

CHILE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681,NO.2

main23841-11050i1GDFTV..GDH320..ARL,GEN;1GDFTV..GDH320..SP..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6F..N¥170201902

PERU SPEC,NO.2

main23841-11050i1GDFTV..GDH320..ARL,GEN;1GDFTV..GDH320..SP..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6F..N¥170201902

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,NO.2

main23841-11050i1GDFTV..GDH320..ARL,GEN;1GDFTV..GDH320..SP..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6F..N¥170201902

COSTA RICA SPEC,NO.2

main23841-11050i1GDFTV..GDH320..ARL,GEN;1GDFTV..GDH320..SP..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6F..N¥170201902

MOROCCO SPEC,NO.2

main23841-11050i1GDFTV..GDH320..ARL,GEN;1GDFTV..GDH320..SP..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6F..N¥170201902

PHILIPPINES SPEC,NO.2

main23841-11050i1GDFTV..GDH320..ARL,GEN;1GDFTV..GDH320..SP..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6F..N¥170201902

PAKISTAN SPEC,NO.2

main23841-11050i1GDFTV..GDH320..ARL,GEN;1GDFTV..GDH320..SP..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6F..N¥170201902

PAKISTAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,NO.2

main23841-11050i1GDFTV..GDH320..ARL,GEN;1GDFTV..GDH320..SP..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6F..N¥170201902

SOUTH AFRICA SPEC,NO.2

main23841-11050i1GDFTV..GDH320..ARL,GEN;1GDFTV..GDH320..SP..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6F..N¥170201902

BHUTAN SPEC,NO.2

main23841-11050i1GDFTV..GDH320..ARL,GEN;1GDFTV..GDH320..SP..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6F..N¥170201902

BANGLADESH SPEC,NO.2

main23841-11050i1GDFTV..GDH320..ARL,GEN;1GDFTV..GDH320..SP..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6F..N¥170201902

UNITED ARAB EMIRATES SPEC,NO.2

main23841-11050i1GDFTV..GDH320..ARL,GEN;1GDFTV..GDH320..SP..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6F..N¥170201902

SRI LANKA SPEC,NO.2

main23841-11050i1GDFTV..GDH320..ARL,GEN;1GDFTV..GDH320..SP..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6F..N¥170201902

SRI LANKA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,NO.2

main23841-11050i1GDFTV..GDH320..ARL,GEN;1GDFTV..GDH320..SP..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6F..N¥170201902

AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,NO.2

main23841-11080i1GDFTV..GDH300,320..LHD..PSOB..6F..GEN¥230202405

SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,NO.1

main23841-11080i1GDFTV..GDH300..SHP..6FC..GEN¥230202405

HONG KONG SPEC&SPECIAL NOISE INSULATOR-WITH(ECE51/03 PHASE2),NO.1

main23841-11080i1GDFTV..GDH300..SHP..6FC..GEN¥230202405

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO6 *699,*681,NO.1

main23841-11080i1GDFTV..GDH300..SHP..6FC..GEN¥230202405

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681,NO.1

main23841-11080i1GDFTV..GDH300..SHP..6FC..GEN¥230201902-202310

SOUTH AFRICA SPEC,NO.1

main23841-11080i1GDFTV..GDH300..SHP..6FC..GEN¥230202405

PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITH(ON BOARD DIAGNOSIS),NO.1

main23841-11080i1GDFTV..GDH300..SHP..6FC..GEN¥230202405

MEXICO SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 WITH(ON BOARD DIAGNOSIS),NO.1

main23841-11080i1GDFTV..GDH300..SHP..6FC..GEN¥230202405

PERU SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS),NO.1

main23841-11080i1GDFTV..GDH300..SHP..6FC..GEN¥230202405

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,NO.1

main23841-11080i1GDFTV..GDH300..SHP..6FC..GEN¥230201902-202310

PERU SPEC,NO.1

main23841-11080i1GDFTV..GDH300..SHP..6FC..GEN¥230201902-202505

NO.1

main23841-11080i1GDFTV..GDH321..GEN¥230201902-202310

CHILE SPEC,NO.1

main23841-11080i1GDFTV..GDH321..GEN¥230201902-202310

HONG KONG SPEC,NO.1

main23841-11080i1GDFTV..GDH303..LHD..H;1GDFTV..GDH306..LHD..J;1GDFTV..GDH301..6FC..(NZ,TH);1GDFTV..GDH301..GSOB..6FC..N;1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH322..6FC..(P,Q)..¥230201902

PHILIPPINES SPEC,NO.1

main23841-11080i1GDFTV..GDH301..LHD..SG..6FC..N¥230202208

ARGENTINA SPEC&SPECIAL NOISE INSULATOR-WITH(ECE51/03 PHASE1),NO.1

23842ECLAMP, FUEL PIPE, NO.1

main23842-11040i1GDFTV..GDH322..RHD..(P,Q)..GEN¥250201902-202505

23842FCLAMP, FUEL PIPE, NO.2

main23842-11050i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D¥280201902-202505

23881CBRACKET, FUEL HOSE

main23881-11010i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D¥230201902-202505

77259QHOSE, FUEL

main77259-26200iGDH322..RHD..(P,Q)..GEN¥1,030201902-202505

77259RCLIP, HOSE

main96133-41501iGDH322..RHD..(P,Q)..GEN¥90201902-202505

7751

9046713061

main90467-13061¥70

9167180612

main91671-80612¥60

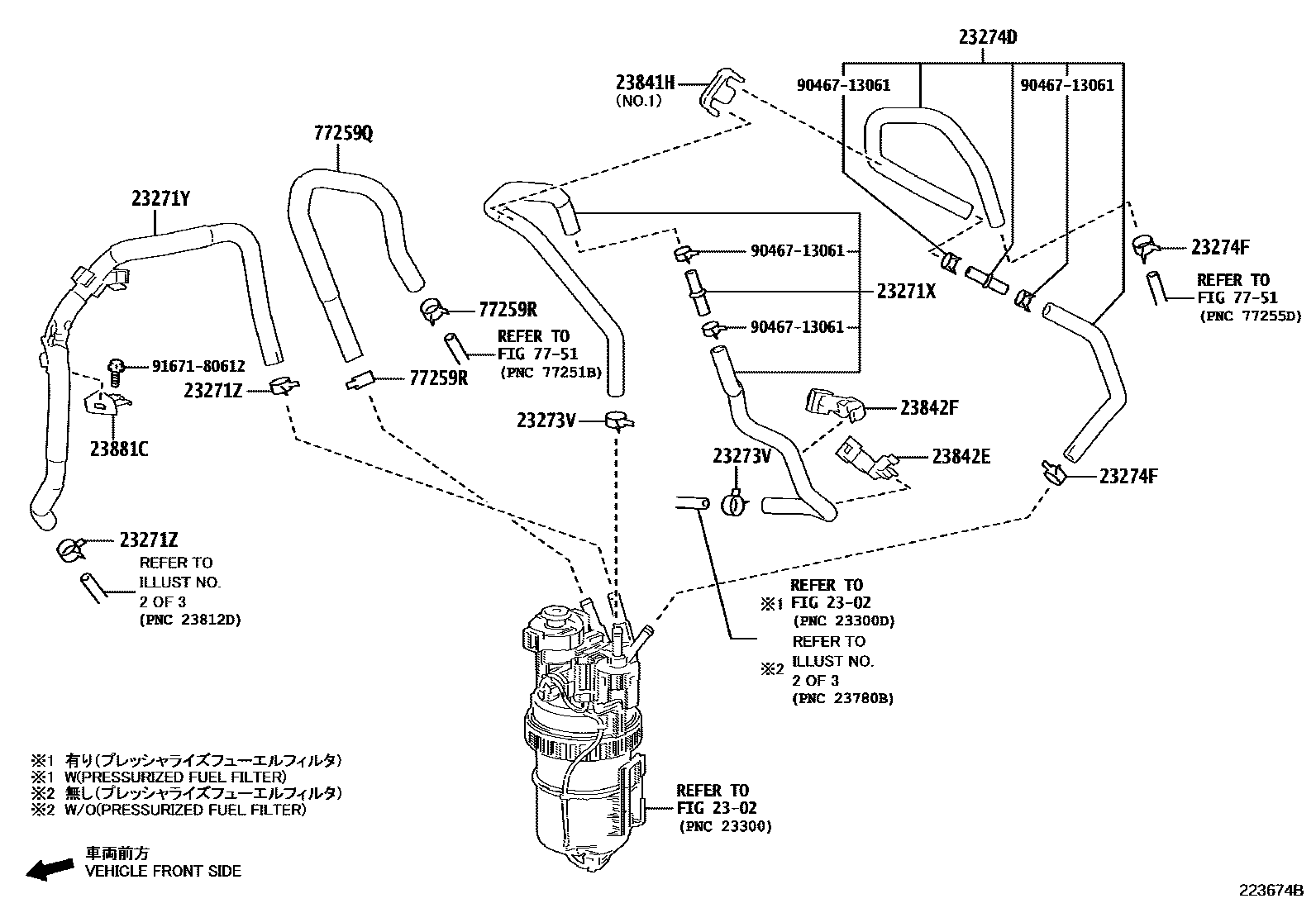

16 parts on this diagram · 5 diagrams in section
