Toyota GRNVA/HIACE/MJSTY — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

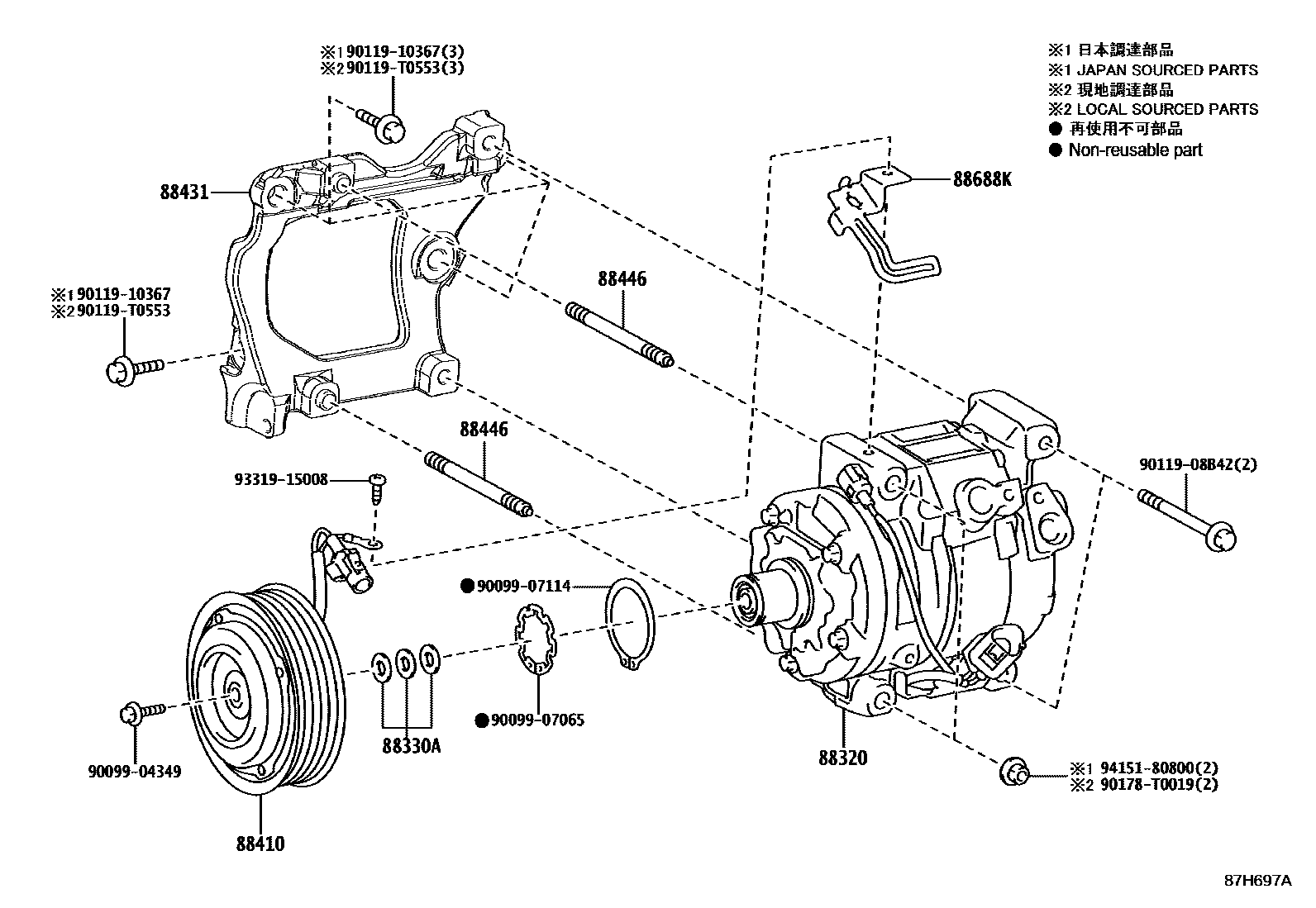

88320COMPRESSOR ASSY, COOLER

main88320-26710iGDH303,322,GRH303,322..GCC201903

main88320-26720iGDH321..D..GEN201902-202310

main88320-26720iGRH322..D;GRH300,301..RHD..D..GEN;GRH301,320..LHD..SG..6F..D201902-202208

FRONT AIR CONDITIONER-MANUAL COOLER

main88320-26730iGDH300,320,GRH300,320..GCC201902

main88320-26750iGDH322..Q..GEN201902-202505

main88320-26750iGDH322..SG..P..GEN;GRH322..LHD..6FC..GEN202208

REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)

main88320-26750iGDH322..SG..P..GEN;GRH322..LHD..6FC..GEN202208

REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)

main88320-26750iGDH322..ARL;GDH301,303,321..ARL,NZ201902-202506

FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGRH300,301,320,322..(SG,SP)..D..GEN201902-202310

main88335-14020iGDH322..6F..Q..GEN201902-202505

FRONT AIR CONDITIONER-MANUAL COOLER

88410CLUTCH ASSY, MAGNET

main88410-60450iGRH322..RHD;GRH322..LHD..SG..6F..GEN¥27,300202208

REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE)

main88410-60450iGRH322..RHD;GRH322..LHD..SG..6F..GEN¥27,300201902

REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)

main88410-60450iGDH322..6F..Q..GEN¥27,300201902-202505

main88410-60A01iGRH322..RHD;GRH300,301,320..D..GEN;GRH322..LHD..SG..6F..GEN¥27,300201902-202310

main88410-60A01iGDH322..LHD..6F..P..GEN¥27,300201902-202208

FRONT AIR CONDITIONER-MANUAL COOLER

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-0K140iGDH301..6FC..D..GEN;GDH301..SG..6F..D..GEN;GDH300..RHD..(HPSOB,SHP);GDH301..LHD..GSOB..6F..D¥5,900202212-202506

FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE),(L)

main88431-0K140iGDH321..N¥5,900202212-202506

(L)

main88431-0K140iGDH321..N¥5,900202212-202310

REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE),(L)

main88431-0K140iGDH301,303,321,322..ARL,NZ¥5,900202212-202506

FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE),(L)

main88431-0K140iGDH301,303,321,322..ARL,NZ¥5,900202212-202506

FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE),(L)

main88431-0K150iGDH322..AGT;GDH320,328..BZ202401

(L)

main88431-26450iGRH322..GSOB;GRH300,320..GCC;GRH301,303,304,321,322..G,H,J,N,P,Q201902

main88431-60330iGDH321..N202212-202506

(J)

main88431-60330iGDH322..6F..Q..GEN201902-202005

FRONT AIR CONDITIONER-MANUAL COOLER

main88431-60330iGDH322..LHD..SG..6F..D..GEN202212-202506

FRONT AIR CONDITIONER-AUTO AIR CONDITIONER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE),(J)

main88431-60330iGDH322..GCC,NZ;GDH306,321..RHD..(G,J,N);GDH300,303,320,328..GCC,TH,VN;GDH306,322..LHD..6FC..(J,P,Q)..GEN201902-202310

main88431-60330iGDH306..LHD..G;GDH322..ARL,TH;GDH301,321..NZ,TH;GDH322..LHD..6F..P..GEN;GDH301,303,304,321,322,328..(G,H,J,N)..(ARL,GEN,PH,TH)201902-202212

FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE)

main88431-60330iGDH301,322..TH;GDH321..6FC..GEN;GDH301,303,304,322,328..(G,H,J,N,P)..(GEN,PH,TH)202212

EUROPE N1&REAR AIR CONDITIONER-WITHOUT

main88431-60330iGDH321..N202212-202310

REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE),(J)

main88431-60330iGDH301,303,321,322..ARL,NZ202212-202506

FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,INDIVIDUAL NOZZLE),(J)

main88431-60330iGDH301,303,321,322..ARL,NZ202212-202506

FRONT AIR CONDITIONER-MANUAL COOLER&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE),(J)

88446BOLT, IDLE PULLEY

main88446-60050iGDH321..GEN¥0201902-202310

main88446-60050iGDH306..LHD..G¥0201902-202505

FRONT AIR CONDITIONER-MANUAL COOLER

88688KBRACKET, COOLER COMPRESSOR

main88688-6B260iGDH306..LHD..G201902-202505

FRONT AIR CONDITIONER-MANUAL COOLER

main88688-6B260iGDH322..N;GDH321..6FC;GRH322..GSOB;GDH322..ARL,GCC,NZ,TH;GDH306,321..RHD..(G,J,N);GDH306,322..LHD..(J,P,Q)..GEN;GDH300,301,320,328,GRH300,320..BZ,GCC,NZ,PH,TH,VN;GD201902-202310

9009904349

main90099-04349

9009907065

main90099-07065¥90

9009907114

main90099-07114

9011908B42

main90119-08B42¥0

9011910367

main90119-10367¥110

90119T0553

main90119-T0553

90178T0019

main90178-T0019

9331915008

main93319-15008¥170

9415180800

main94151-80800¥80

15 parts on this diagram · 4 diagrams in section
