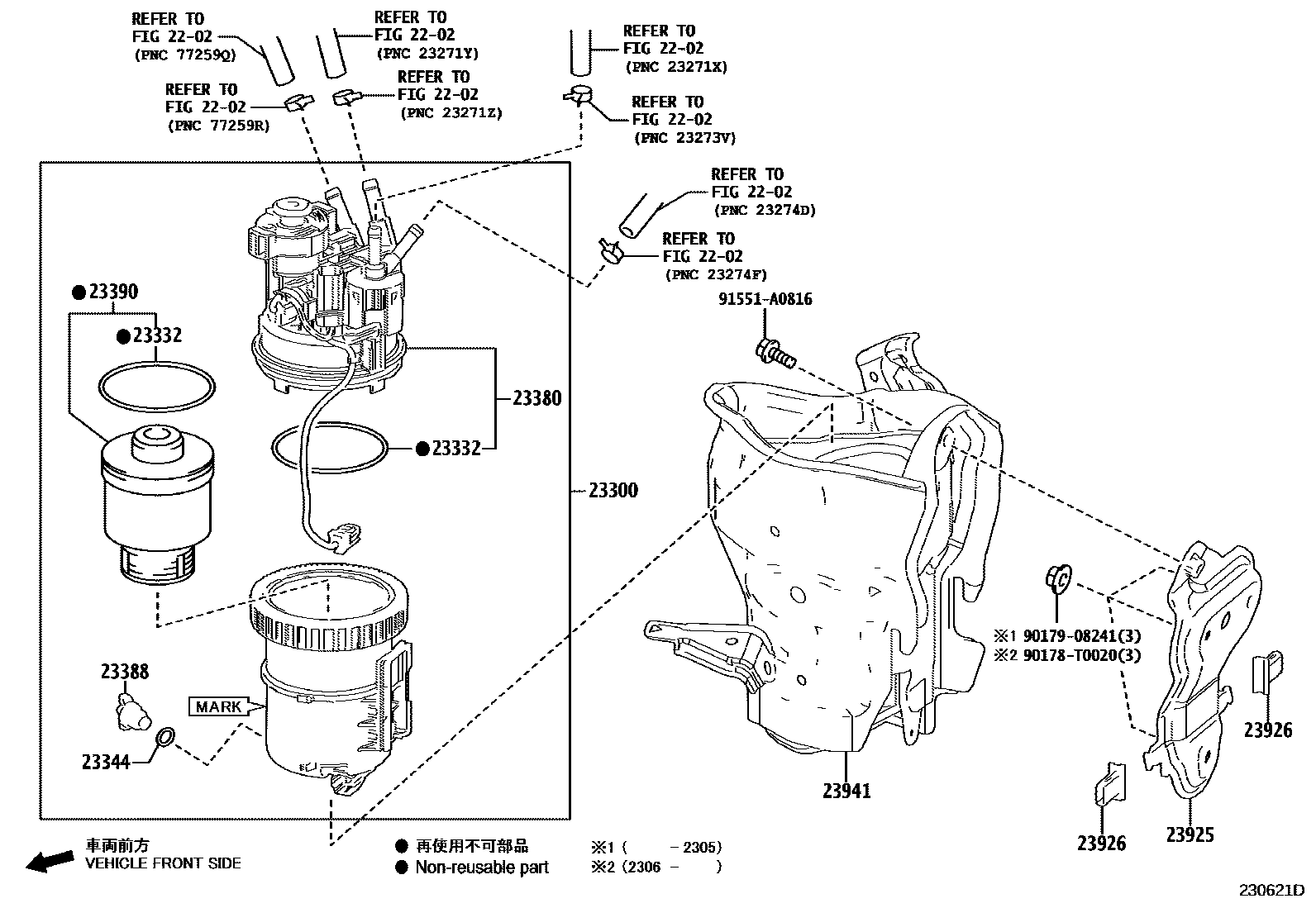

Toyota GRNVA/HIACE/MJSTY — FUEL FILTER

0001 1W(HEATER) 0007 1W/O(HEATER) 0011 1PRESSURIZED FUEL FILTER

2202

23300FILTER ASSY, FUEL

main23300-11240i1GDFTV..GDH322..RHD..P..GEN201902-202405

MARK=23300-11240

main23300-11250i1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6FC..D¥15,400201902

SOUTH AFRICA SPEC,MARK=23300-11250

main23300-11250i1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6FC..D¥15,400201902-202310

SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,MARK=23300-11250

main23300-11250i1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GDH301..LHD..SG..6FC..D¥15,400202405

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681,MARK=23300-11250

main23300-11250i1GDFTV..GDH300,320..RHD..5D..PSOB..GEN¥15,400201902-202505

MARK=23300-11250

main23300-11250i1GDFTV..GDH300,320..RHD..5D..PSOB..GEN¥15,400202405

PERU SPEC,MARK=23300-11250

main23300-11250i1GDFTV..GDH321..GEN¥15,400201902-202310

ARGENTINA SPEC,MARK=23300-11250

main23300-11250i1GDFTV..GDH321..GEN¥15,400201902-202505

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,MARK=23300-11250

main23300-11250i1GDFTV..GDH303,304..LHD..H;1GDFTV..GDH301..6FC..(NZ,TH);1GDFTV..GDH301..GSOB..6FC..N;1GDFTV..GDH322..6FC..(P,Q)..(ARL,GEN,NZ);1GDFTV..GDH300,303,32#..(D,G,J,N)..(AG¥15,400201902

PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,MARK=23300-11250

main23300-11250i1GDFTV..GDH301..RHD..SG..6FC..D..GEN¥15,400202208

BHUTAN SPEC,MARK=23300-11250

main23300-11250i1GDFTV..GDH301..RHD..SG..6FC..D..GEN¥15,400202208

BHUTAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681,MARK=23300-11250

main23300-11260i1GDFTV..GDH306..LHD;1GDFTV..GDH300..HPSOB;1GDFTV..GDH322..LHD..6F..P..GEN201903

MARK=23300-11260

main23300-VR010i1GDFTV..GDH322..TH202012

MARK=23300-11240

23332GASKET, ELEMENT(FOR FUEL FILTER)

main23344-0L070i1GDFTV..GDH322..TH¥270202012

main23344-11240i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D201902-202505

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i1GDFTV..GDH322..RHD..P..GEN¥340201902-202505

23380CAP ASSY, FUEL FILTER

main23380-11240i1GDFTV..GDH300,301,304,322..TH201902-202405

main23380-11250i1GDFTV..GDH321..GEN¥4,560201902-202310

ARGENTINA SPEC

main23380-11250i1GDFTV..GDH322..TH¥4,560201911-202012

main23380-11250i1GDFTV..GDH321..GEN¥4,560201902-202505

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700

main23380-11250i1GDFTV..GDH321..GEN¥4,560201902-202310

SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700

main23380-11250i1GDFTV..GDH300..HPSOB;1GDFTV..GDH303..LHD..H;1GDFTV..GDH301..GSOB..6FC..N;1GDFTV..GDH301..6FC..(NZ,TH);1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH322..6FC..(P,Q)..(¥4,560201902

PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700

main23380-11250i1GDFTV..GDH300..HPSOB;1GDFTV..GDH303..LHD..H;1GDFTV..GDH301..GSOB..6FC..N;1GDFTV..GDH301..6FC..(NZ,TH);1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH322..6FC..(P,Q)..(¥4,560201902

SOUTH AFRICA SPEC

main23380-11250i1GDFTV..GDH301..LHD..SG..6FC..N¥4,560202208

MONGOLIA SPEC

main23380-11250i1GDFTV..GDH301..LHD..SG..6FC..N¥4,560202208

BHUTAN SPEC

main23380-11250i1GDFTV..GDH301..LHD..SG..6FC..N¥4,560202208

HONG KONG SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6C *699,*681,W/C,WLTP

main23380-11250i1GDFTV..GDH301..LHD..SG..6FC..N¥4,560202208

BHUTAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681

main23380-11250i1GDFTV..GDH301..RHD..6F..N¥4,560202405

PERU SPEC

main23380-11250i1GDFTV..GDH301..RHD..6F..N¥4,560202405

PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681

main23380-VR010i1GDFTV..GDH322..TH202012

23388PLUG, FUEL FILTER DRAIN

main23388-0L041i1GDFTV..GDH322..RHD..(P,Q)..GEN¥390201902-202505

23390ELEMENT ASSY, FUEL FILTER

main23390-0L070i1GDFTV..GDH322..TH¥5,700202012

main23390-11240i1GDFTV..GDH322..TH¥5,700201902-202505

main23390-11260i1GDFTV..GDH300..SHP..6F..GEN201903

23925STAY, FUEL FILTER SUPPORT

main23925-11010i1GDFTV..GDH322..RHD..P..GEN¥1,880201902-202505

23926STAY, FUEL FILTER SUPPORT, NO.2

main23926-11010i1GDFTV..GDH322..Q..GEN¥90201902-202505

23941PROTECTOR, FUEL FILTER, NO.1

main23941-11010i1GDFTV..GDH322..Q..GEN¥7,500201902-202505

90178T0020

main90178-T0020

9017908241

main90179-08241¥80

91551A0816

main91551-A0816¥80

13 parts on this diagram · 3 diagrams in section
