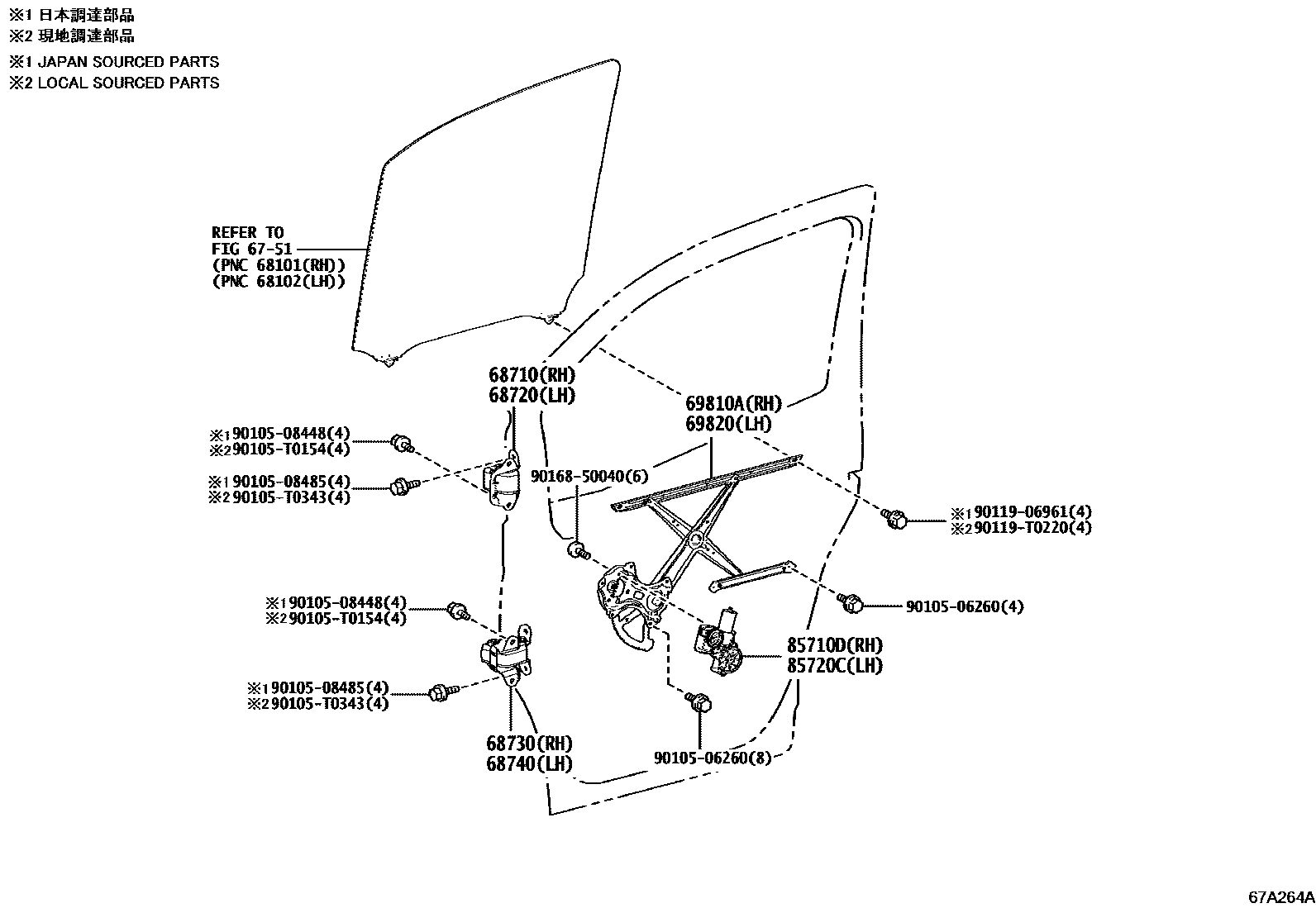

Toyota GRNVA/HIACE/MJSTY — FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-26030iGDH322..RHD..(P,Q)..GEN¥3,050201902-202505

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-26020iGDH322..RHD..(P,Q)..GEN¥3,050201902-202505

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-26020iGDH322..RHD..(P,Q)..GEN¥3,050201902-202505

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-26010iGDH322..RHD..(P,Q)..GEN¥3,050201902-202505

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69801-26060iGDH322..RHD..(P,Q)..GEN¥4,560201902-202505

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69802-26060iGDH322..RHD..(P,Q)..GEN¥4,560201902-202505

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-26060iGDH322..RHD..(P,Q)..GEN¥12,600201902-202506

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-26040iGDH322..RHD..(P,Q)..GEN¥12,600201902-202506

9010506260

main90105-06260¥60

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

90105T0154

main90105-T0154

90105T0343

main90105-T0343

9011906961

main90119-06961¥60

90119T0220

main90119-T0220

9016850040

main90168-50040¥70

17 parts on this diagram · 1 diagram in section
