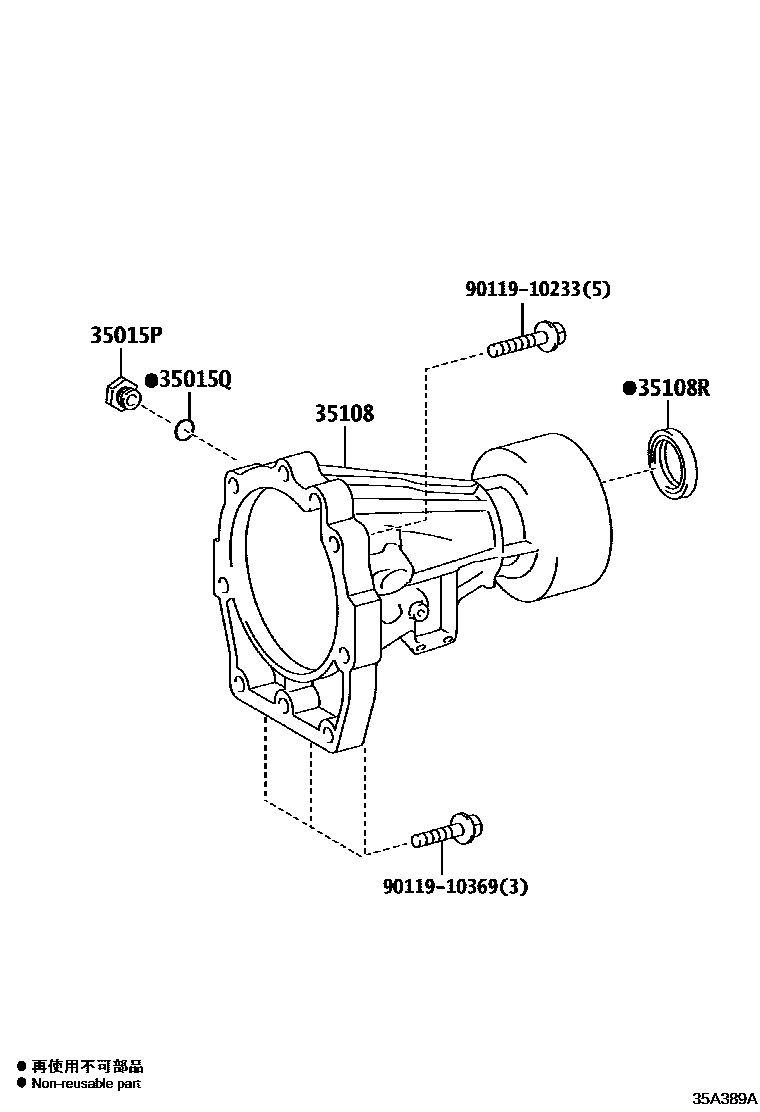

Toyota GRNVA/HIACE/MJSTY — EXTENSION HOUSING (ATM)

35015PPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGDH322..RHD..GSOB..6FC..D¥190201902-202404

main90341-18059iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN¥190201902-202506

main90341-18059iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)¥190201902

35015QRING, O(FOR TRANSMISSION CASE ADAPTER PLUG)

main90301-15004iGDH322..RHD..GSOB..6FC..D¥160201902-202404

main90301-15004iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN¥160201902-202506

main90301-15004iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)¥160201902

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-71040iGDH322..RHD..GSOB..6FC..D¥17,500201902-202404

main35108-71040iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN¥17,500201902-202506

main35108-71040iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)¥17,500201902

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-45037iGDH322..RHD..GSOB..6FC..D¥470201902-202404

main90311-45037iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN¥470201902-202506

main90311-45037iGDH306..RHD;GDH300..5D..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH300..4D..SP..6FC..ARL;GDH300,322..4D..(PSOB,SG)..6FC;GDH300,306..LHD..(SG,SP)..6FC..(D,J)¥470201902

9011910233

main90119-10233¥160

9011910369

main90119-10369¥110

6 parts on this diagram · 1 diagram in section
