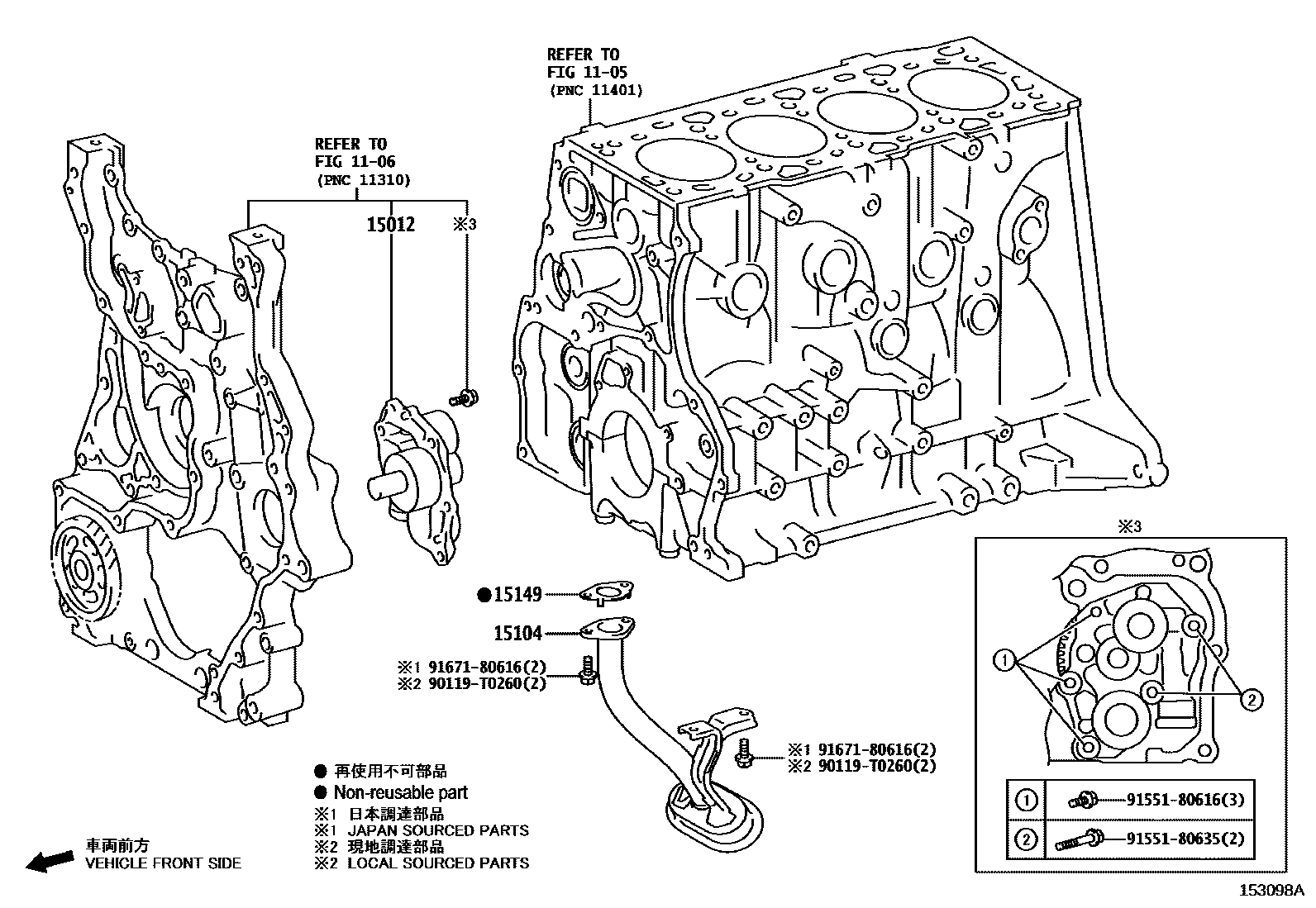

Toyota GRNVA/HIACE/MJSTY — ENGINE OIL PUMP

0001 1 0002 1

1105

1106

15012COVER SUB-ASSY, OIL PUMP

main15012-11030i1GDFTV..GDH322..RHD..P..GEN¥5,400201902-202407

15104STRAINER SUB-ASSY, OIL

main15104-0E060i1GDFTV..GDH328..D;1GDFTV..GDH320,322..AGT,BZ,TH202005

(L)

main15104-11230i1GDFTV..GDH322..RHD..(P,Q)..GEN¥4,570201902-202505

main15104-11230i1GDFTV..GDH328..D;1GDFTV..GDH320,322..AGT,BZ,TH¥4,570201906

(J)

main15104-31200i7GRFKS..GRH30#,32#201902

15149GASKET, OIL STRAINER FLANGE

main15149-0E010i1GDFTV..GDH328..D;1GDFTV..GDH320,322..AGT,BZ,TH201906

(L)

main15149-11120i1GDFTV..GDH322..RHD..P..GEN¥270201902-202505

(J)

90119T0260

main90119-T0260

9155180616

main91551-80616¥60

9155180635

main91551-80635¥80

9167180616

main91671-80616¥60

9 parts on this diagram · 2 diagrams in section
