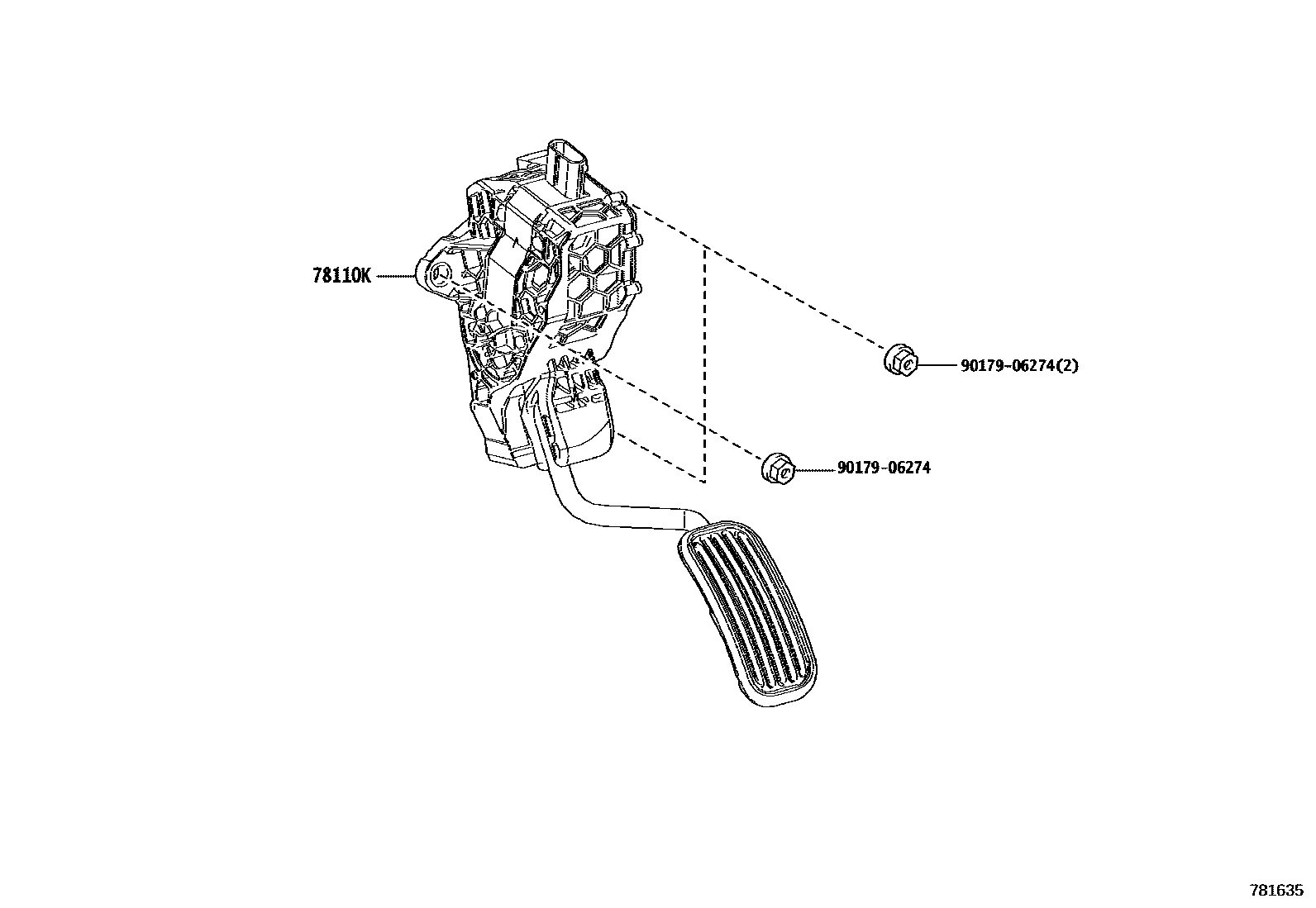

Toyota GRNVA/HIACE/MJSTY — ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-26010iGDH322..RHD..(P,Q)..GEN¥10,700201902-202005

sub78110-26011¥8,900

main78110-26010iGDH30#,320,321,322,GRH30#,320,322..RHD..(D,G,H,J,N)..(GEN,IDN,TH)¥10,700201902-202009

sub78110-26011¥8,900

main78110-26010iGDH322..RHD..(P,Q)..GEN¥10,700202006-202009

sub78110-26011¥8,900

main78110-26011iGDH322..RHD..P..GEN¥8,900202107-202202

sub78110-V3010¥8,000

main78110-26011iGDH322..RHD..P..GEN¥8,900202010-202106

sub78110-V3010¥8,000

main78110-26011iGDH30#,320,321,322,GRH30#,320,322..RHD..(D,G,H,J,N,Q)..(GEN,IDN,TH)¥8,900202010-202202

sub78110-V3010¥8,000

main78110-26020iGDH30#,32#,GRH300,301,303,32#..LHD201902-202009

sub78110-26021

main78110-26021iGDH30#,32#,GRH300,301,303,32#..LHD202010-202202

sub78110-V3030

main78110-26030iGDH300,301,303,320,321,322,GRH300,303,320,321..ARL,NZ201902-202009

sub78110-26031

main78110-26031iGDH300,301,303,320,321,322,GRH300,303,320,321..ARL,NZ202010-202202

sub78110-V3020¥8,500

main78110-V3010iGDH300..5D..GEN;GDH322..RHD..GSOB..N;GDH301..RHD..GSOB..6FC;GDH300..RHD..4D..PSOB..GEN;GDH300,322..RHD..4D..(GSOB,SP)..6F;GDH301,303,304,320,321,322,GRH30#,320,322.¥8,000202203

main78110-V3010iGDH300..RHD..4D..SP..6FC..GEN¥8,000202203-202505

main78110-V3010iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D¥8,000202203-202404

main78110-V3020iGDH300,301,303,320,321,322..ARL,NZ¥8,500202203-202506

main78110-V3030iGDH306..G;GDH301,322..GSOB..6F..N202203-202505

main78110-V3030iGDH321..GEN202203-202310

main78110-V3030iGDH322..LHD..6FC;GDH301..LHD..GSOB..6FC;GDH301,306..LHD..SG..(D,J,N);GDH322..LHD..SG..6F..(GCC,GEN);GDH301,322..LHD..GSOB..6F..(D,P);GDH300,303,304,320,328,GRH300,3202203

9017906274

main90179-06274¥70

2 parts on this diagram · 2 diagrams in section
