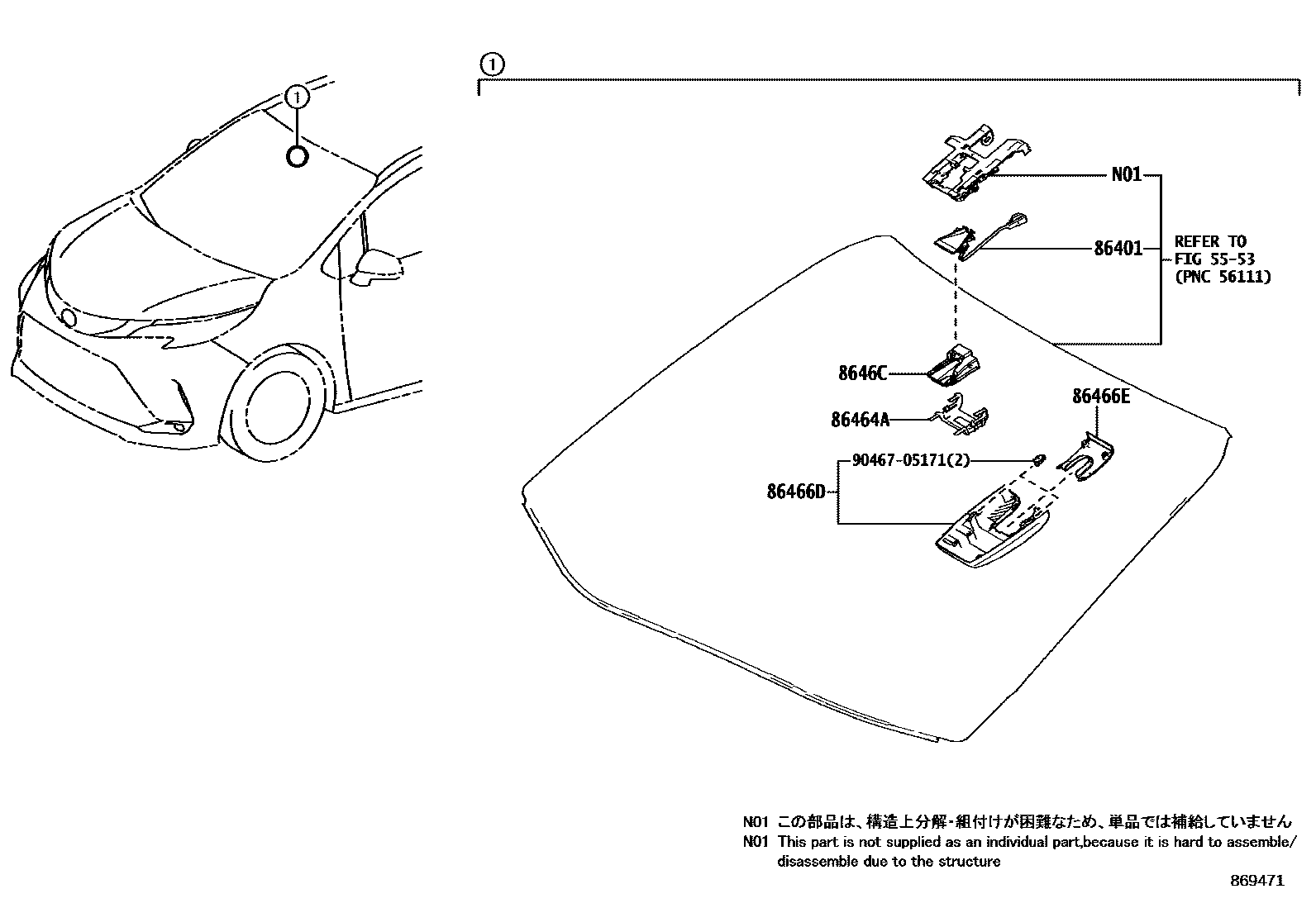

Toyota GRANVIA HYBRID — PRE-COLLISION SYSTEM

5553

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-08030iAXLH4#202211

86464ALATCH, FORWARD RECOGNITION

main86464-0E020iAXLH4#202211

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-08070iAXLH4#202211

86466ECOVER, FORWARD RECOGNITION, NO.2

main86467-08010iAXLH4#..E,L,N,W,X202211

main86467-08020iAXLH4#..P,V202211

8646CCAMERA, FORWARD RECOGNITION

main8646C-08040iAXLH40202211-202404

*614

main8646C-08060iAXLH4#202404-202408

main8646C-08061iAXLH4#202408

9046705171

main90467-05171¥60

7 parts on this diagram · 1 diagram in section
