Toyota GRANVIA HYBRID — OIL COOLER & TUBE (HEV OR BEV OR FCEV)

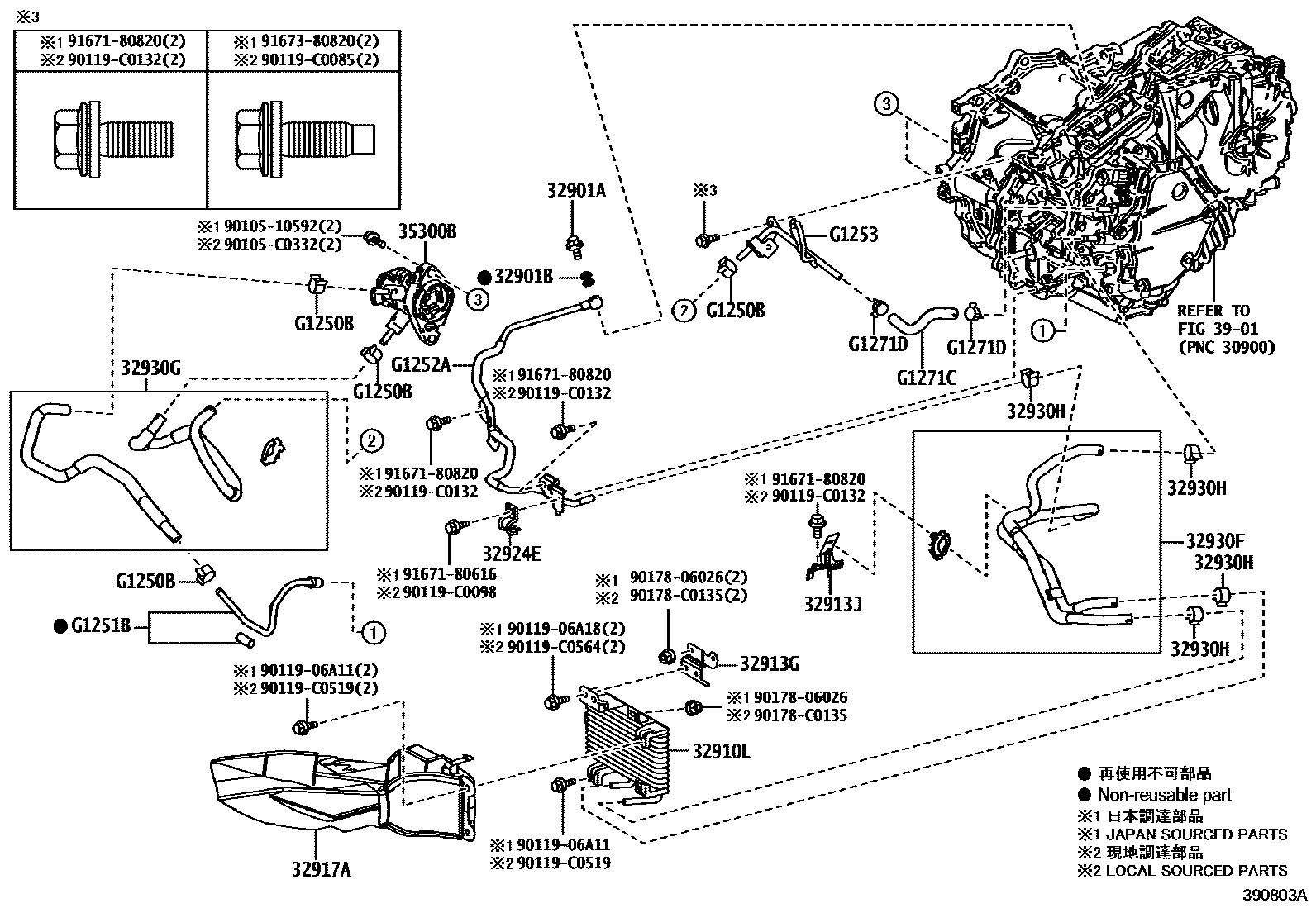

Parts diagram

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039i¥390202211

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037i¥80202211

32910LCOOLER ASSY, OIL

main32910-08020i202211

32913GBRACKET, TRANSMISSION OIL COOLER

main32913-08030i202211

32913JBRACKET, TRANSMISSION OIL COOLER, NO.2

main32913-0R020i202211

32917ADUCT, TRANSMISSION OIL COOLER AIR

main32917-08030i202211

32924ECLAMP, OIL COOLER TUBE, NO.2

main32924-48010i¥200202211

32930FHOSE ASSY, TRANSMISSION OIL COOLER, NO.1

main32930-08070i202211

32930GHOSE ASSY, TRANSMISSION OIL COOLER, NO.2

main32930-0R050i202211

32930HCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004i¥180202211

(J)

main90466-C0024i202211

(L)

35300BPUMP ASSY, OIL W/MOTOR

main35300-48070i¥41,100202211

3901

G1250BCLIP, NO.1(FOR MOTOR COOLING PIPE)

main90466-16004i¥180202211

(J)

main90466-C0024i202211

(L)

G1251BPIPE, MOTOR COOLING, NO.1

mainG12510R010i202211

G1252APIPE, MOTOR COOLING, NO.2

mainG12520R030i202211

G1253PIPE, MOTOR COOLING, NO.3

mainG12540E020i202211

G1271CHOSE, MOTOR COOLING, NO.1

mainG12710R020i202211

G1271DCLIP, NO.1(FOR MOTOR COOLING HOSE)

main90466-16004i¥180202211

(J)

main90466-C0024i202211

(L)

9010510592

main90105-10592¥160

90105C0332

main90105-C0332

9011906A11

main90119-06A11¥60

9011906A18

main90119-06A18¥80

90119C0085

main90119-C0085

90119C0098

main90119-C0098

90119C0132

main90119-C0132

90119C0519

main90119-C0519

90119C0564

main90119-C0564

9017806026

main90178-06026¥80

90178C0135

main90178-C0135

9167180616

main91671-80616¥60

9167180820

main91671-80820¥80

9167380820

main91673-80820¥80

32 parts on this diagram · 1 diagram in section
