Toyota GRANVIA HYBRID — MOUNTING

12281BHANGER, ENGINE, NO.1

main12281-25030iA25..AXLH4#¥4,100202211

(J)

main12281-F2010iA25..AXLH4#202211

(L)

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-F0210iA25..AXLH4#202211

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-F0170iA25..AXLH4#202211

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-F0140iA25..AXLH4#202211

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-25031iA25..AXLH4#¥3,720202211

(J)

main12315-F0030iA25..AXLH4#202211

(L)

12318STAY, ENGINE MOUNTING, LH

main12318-F0140iA25..AXLH4#202211

12341SPACER, ENGINE MOUNTING

main12341-F0050iA25..AXLH4#202211

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-F0180iA25..AXLH4#202211

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-F0240iA25..AXLH4#202211

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12306-F0100iA25..AXLH4#202211

23825AGUARD, FUEL DELIVERY

main23825-25010iA25..AXLH4#¥3,590202211

(J)

main23825-F0010iA25..AXLH4#202211

(L)

90105C0423

main90105-C0423

90105C0424

main90105-C0424

9011906A16

main90119-06A16¥60

9011910996

main90119-10996¥120

9011910999

main90119-10999¥190

9011912439

main90119-12439¥190

9011912440

main90119-12440¥240

90119C0513

main90119-C0513

90119C0515

main90119-C0515

90119C0516

main90119-C0516

90119C0521

main90119-C0521

90119C0527

main90119-C0527

9017810039

main90178-10039¥100

9017812027

main90178-12027¥100

90178C0136

main90178-C0136

90178C0138

main90178-C0138

91553G1040

main91553-G1040¥290

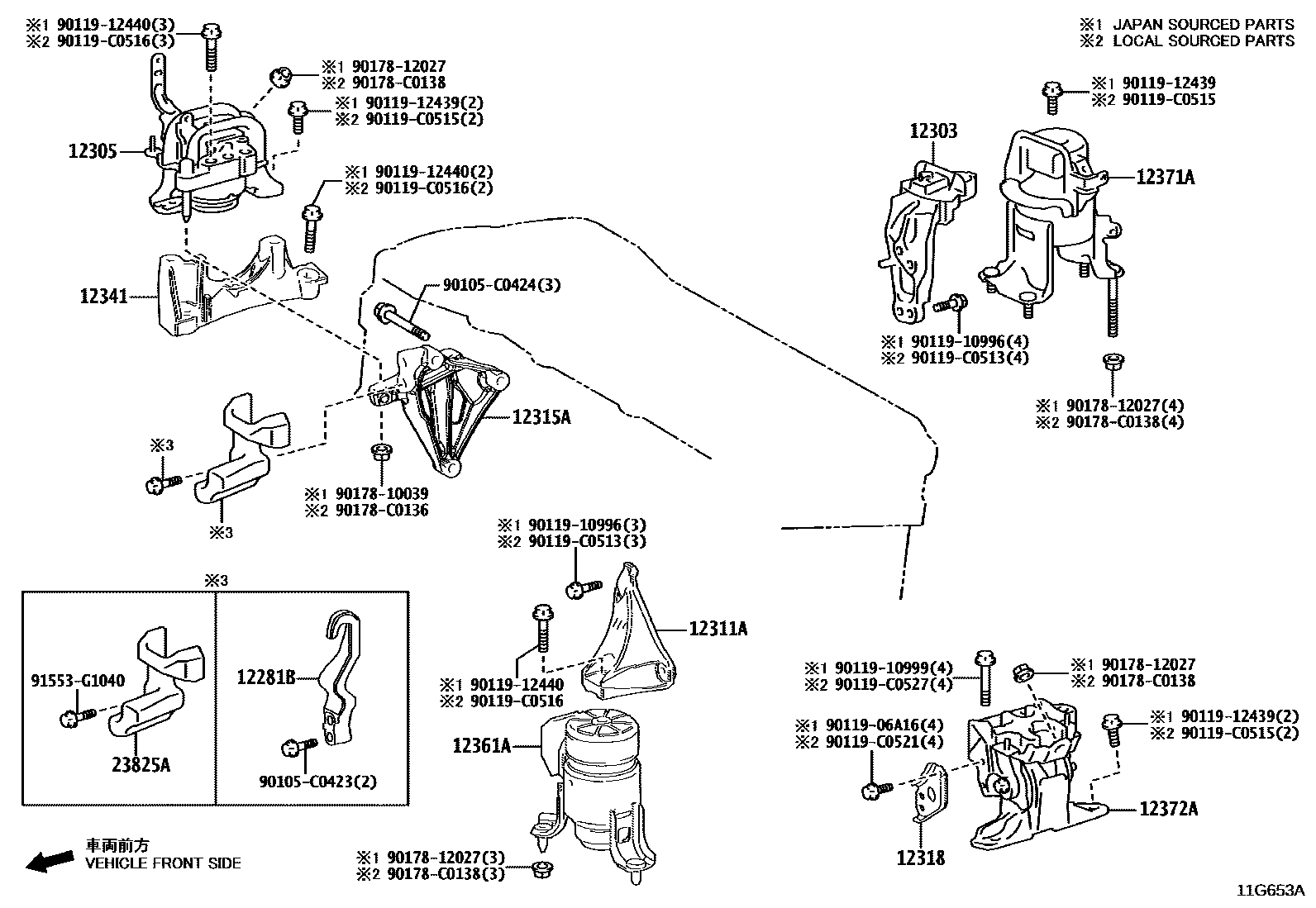

28 parts on this diagram · 1 diagram in section
