Toyota GRANVIA HYBRID — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-08070iAXLH4#202211

69503BKEY, CUT

main69515-0R160iAXLH4#202211

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-08010iAXLH40..E,N202211-202404

main89072-08020iAXLH40..L,P,X202211-202404

main89072-08120iAXLH40..E,N202404

main89072-08130iAXLH4#..L,P,V,W,X202404

89745CBATTERY, TRANSMITTER

main89745-K0010iAXLH4#¥440202211

CR2450

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-08070iAXLH40..E,N202211-202401

sub8990H-08071

main8990H-08071iAXLH40..E,N202401-202404

main8990H-08080iAXLH40..L,P,X202211-202401

sub8990H-08081

main8990H-08081iAXLH40..L,P,X202401-202404

main8990H-08110iAXLH40..E,N202404

main8990H-08120iAXLH4#..L,P,V,W,X202404

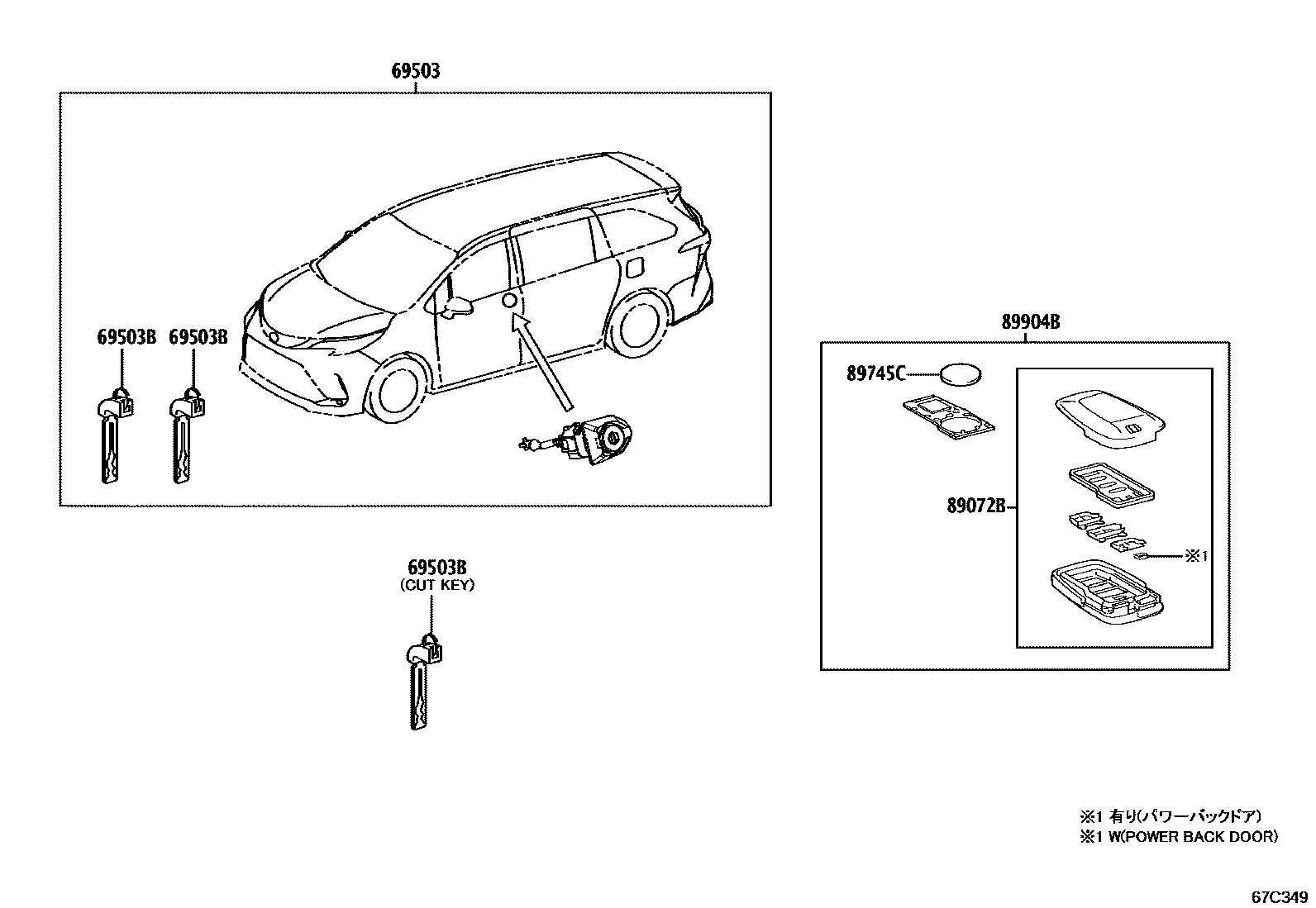

5 parts on this diagram · 1 diagram in section
