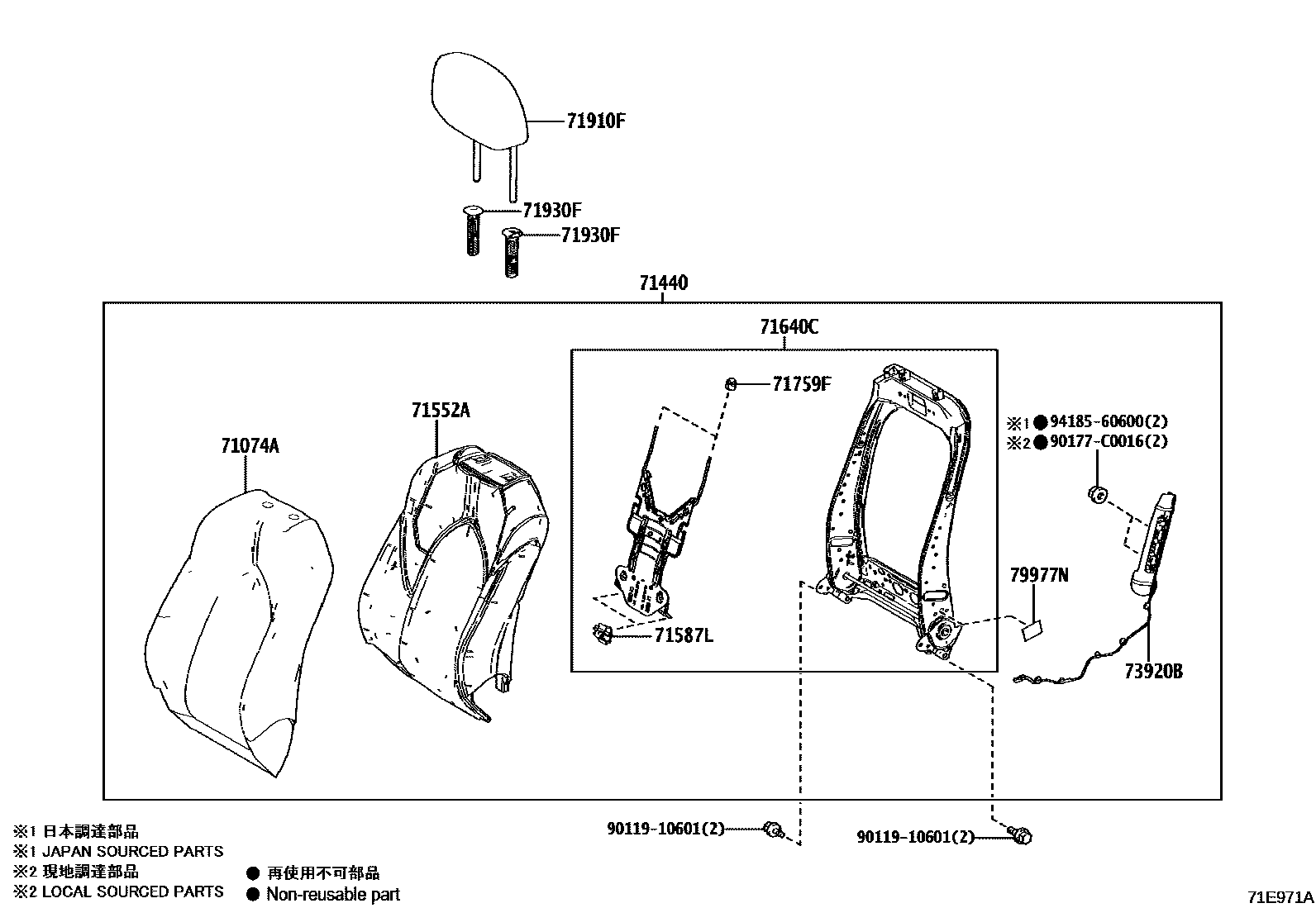

Toyota GRANVIA HYBRID — FRONT SEAT & SEAT TRACK
71074ACOVER SUB-ASSY, FRONT SEATBACK, LH
GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB)
71440BACK ASSY, FRONT SEAT, LH
GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
GRAY,TRIM1#
NEUTRAL BEIGE,TRIM4#
GRAY,TRIM1#
BOLD BLACK,TRIM2#
DARK BROWN,TRIM4#
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
BOLD BLACK,TRIM2#
DARK BROWN,TRIM4#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
FROMAGE,TRIM0#
NOBLE BROWN,TRIM4#
71552APAD, FRONT SEATBACK, LH
71587LPROTECTOR, FRONT SEATBACK EDGE, LH
71640CSPRING ASSY, FRONT SEATBACK, LH
71759FHOOK, FRONT SEATBACK, LH
71910FHEADREST ASSY, FRONT SEAT, LH
GRAY,TRIM1#
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
NOBLE BROWN,TRIM4#
FROMAGE,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
NOBLE BROWN,TRIM4#
NOBLE BROWN,TRIM4#
71930FSUPPORT ASSY, FRONT SEAT HEADREST, LH
W(LOCK),FROMAGE,TRIM0#
W(LOCK),FROMAGE,TRIM00
W(LOCK),NEUTRAL WARM GRAY,TRIM10
W(LOCK),NEUTRAL WARM GRAY,TRIM1#
W(LOCK),NEUTRAL WARM GRAY,TRIM1#
W(LOCK),BLACK,TRIM11,2#,4#
W(LOCK),BLACK,TRIM2#
W(LOCK),BLACK,TRIM2#,4#
W(LOCK),BLACK,TRIM0#,1#,2#,40,41
W(LOCK),BLACK,TRIM2#,4#
W(LOCK),BLACK,TRIM00,1#,2#,4#
W(LOCK),NEUTRAL BEIGE,TRIM4#
W(LOCK),NEUTRAL BEIGE,TRIM41
W/O(LOCK),FROMAGE,TRIM0#
W/O(LOCK),FROMAGE,TRIM00
W/O(LOCK),NEUTRAL WARM GRAY,TRIM10
W/O(LOCK),NEUTRAL WARM GRAY,TRIM1#
W/O(LOCK),NEUTRAL WARM GRAY,TRIM1#
W/O(LOCK),BLACK,TRIM0#,1#,2#,40,41
W/O(LOCK),BLACK,TRIM11,2#,4#
W/O(LOCK),BLACK,TRIM2#,4#
W/O(LOCK),BLACK,TRIM2#,4#
W/O(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM00,1#,2#,4#
W/O(LOCK),NEUTRAL BEIGE,TRIM41
W/O(LOCK),NEUTRAL BEIGE,TRIM4#
73920BAIRBAG ASSY, FRONT SEAT, LH
79977NFELT, SEATBACK
9011910601
90177C0016
main90177-C0016
9418560600
13 parts on this diagram · 12 diagrams in section
