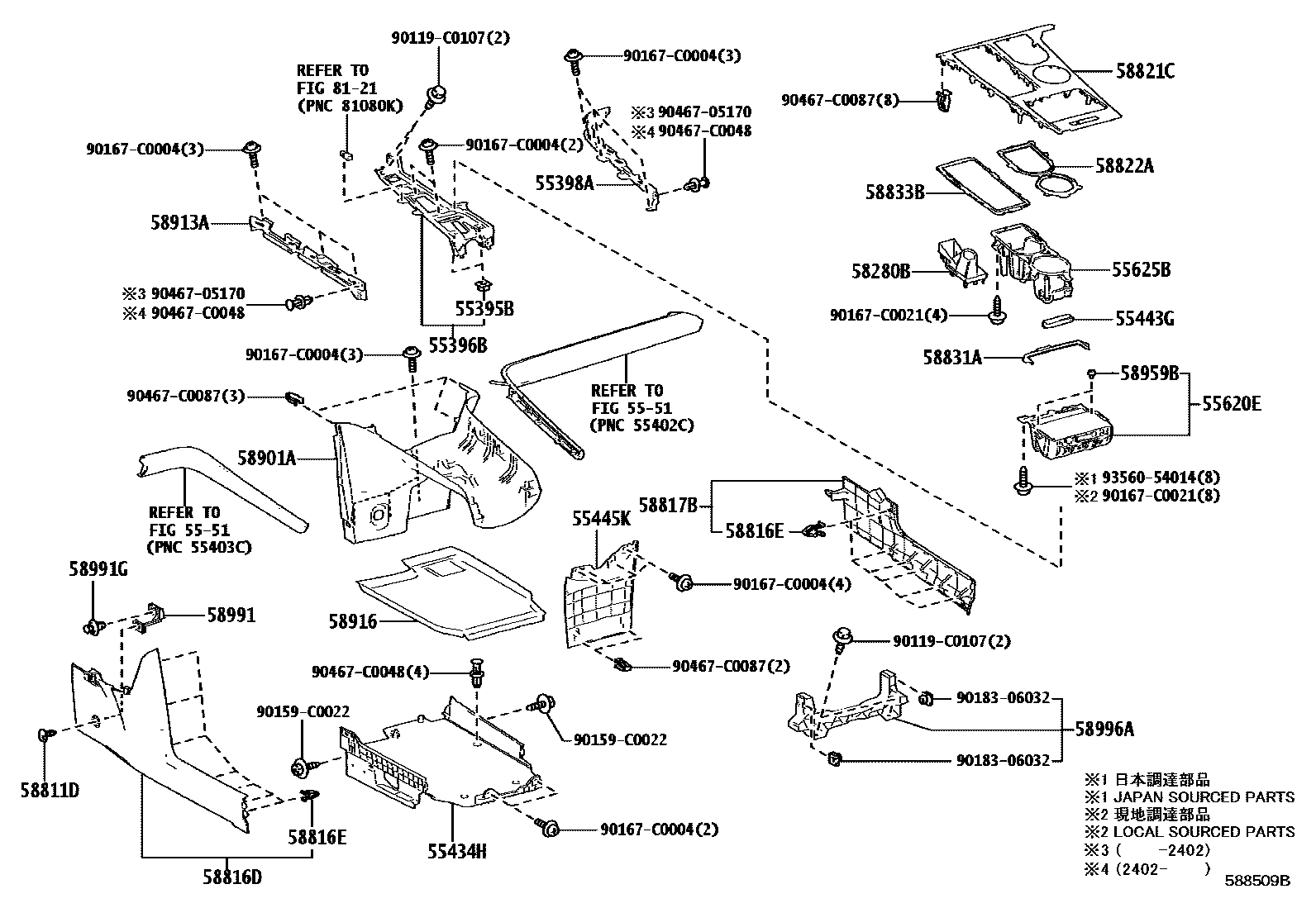

Toyota GRANVIA HYBRID — CONSOLE BOX & BRACKET

0001 1 0002 1

55395BBRACKET, CONSOLE MOUNTING, NO.3

main55395-08020iAXLH4#..E,L,P,V,W,X202211

55396BBRACKET, CONSOLE MOUNTING, NO.4

main55396-08030iAXLH4#..E,L,P,V,W,X202211

55398ABRACKET, CONSOLE MOUNTING, NO.6

main55398-08030iAXLH4#..E,L,P,V,W,X202211

55434HPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-08080-B0iAXLH40..E,X202211-202509

NEUTRAL WARM GRAY,TRIM1#

main55434-08080-C0iAXLH40..L,P,X202211

BLACK,TRIM2#

main55434-08080-C0iAXLH40..N202211

BLACK,TRIM0#,2#,4#

main55434-08080-C0iAXLH45202404

BLACK,TRIM2#,4#

55443GKNOB, INSTRUMENT PANEL BOX DOOR

main55443-08030iAXLH4#..W,X202211-202509

main55443-08040iAXLH4#..L,P,V202211

55445KTRAY, INSTRUMENT PANEL

main55445-08140-B0iAXLH40..N202211-202509

NEUTRAL WARM GRAY,TRIM1#

main55445-08140-C0iAXLH40..E202211

BLACK,TRIM0#,2#,4#

main55445-08140-C0iAXLH40..L,P,X202211

BLACK,TRIM2#

main55445-08140-C0iAXLH45202404

BLACK,TRIM2#,4#

5551

55620EHOLDER ASSY, INSTRUMENT PANEL CUP

main55620-08100-E0iAXLH40..X202211-202509

ANODIZED DARK BROWN,TRIM1#,2#,4#

main55620-08100-E0iAXLH45..W202404-202509

ANODIZED DARK BROWN,TRIM2#,4#

main55620-08100-E0iAXLH40..E202211

ANODIZED DARK BROWN,TRIM1#,2#

main55620-08110-E0iAXLH45..V202404-202509

WOLF WOOD,TRIM2#,4#

main55620-08110-E0iAXLH45..V202404-202509

REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB),WOLF WOOD,TRIM0#,2#,4#

main55620-08110-E0iAXLH40..P202211-202509

WOLF WOOD,TRIM0#,2#,4#

main55620-08110-E0iAXLH40..P202211-202509

WOLF WOOD,TRIM0#,1#,2#,4#

55625BTRAY, INSTRUMENT PANEL CUP HOLDER

main55625-08040iAXLH40..N202211-202509

main55625-08050iAXLH4#..L,P,V202211

58280BBOOT ASSY, SHIFT LEVER

main58280-08050-C0iAXLH40..X202211-202509

BLACK,TRIM0#,1#,2#,4#

main58280-08050-C0iAXLH40..P202211

BLACK,TRIM0#,2#,4#

main58280-08050-C0iAXLH40..P202211

BLACK,TRIM1#,2#

main58280-08050-C0iAXLH45202404

BLACK,TRIM2#,4#

58811DCLIP(FOR CONSOLE BOX)

main90467-08186-C3iAXLH40..E202211

BLACK,TRIM2#

sub90467-08186¥120

main90467-08186-C3iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#

sub90467-08186¥120

main90467-08186-C3iAXLH40..P202211

BLACK,TRIM0#,2#,4#

sub90467-08186¥120

main90467-08186-C3iAXLH40..P202211

BLACK,TRIM0#,1#,2#,4#

sub90467-08186¥120

main90467-08186-C3iAXLH45202404

BLACK,TRIM2#,4#

sub90467-08186¥120

main90467-08186-P7iAXLH40..N202211-202509

NEUTRAL WARM GRAY,TRIM1#

sub90467-08186¥120

main90467-08186-P7iAXLH40..N202211-202509

NEUTRAL WARM GRAY,TRIM10

sub90467-08186¥120

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-08090-B0iAXLH40..X202211-202509

NEUTRAL WARM GRAY,TRIM10

main58816-08090-B0iAXLH40..X202211-202509

NEUTRAL WARM GRAY,TRIM1#

main58816-08090-C0iAXLH40..L202211

BLACK,TRIM2#

main58816-08090-C0iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#

main58816-08090-C0iAXLH40..P202211

BLACK,TRIM0#,2#,4#

main58816-08090-C0iAXLH40..P202211

BLACK,TRIM0#,1#,2#,4#

main58816-08090-C0iAXLH45202404

BLACK,TRIM2#,4#

58816ECLIP, CONSOLE BOX INSERT, FRONT

main90467-05171iAXLH40¥60202211-202310

RH

main90467-05171iAXLH40¥60202211-202309

LH

main90467-C0087iAXLH4#..E,L,P,V,W,X202309

LH

main90467-C0087iAXLH40..E,L,P,X202310

RH

58817BINSERT, CONSOLE BOX, FRONT NO.2

main58817-08090-B0iAXLH40..N202211-202509

NEUTRAL WARM GRAY,TRIM1#

main58817-08090-B0iAXLH40..N202211-202509

NEUTRAL WARM GRAY,TRIM10

main58817-08090-C0iAXLH40..L202211

BLACK,TRIM0#,1#,2#,4#

main58817-08090-C0iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#

main58817-08090-C0iAXLH40..P202211

BLACK,TRIM0#,2#,4#

main58817-08090-C0iAXLH40..P202211

BLACK,TRIM2#

main58817-08090-C0iAXLH45202404

BLACK,TRIM2#,4#

58821CPANEL, CONSOLE, UPPER

main58821-08120-E0iAXLH40..E202211

ANODIZED DARK BROWN,TRIM1#,2#

main58821-08120-E0iAXLH40..X202211-202509

ANODIZED DARK BROWN,TRIM1#,2#,4#

main58821-08120-E0iAXLH45..W202404-202509

ANODIZED DARK BROWN,TRIM2#,4#

main58821-08130-E0iAXLH40..P202211-202509

WOLF WOOD,TRIM0#,2#,4#

main58821-08130-E0iAXLH40..P202211-202509

WOLF WOOD,TRIM0#,1#,2#,4#

main58821-08130-E0iAXLH40..X202404-202509

REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB),WOLF WOOD,TRIM0#,2#,4#

main58821-08130-E0iAXLH45..V202404-202509

WOLF WOOD,TRIM2#,4#

58822APANEL, CONSOLE, UPPER REAR

main58822-08070iAXLH40..N202211-202509

main58822-08080iAXLH4#..L,P,V202211

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-08090iAXLH4#..W,X202211-202509

main58831-08100iAXLH4#..L,P,V202211

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-08130iAXLH4#..W,X202211-202509

main58833-08140iAXLH4#..L,P,V202211

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-08050-B0iAXLH40..E,X202211-202509

NEUTRAL WARM GRAY,TRIM1#

main58901-08050-C0iAXLH40..L,P,X202211

BLACK,TRIM0#,2#,4#

main58901-08050-C0iAXLH40..L,P,X202211

BLACK,TRIM2#

main58901-08050-C0iAXLH45202404

BLACK,TRIM2#,4#

58913APANEL, BOX, NO.3

main58913-08050-B0iAXLH40..E,X202211-202509

NEUTRAL WARM GRAY,TRIM1#

main58913-08050-C0iAXLH40..L,P,X202211

BLACK,TRIM0#,2#,4#

main58913-08050-C0iAXLH40..L,P,X202211

BLACK,TRIM2#

main58913-08050-C0iAXLH45202404

BLACK,TRIM2#,4#

58916MAT, BOX BOTTOM

main58916-08100-B0iAXLH40..N202211-202509

NEUTRAL WARM GRAY,TRIM10

main58916-08100-B0iAXLH40..X202211-202509

NEUTRAL WARM GRAY,TRIM1#

main58916-08100-C0iAXLH40..N202211

BLACK,TRIM0#,1#,2#,4#

main58916-08100-C0iAXLH40..P202211

BLACK,TRIM0#,2#,4#

main58916-08100-C0iAXLH40..P202211

BLACK,TRIM2#

main58916-08100-C0iAXLH45202404

BLACK,TRIM2#,4#

main58916-08100-C0iAXLH40..X202211-202509

BLACK,TRIM0#,11,2#,4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iAXLH4#..E,L,P,V,W,X¥100202211

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-08060iAXLH4#..E,L,P,V,W,X202211

58991GCLIP

main90467-C0047-B0iAXLH40..E,X202211-202509

NEUTRAL WARM GRAY,TRIM1#

main90467-C0047-C0iAXLH40..L,P,X202211

BLACK,TRIM0#,2#,4#

main90467-C0047-C0iAXLH40..L,P,X202211

BLACK,TRIM2#

main90467-C0047-C0iAXLH45202404

BLACK,TRIM2#,4#

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-08040iAXLH4#..E,L,P,V,W,X202211

8121

90119C0107

main90119-C0107

90159C0022

main90159-C0022

90167C0004

main90167-C0004

90167C0021

main90167-C0021

9018306032

main90183-06032¥70

9046705170

main90467-05170¥80

90467C0048

main90467-C0048

90467C0087

main90467-C0087

9356054014

main93560-54014¥60

35 parts on this diagram · 2 diagrams in section
