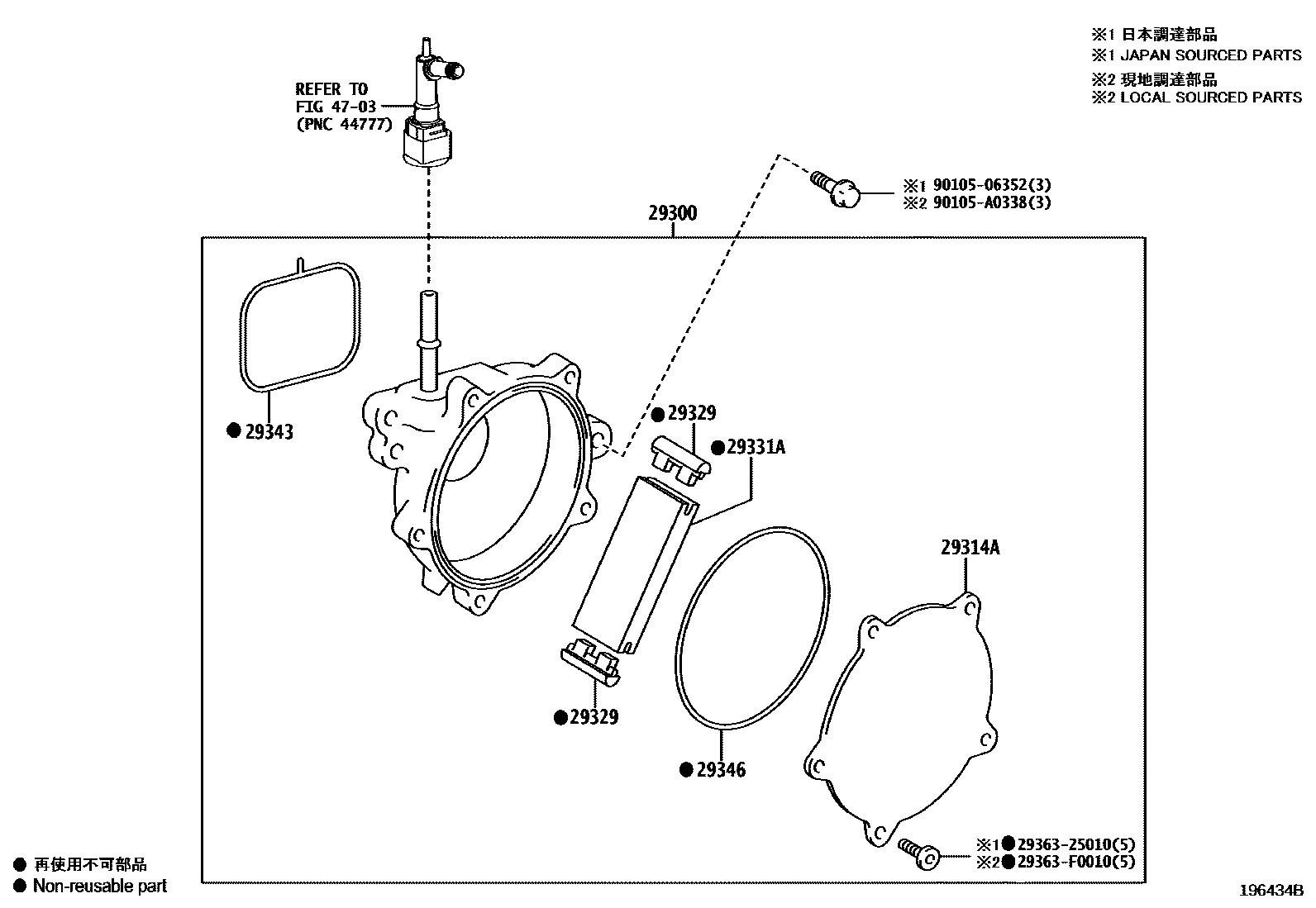

Toyota GRAND HIGHLANDER — VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-25012iT24AFTS..TASA1#¥15,700202306

(J)

main29300-F0012iT24AFTS..TASH15202306

(L)

29314ACOVER, END

main29314-25010iT24AFTS..TASA1#¥900202306

(J)

main29314-F0010iT24AFTS..TASH15202306

(L)

29329CAP, VACUUM PUMP VANE

main29329-25011iT24AFTS..TASA1#¥900202306

(J)

main29329-F0011iT24AFTS..TASH15202306

(L)

29331AVANE, VACUUM PUMP

main29331-37010iT24AFTS..TASA1#¥590202306

(J)

main29331-F0010iT24AFTS..TASH15202306

(L)

29343RING, O VACUUM PUMP, NO.1

main29343-25010iT24AFTS..TASA1#¥340202306

(J)

main29343-F0010iT24AFTS..TASH15202306

(L)

29346RING, O VACUUM PUMP COVER

main29346-25010iT24AFTS..TASA1#¥340202306

(J)

main29346-F0010iT24AFTS..TASH15202306

(L)

4703

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010¥200

29363F0010SCREW, HOLLOW VACUUM PUMP

main29363-F0010

9010506352

main90105-06352¥60

90105A0338

main90105-A0338

11 parts on this diagram · 1 diagram in section
