Toyota GRAND HIGHLANDER — VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

1701

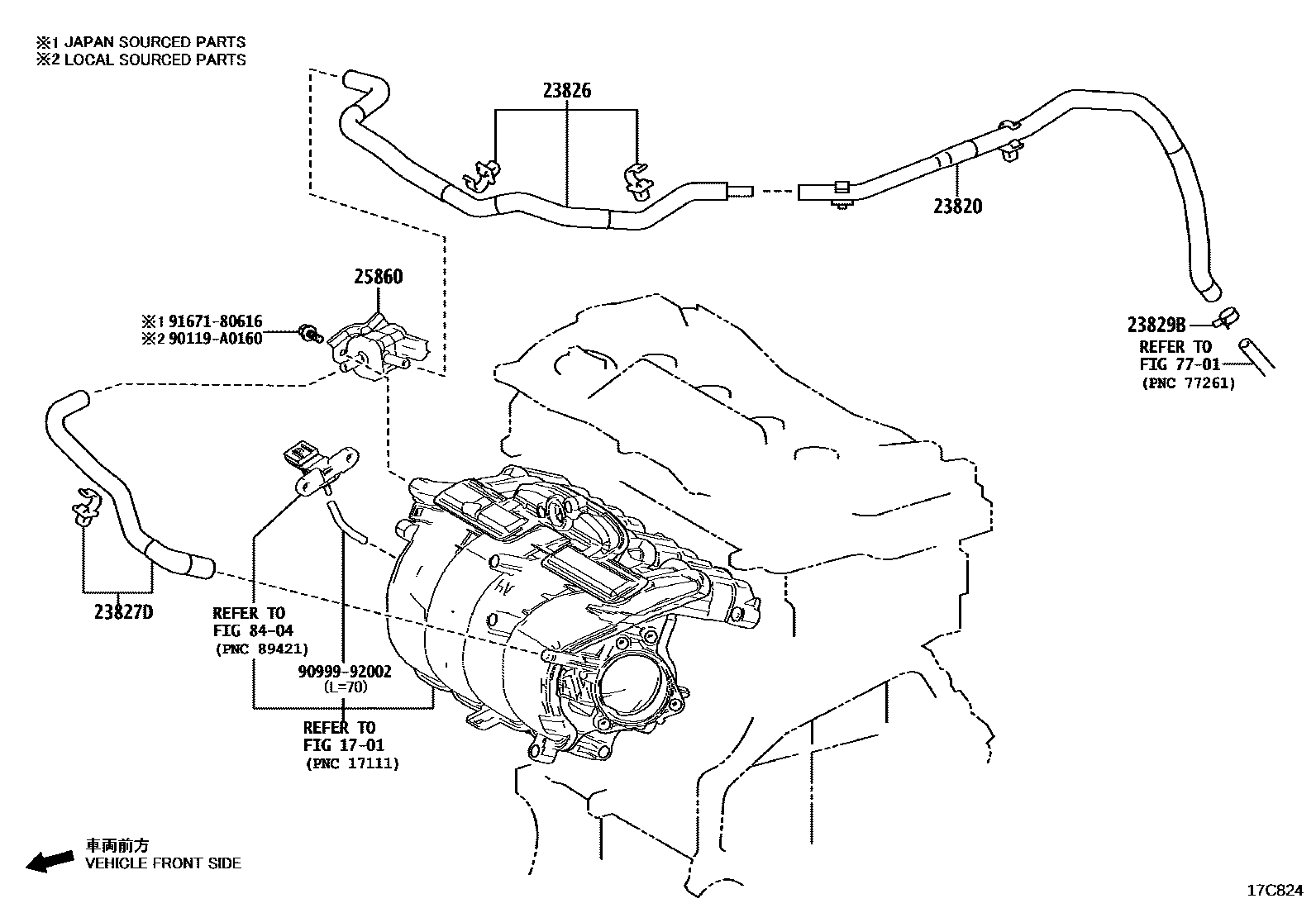

23820HOSE ASSY, FUEL VAPOR FEED

main23820-F0370iT24AFTS..TASA1#202306

main23820-F0380iA25AFXS..AASH1#202306

main23820-F0480iT24AFTS..TASH15202306

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25AFXS..AASH1#¥2,480202306

(J)

main23820-F0081iA25AFXS..AASH1#202306

(L)

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25AFXS..AASH1#¥1,590202306

(J)

main23820-F0150iA25AFXS..AASH1#202306

(L)

main23827-25160iT24AFTS..TASH15202306

main23827-F0190iT24AFTS..TASA1#202306

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-A0032iT24AFTS..TASA1#202306

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25AFXS..AASH1#¥3,480202306

(J)

main25860-25080iT24AFTS..TASA1#¥3,480202306

main25860-F0020iA25AFXS..AASH1#202306

(L)

7701

8404

90119A0160

main90119-A0160

9099992002

main90999-92002¥460

9167180616

main91671-80616¥60

11 parts on this diagram · 4 diagrams in section
