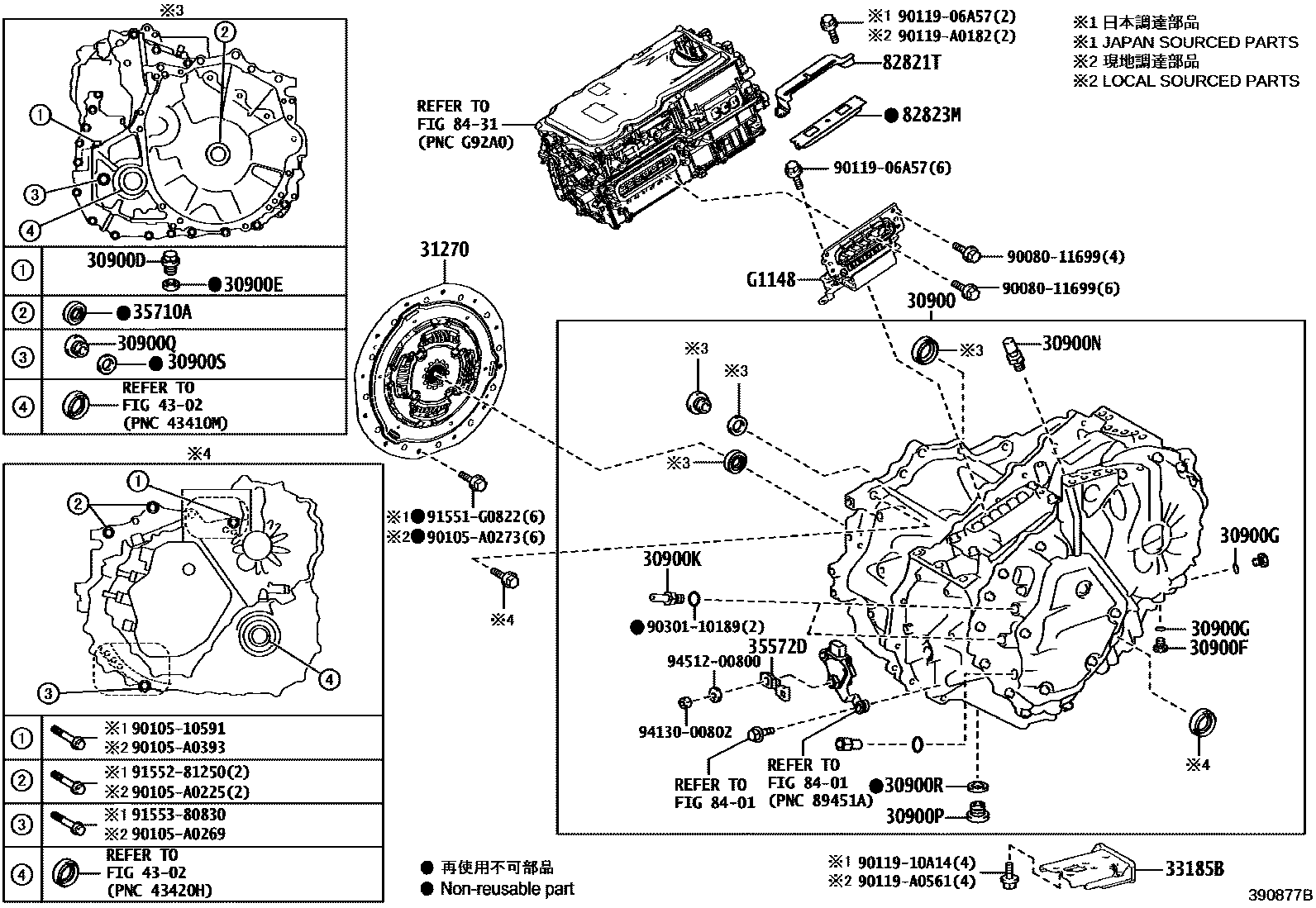

Toyota GRAND HIGHLANDER — TRANSAXLE ASSY(HEV OR BEV OR FCEV)

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-08011i202306

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060i¥240202306

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008i¥110202306

30900FPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)

main90341-13001i¥130202306

30900GGASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)

main90301-10189i¥170202306

30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)

main90404-13010i¥310202306

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03223i¥170202306

30900PPLUG, DRAIN(HEV)

main90341-18016i¥190202306

30900QPLUG, FILLER(HEV)

main35150-45010i¥280202306

main90341-18016i¥190202306

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008i¥110202306

30900SGASKET, FILLER PLUG(HEV)

main90430-18008i¥110202306

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-48040i¥33,100202306

33185BBRACKET, TRANSAXLE UNDER STOPPER

main33185-0E010i202306

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-33070i¥620202306

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-29003i¥290202306

4302

82821TCOVER, CONNECTOR

main82821-47240i¥1,740202306

82823MCAP, TERMINAL

main82823-47040i¥700202306

8401

8431

G1148CABLE, MOTOR

mainG114848110i202306

9008011699

main90080-11699¥110

9010510591

main90105-10591¥120

90105A0225

main90105-A0225

90105A0269

main90105-A0269

90105A0273

main90105-A0273

90105A0393

main90105-A0393

9011906A57

main90119-06A57¥60

9011910A14

main90119-10A14¥120

90119A0182

main90119-A0182

90119A0561

main90119-A0561

9030110189

main90301-10189¥170

91551G0822

main91551-G0822¥80

9155281250

main91552-81250¥190

9155380830

main91553-80830¥80

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

37 parts on this diagram · 4 diagrams in section
