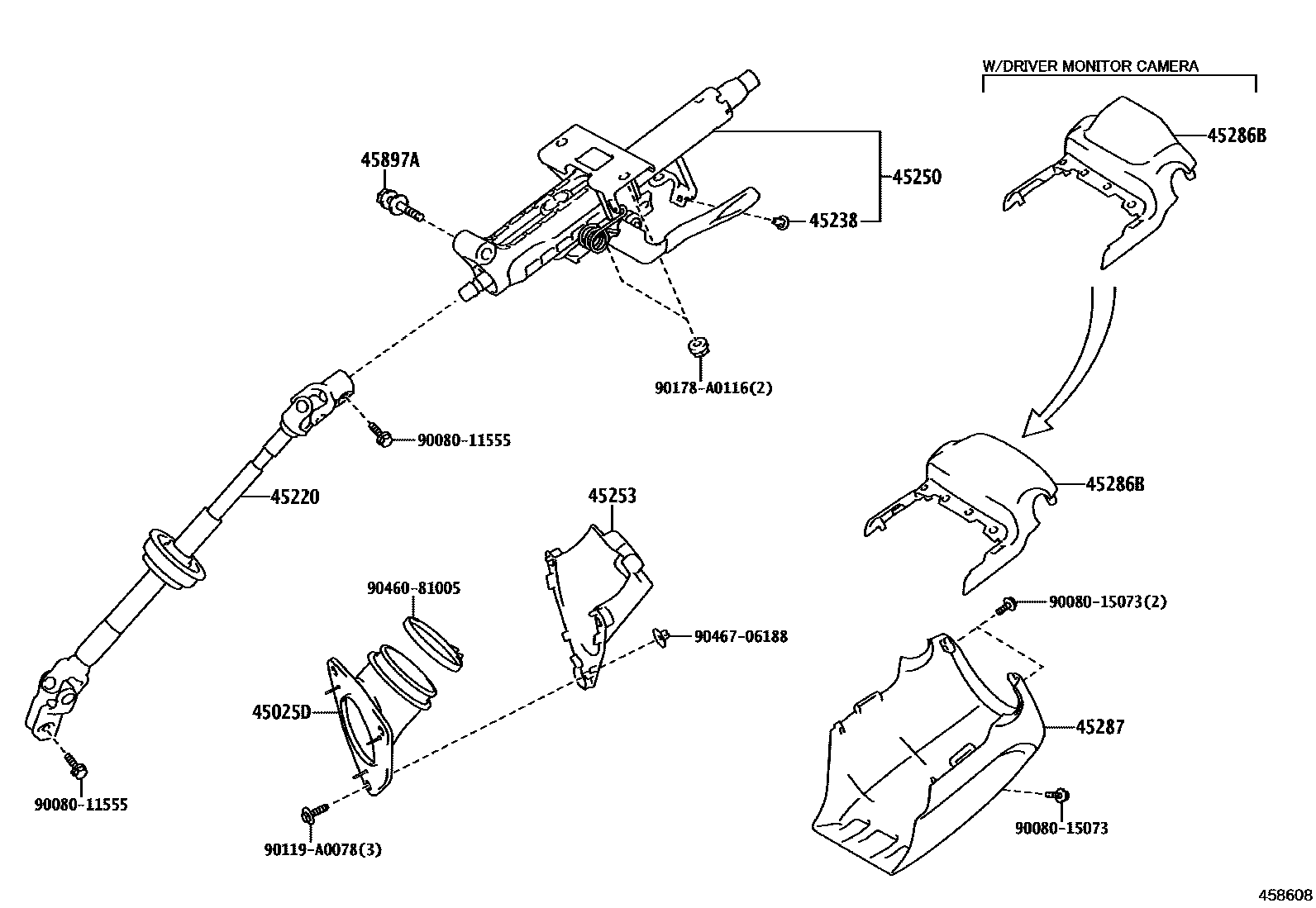

Toyota GRAND HIGHLANDER — STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0E100iAASH1#,TASA1#,TASH15202306

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0E140iAASH1#,TASA1#,TASH15202306

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iAASH1#,TASA1#,TASH15¥70202306

45250COLUMN ASSY, STEERING

main45250-06B00iAASH1#,TASA1#,TASH15202306

45253COVER, STEERING COLUMN HOLE

main45253-0E130iAASH1#,TASA1#,TASH15202306

45286BCOVER, STEERING COLUMN, UPR

main45286-0E110-C0iAASH1#,TASA1#..G,M,N202306

BLACK,TRIM1#,2#

main45286-0E110-C0iAASH1#,TASA1#..G,M,N202306

BLACK,TRIM1#,2#,4#

main45286-0E110-C0iAASH1#,TASA1#..G,M,N202306

PUERTO RICO SPEC,BLACK,TRIM1#,2#,4#

main45286-0E120-C0iTASA15,TASH15..Z202306

BLACK,TRIM1#,2#,4#

45287COVER, STEERING COLUMN, LWR

main45287-0E150-C0iAASH1#,TASA1#..G,M,N202306

BLACK,TRIM1#,2#

main45287-0E150-C0iAASH1#,TASA1#..G,M,N202306

BLACK,TRIM1#,2#,4#

45897ABOLT, TILT STEERING PAWL SET

main90119-10A34iAASH1#,TASA1#,TASH15¥190202306

9008011555

main90080-11555

9008015073

main90080-15073

90119A0078

main90119-A0078¥80

90178A0116

main90178-A0116

9046081005

main90460-81005¥310

9046706188

main90467-06188¥160

14 parts on this diagram · 1 diagram in section
