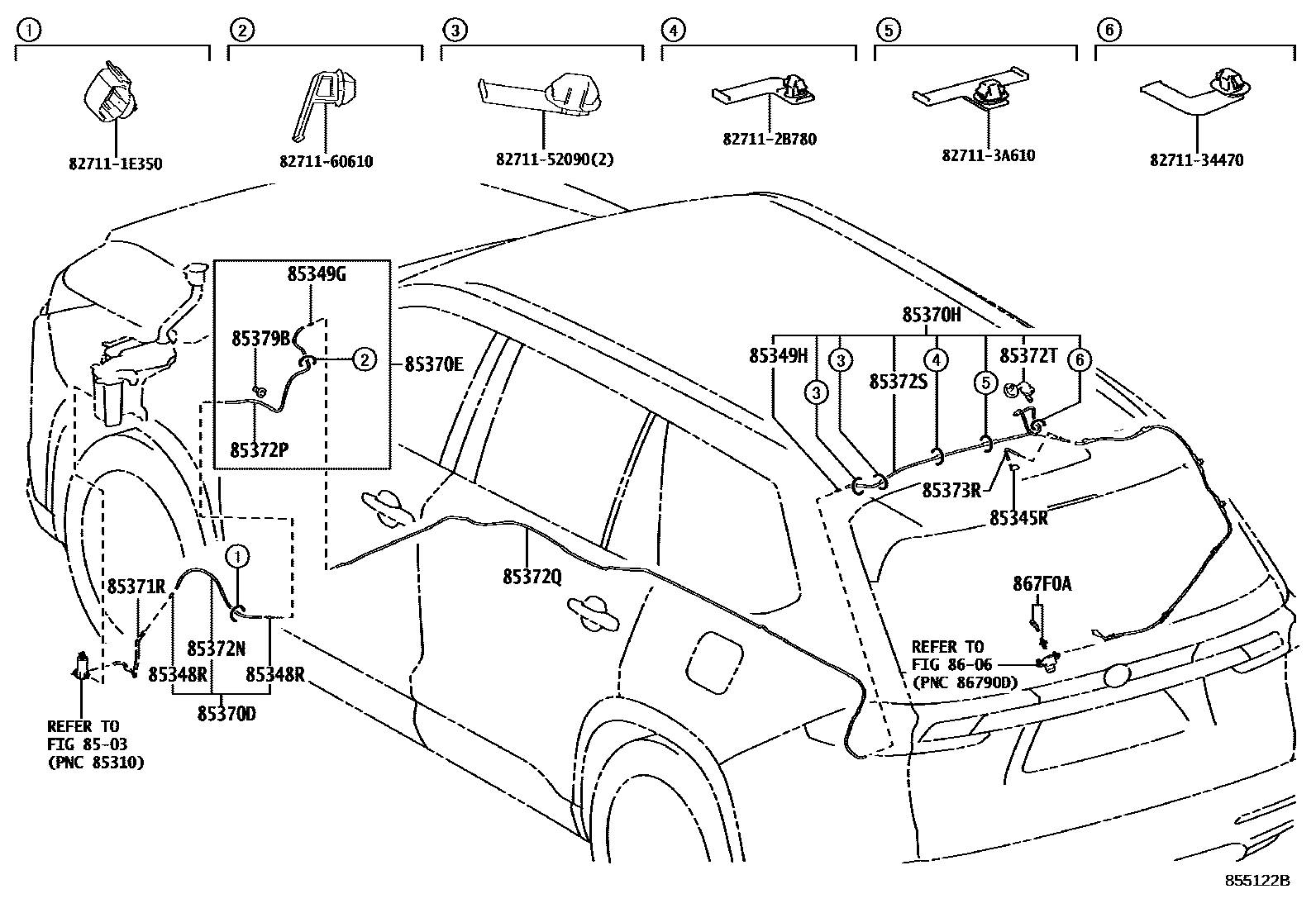

Toyota GRAND HIGHLANDER — REAR WASHER

8503

85345RNOZZLE, REAR WASHER

main85391-0E090iAASH1#,TASA1#,TASH15202306

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-0E010iAASH1#,TASA1#,TASH15202306

85349GJOINT, REAR WASHER HOSE, NO.2

main85375-0E010iAASH1#,TASA1#,TASH15202306

85349HJOINT, REAR WASHER HOSE, NO.3

main85375-0E010iAASH1#,TASA1#,TASH15202306

85370DHOSE ASSY, REAR WASHER, NO.1

main85370-0E470iAASH1#,TASA1#,TASH15202306

85370EHOSE ASSY, REAR WASHER, NO.2

main85370-0E780iAASH1#,TASA1#,TASH15202306

85370HHOSE ASSY, REAR WASHER, NO.4

main85370-0E800iAASH1#,TASA1#,TASH15202306

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90068-33092iAASH1#,TASA1#,TASH15202306

L=480

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90068-33366iAASH1#,TASA1#,TASH15202306

L=610

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90068-33430iAASH1#,TASA1#,TASH15202306

L=730

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90068-33431iAASH1#,TASA1#,TASH15202306

L=3250

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90068-33432iAASH1#,TASA1#,TASH15202306

L=1190

85372TGROMMET, WASHER

main85373-48050iAASH1#,TASA1#,TASH15¥440202306

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90068-33025iAASH1#,TASA1#,TASH15202306

L=120

85379BGROMMET, WASHER, A

main85379-12850iAASH1#,TASA1#,TASH15¥0202306

8606

867F0ANOZZLE ASSY, CAMERA CLEANER, NO.1

main867F0-0E080iAASH1#,TASA1#,TASH15202306

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350¥180

827112B780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B780¥230

8271134470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34470¥110

827113A610WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A610¥190

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090¥80

8271160610WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60610¥120

24 parts on this diagram · 1 diagram in section
