Toyota GRAND HIGHLANDER — REAR SEAT & SEAT TRACK

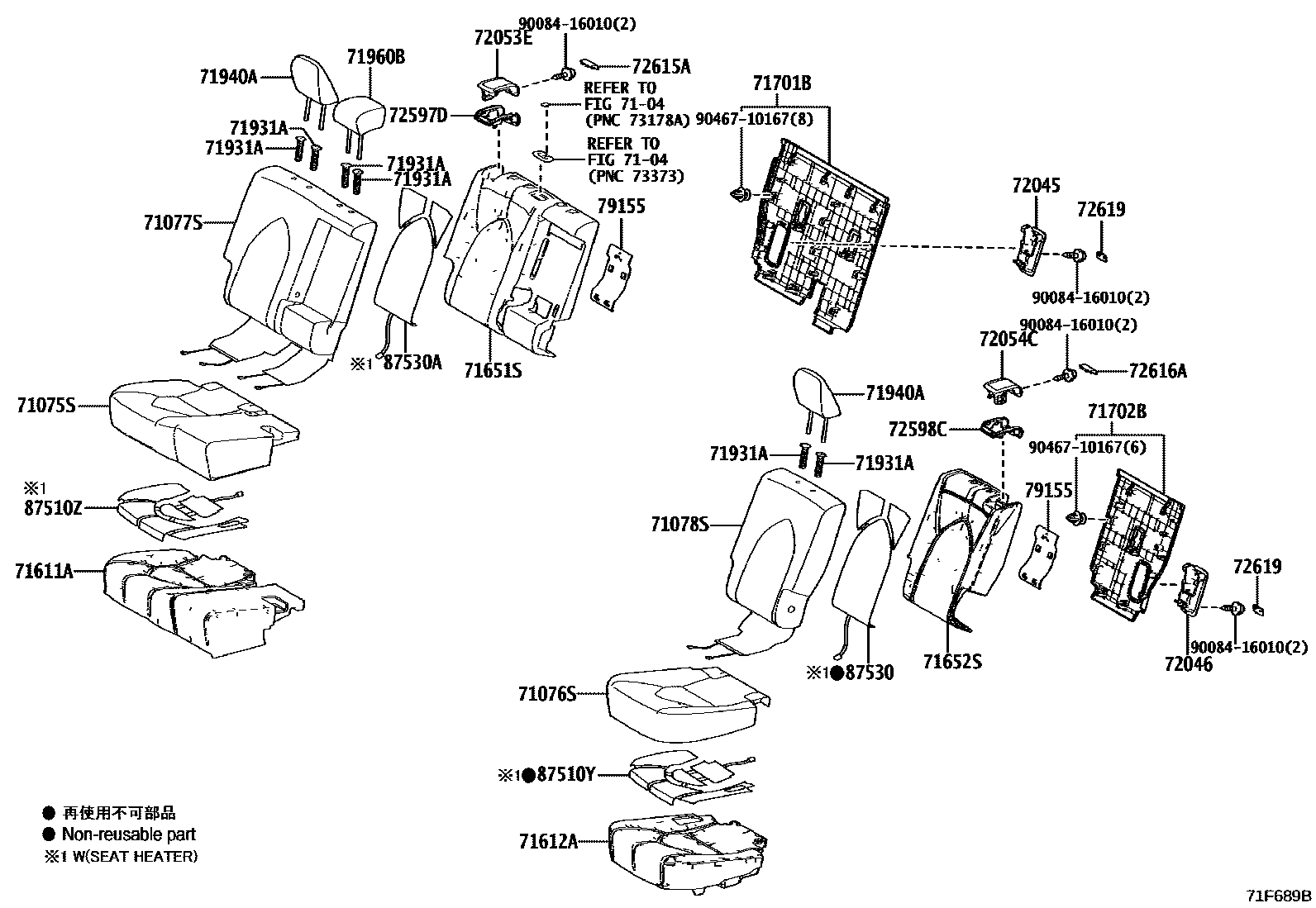

Parts diagram
7104
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
main71075-0EA00-B1i202306-202412
LT GRAY,TRIM1#
main71075-0EA00-C1i202306-202412
BLACK,TRIM2#
main71075-0EA01-B1i202501
LT.GRAY,TRIM1#
main71075-0EA01-C1i202501
BLACK,TRIM2#
main71075-0EA40-B0i202306-202412
LT GRAY,TRIM1#
main71075-0EA40-C0i202306-202412
BLACK,TRIM2#
main71075-0EA41-B0i202501
LT.GRAY,TRIM1#
main71075-0EA41-C0i202501
BLACK,TRIM2#
main71075-0EA60-B2i202306-202412
LT GRAY,TRIM1#
main71075-0EA60-C2i202306-202412
BLACK,TRIM2#
main71075-0EA60-E2i202306-202412
MD BROWN,TRIM4#
main71075-0EA61-B2i202501
LT.GRAY,TRIM1#
main71075-0EA61-C2i202501
BLACK,TRIM2#
main71075-0EA61-E2i202501
MD.BROWN,TRIM4#
main71075-0EA80-B3i202306-202412
LT GRAY,TRIM1#
main71075-0EA80-C2i202306-202412
BLACK,TRIM2#
main71075-0EA80-E2i202306-202412
MD BROWN,TRIM4#
main71075-0EA81-B3i202501
LT.GRAY,TRIM1#
main71075-0EA81-C2i202501
BLACK,TRIM2#
main71075-0EA81-E2i202501
MD.BROWN,TRIM4#
71076SCOVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71076-0E730-B1i202306-202412
LT GRAY,TRIM1#
main71076-0E730-C1i202306-202412
BLACK,TRIM2#
main71076-0E731-B1i202501
LT.GRAY,TRIM1#
main71076-0E731-C1i202501
BLACK,TRIM2#
main71076-0E740-B1i202306-202412
LT GRAY,TRIM1#
main71076-0E740-C1i202306-202412
BLACK,TRIM2#
main71076-0E741-B1i202501
LT.GRAY,TRIM1#
main71076-0E741-C1i202501
BLACK,TRIM2#
main71076-0E750-B2i202306-202412
LT GRAY,TRIM1#
main71076-0E750-C2i202306-202412
BLACK,TRIM2#
main71076-0E750-E1i202306-202412
MD BROWN,TRIM4#
main71076-0E751-B2i202501
LT.GRAY,TRIM1#
main71076-0E751-C2i202501
BLACK,TRIM2#
main71076-0E751-E1i202501
MD.BROWN,TRIM4#
main71076-0E780-B2i202306-202412
LT GRAY,TRIM1#
main71076-0E780-C1i202306-202412
BLACK,TRIM2#
main71076-0E780-E1i202306-202412
MD BROWN,TRIM4#
main71076-0E781-B2i202501
LT.GRAY,TRIM1#
main71076-0E781-C1i202501
BLACK,TRIM2#
main71076-0E781-E1i202501
MD.BROWN,TRIM4#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-0EB90-B0i202306
LT GRAY,TRIM1#
main71077-0EB90-C0i202306
BLACK,TRIM2#
main71077-0EC30-B0i202306
LT GRAY,TRIM1#
main71077-0EC30-C0i202306
BLACK,TRIM2#
main71077-0EC50-B2i202306
LT GRAY,TRIM1#
main71077-0EC50-B3i202306
LT GRAY,TRIM1#
main71077-0EC50-C3i202306
BLACK,TRIM2#
main71077-0EC50-C4i202306
BLACK,TRIM2#
main71077-0EC50-E2i202306
MD.BROWN,TRIM4#
main71077-0EC70-B3i202306
LT GRAY,TRIM1#
main71077-0EC70-C1i202306
BLACK,TRIM2#
main71077-0EC70-E2i202306
MD.BROWN,TRIM4#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-0EA80-B0i202306
LT GRAY,TRIM1#
main71078-0EA80-C0i202306
BLACK,TRIM2#
main71078-0EB20-B0i202306
LT GRAY,TRIM1#
main71078-0EB20-C0i202306
BLACK,TRIM2#
main71078-0EB40-B2i202306
LT GRAY,TRIM1#
main71078-0EB40-B3i202306
LT GRAY,TRIM1#
main71078-0EB40-C3i202306
BLACK,TRIM2#
main71078-0EB40-C4i202306
BLACK,TRIM2#
main71078-0EB40-E2i202306
MD.BROWN,TRIM4#
main71078-0EB60-B3i202306
LT GRAY,TRIM1#
main71078-0EB60-C1i202306
BLACK,TRIM2#
main71078-0EB60-E2i202306
MD.BROWN,TRIM4#
71611APAD, REAR SEAT CUSHION, RH
main71611-0E250i202306
REAR NO.1 SEAT-BENCH SEAT
main71611-0E260i202306
main71611-0E270i202306
71612APAD, REAR SEAT CUSHION, LH
main71612-0E200i202306
main71612-0E210i202306
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-0E310i202306
REAR NO.1 SEAT-BENCH SEAT
main71651-0E320i202306
main71651-0E330i202306
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-0E280i202306
REAR NO.1 SEAT-BENCH SEAT
main71652-0E290i202306
main71652-0E300i202306
71701BBOARD SUB-ASSY, REAR SEATBACK, RH
main71701-0E060i202306
REAR NO.1 SEAT-BENCH SEAT
main71701-0E070i202306
71702BBOARD SUB-ASSY, REAR SEATBACK, LH
main71702-0E050i202306
71931ASUPPORT, REAR SEAT HEADREST
main71930-0R070-C0i202306
W(LOCK),BLACK,TRIM1#,2#,4#
main71930-0R070-C0i202306
W(LOCK),BLACK,TRIM1#,2#
main71930-0R070-C0i202306
W(LOCK),REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM1#,2#
main71931-0R050-C0i202306
W/O(LOCK),BLACK,TRIM1#,2#,4#
main71931-0R050-C0i202306
W/O(LOCK),BLACK,TRIM1#,2#
main71931-0R050-C0i202306
W/O(LOCK),REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM1#,2#
71940AHEADREST ASSY, REAR SEAT
main71940-0E590-B0i202306
LT GRAY,TRIM1#
main71940-0E590-C0i202306
BLACK,TRIM2#
main71940-0E600-B2i202306
LT GRAY,TRIM1#
main71940-0E600-C2i202306
BLACK,TRIM2#
main71940-0E610-B0i202306
LT GRAY,TRIM1#
main71940-0E610-C0i202306
BLACK,TRIM2#
main71940-0E610-E0i202306
MD BROWN,TRIM4#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-0E420-B0i202306
LT GRAY,TRIM1#
main71960-0E420-C0i202306
BLACK,TRIM2#
72045COVER SUB-ASSY, RR SEAT TRACK, OUTER RH
main72045-0E010-C0i202306
BLACK,TRIM1#,2#
main72045-0E010-C0i202306
BLACK,TRIM1#,2#,4#
72046COVER SUB-ASSY, REAR SEAT TRACK, OUTER LH
main72045-0E010-C0i202306
BLACK,TRIM1#,2#
main72045-0E010-C0i202306
BLACK,TRIM1#,2#,4#
72053ELEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH
main72053-0E030-C0i202306
BLACK,TRIM1#,2#
main72053-0E030-C0i202306
BLACK,TRIM1#,2#,4#
72054CLEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH
main72054-0E030-C0i202306
BLACK,TRIM1#,2#
main72054-0E030-C0i202306
BLACK,TRIM1#,2#,4#
72597DBEZEL, RECLINING REMOTE CONTROL, RH
main72597-0E060i202306
72598CBEZEL, RECLINING REMOTE CONTROL, LH
main72598-0E060i202306
72615ACOVER, REAR SEATBACK LOCK STRIKER, RH
main72615-0E130-C0i202306
BLACK,TRIM1#,2#
main72615-0E130-C0i202306
BLACK,TRIM1#,2#,4#
72616ACOVER, REAR SEATBACK LOCK STRIKER, LH
main72615-0E130-C0i202306
BLACK,TRIM1#,2#
main72615-0E130-C0i202306
BLACK,TRIM1#,2#,4#
72619COVER, REAR SEATBACK LOCK STRIKER
main72615-0E300-C0i202306
BLACK,TRIM1#,2#
main72615-0E300-C0i202306
BLACK,TRIM1#,2#,4#
79155PLATE, NO.1 SEATBACK
main79155-0E010i202306
87510YHEATER ASSY, REAR NO.1 SEAT CUSHION, LH
main87510-0E570i202306
87510ZHEATER ASSY, REAR NO.1 SEAT CUSHION, RH
main87510-0E560i202306
87530HEATER ASSY, REAR NO.1 SEATBACK, LH
main87530-0E360i202306
87530AHEATER ASSY, REAR NO.1 SEATBACK, RH
main87530-0E360i202306
9008416010
main90084-16010¥60
9046710167
main90467-10167¥90

30 parts on this diagram · 8 diagrams in section
