Toyota GRAND HIGHLANDER — REAR COMBINATION LAMP

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iAASH1#,TASA1#,TASH15¥100202306

81496BGUIDE, REAR LAMP

main81496-0E020iAASH1#,TASA1#,TASH15202306

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-0E020iAASH1#,TASA1#,TASH15202306

81497COVER, REAR COMBINATION LAMP, RH

main81497-0E090iAASH1#,TASA1#,TASH15202306

81498COVER, REAR COMBINATION LAMP, LH

main81498-0E090iAASH1#,TASA1#,TASH15202306

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0E340iAASH1#,TASA1#,TASH15202306-202412

MARK=R340

main81550-0E341iAASH1#,TASA1#,TASH15202412

MARK=R341

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0E340iAASH1#,TASA1#,TASH15202306-202412

MARK=L340

main81560-0E341iAASH1#,TASA1#,TASH15202412

MARK=L341

81580DLAMP ASSY, REAR, RH

main81580-0E270iAASH1#,TASA1#,TASH15202306-202412

MARK=R270

main81580-0E271iAASH1#,TASA1#,TASH15202412

MARK=R271

81590ALAMP ASSY, REAR, LH

main81590-0E270iAASH1#,TASA1#,TASH15202306-202412

MARK=L270

main81590-0E271iAASH1#,TASA1#,TASH15202412

MARK=L271

9015960621

main90159-60621¥60

90178A0092

main90178-A0092¥60

9018906242

main90189-06242¥70

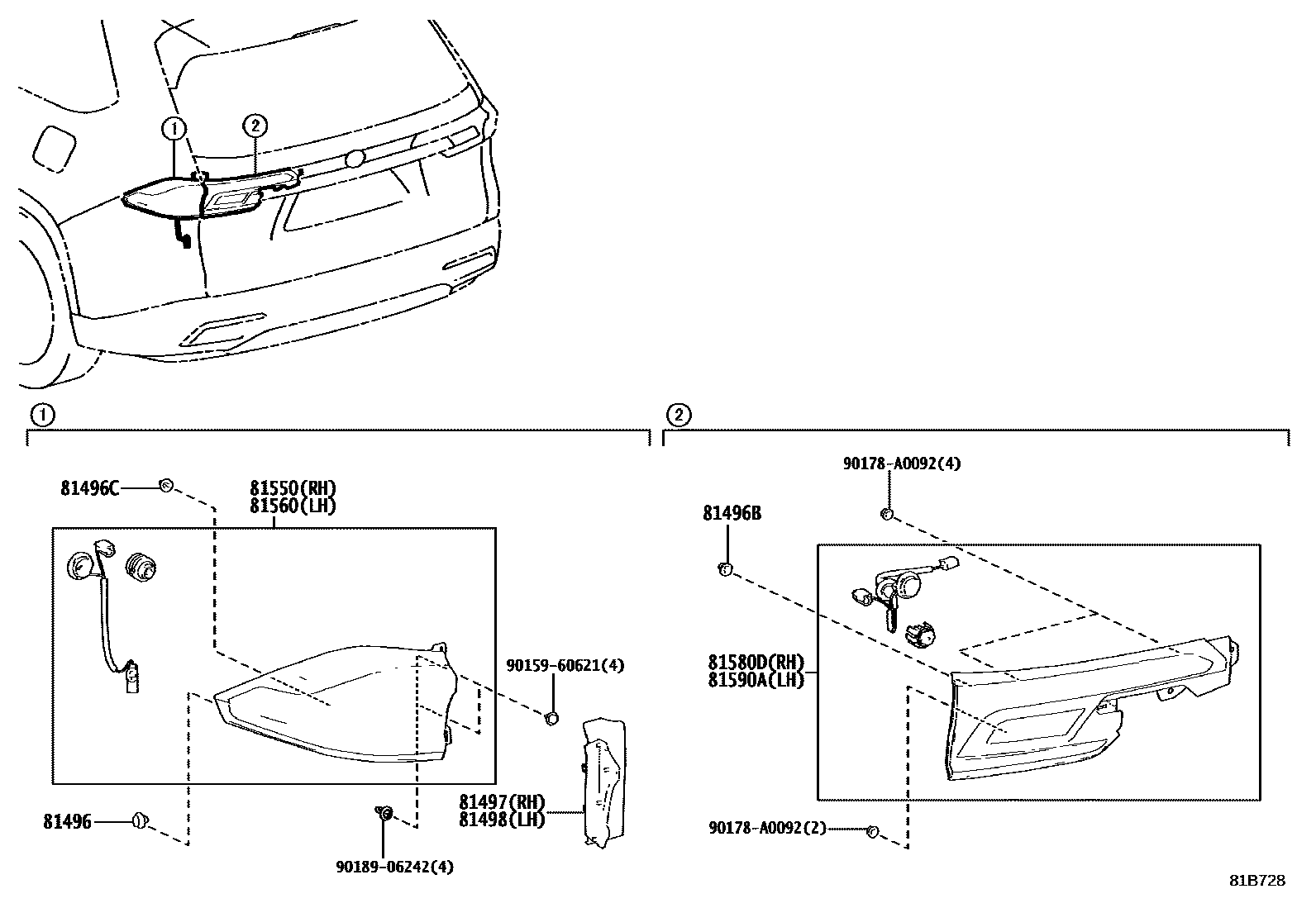

12 parts on this diagram · 1 diagram in section
