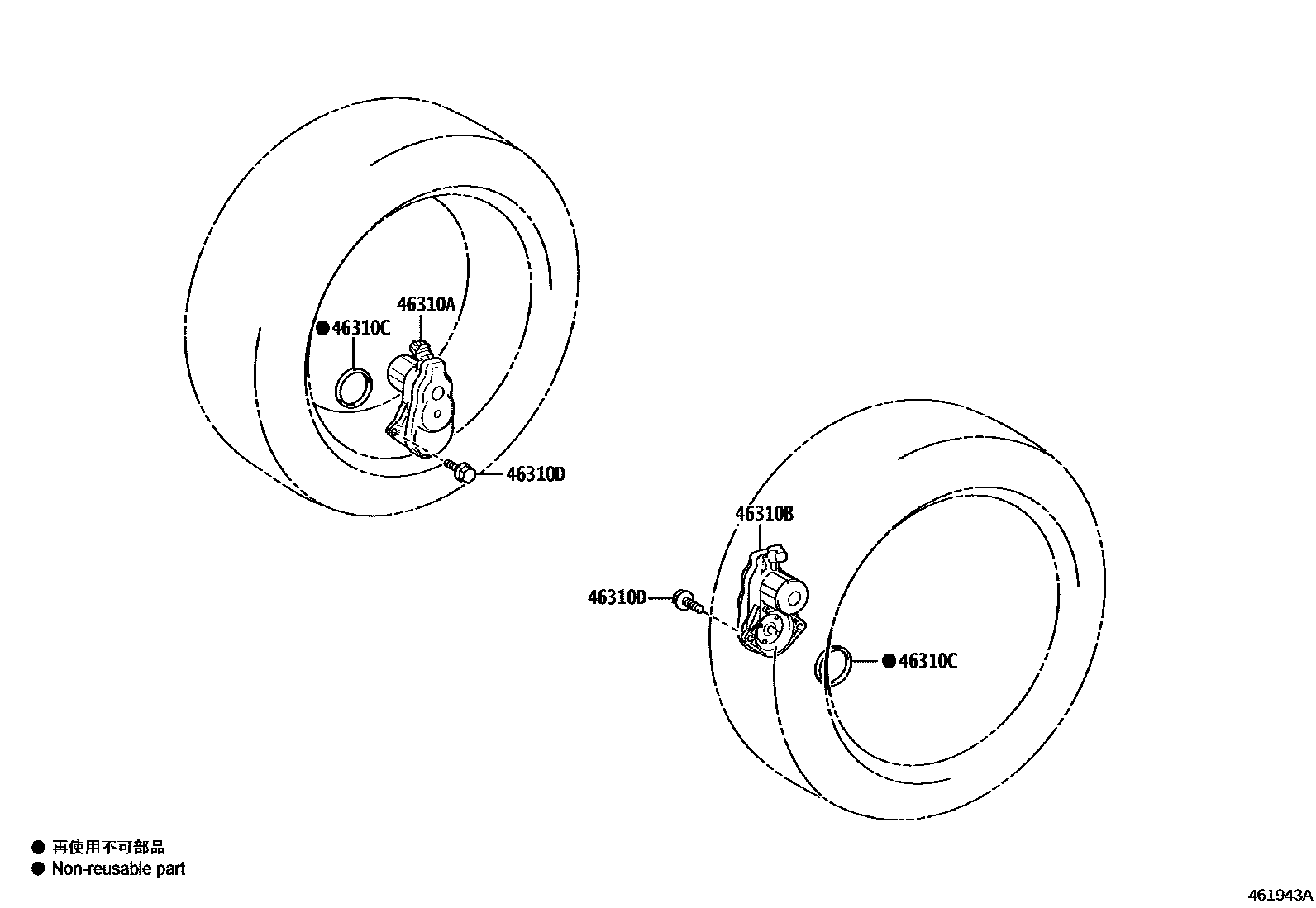

Toyota GRAND HIGHLANDER — PARKING BRAKE & CABLE

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-0A010iAASH1#,TASA1#,TASH15202409

MARK 46310-0A010

main46310-33010iAASH1#,TASA1#,TASH15¥14,400202306

MARK 46310-33010

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-0A010iAASH1#,TASA1#,TASH15202409

MARK 46310-0A010

main46310-33010iAASH1#,TASA1#,TASH15¥14,400202306

MARK 46310-33010

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005iAASH1#,TASA1#,TASH15¥130202306

46310DBOLT(FOR PARKING BRAKE ACTUATOR)

main90015-AA702iAASH15,TASA15,TASH15¥270202306-202409

sub90016-AA703¥270

main90016-AA703iAASH1#,TASA1#,TASH15¥270202409

4 parts on this diagram · 1 diagram in section
