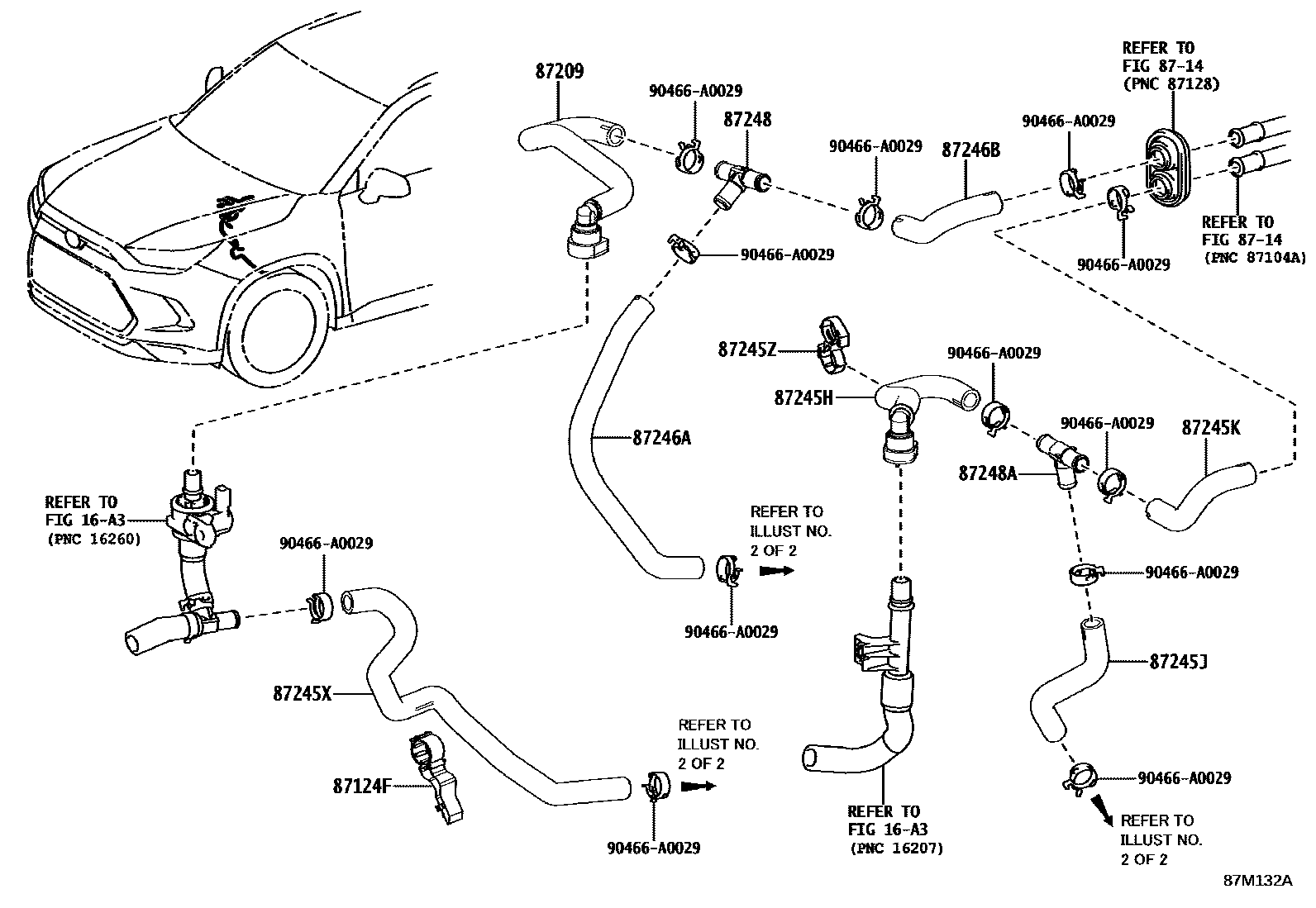

Toyota GRAND HIGHLANDER — HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1REAR 0005 1REAR 0006 1REAR

87124CLAMP, HEATER

main16581-F0390iTASH15202306

main88718-0ED70iTASA1#202306

87124FCLAMP, HEATER HOSE, NO.1

main16581-0P130iAASH1#202306

main16581-36140iTASA1#,TASH15¥680202306

8714

87209HOSE SUB-ASSY, WATER

main87209-0E650iAASH1#202306

main87209-0E830iTASH15202306

87245HHOSE, HEATER WATER, INLET H

main87209-0E640iAASH1#202306

main87245-0EE00iTASH15202306

87245JHOSE, HEATER WATER, INLET J

main87245-0E520iAASH1#202306

main87245-0EE10iTASH15202306

87245KHOSE, HEATER WATER, INLET K

main87245-0EB90iAASH1#202306

main87245-0EE20iTASH15202306

87245XHOSE, HEATER WATER

main87245-0E490iAASH1#202306

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main16581-70060iAASH1#¥500202306

main16581-77030iTASH15¥450202306

87246AHOSE, HEATER WATER, OUTLET A

main87245-0E540iAASH1#202306

87246BHOSE, HEATER WATER, OUTLET B

main87245-0EC00iAASH1#202306

87248PIPE SUB-ASSY, WATER

main87248-0E170iAASH1#202306

87248APIPE, HEATER WATER INLET, A

main87248-0E170iAASH1#202306

main87248-0E350iTASA1#,TASH15202306

90466A0029

main90466-A0029

14 parts on this diagram · 6 diagrams in section
