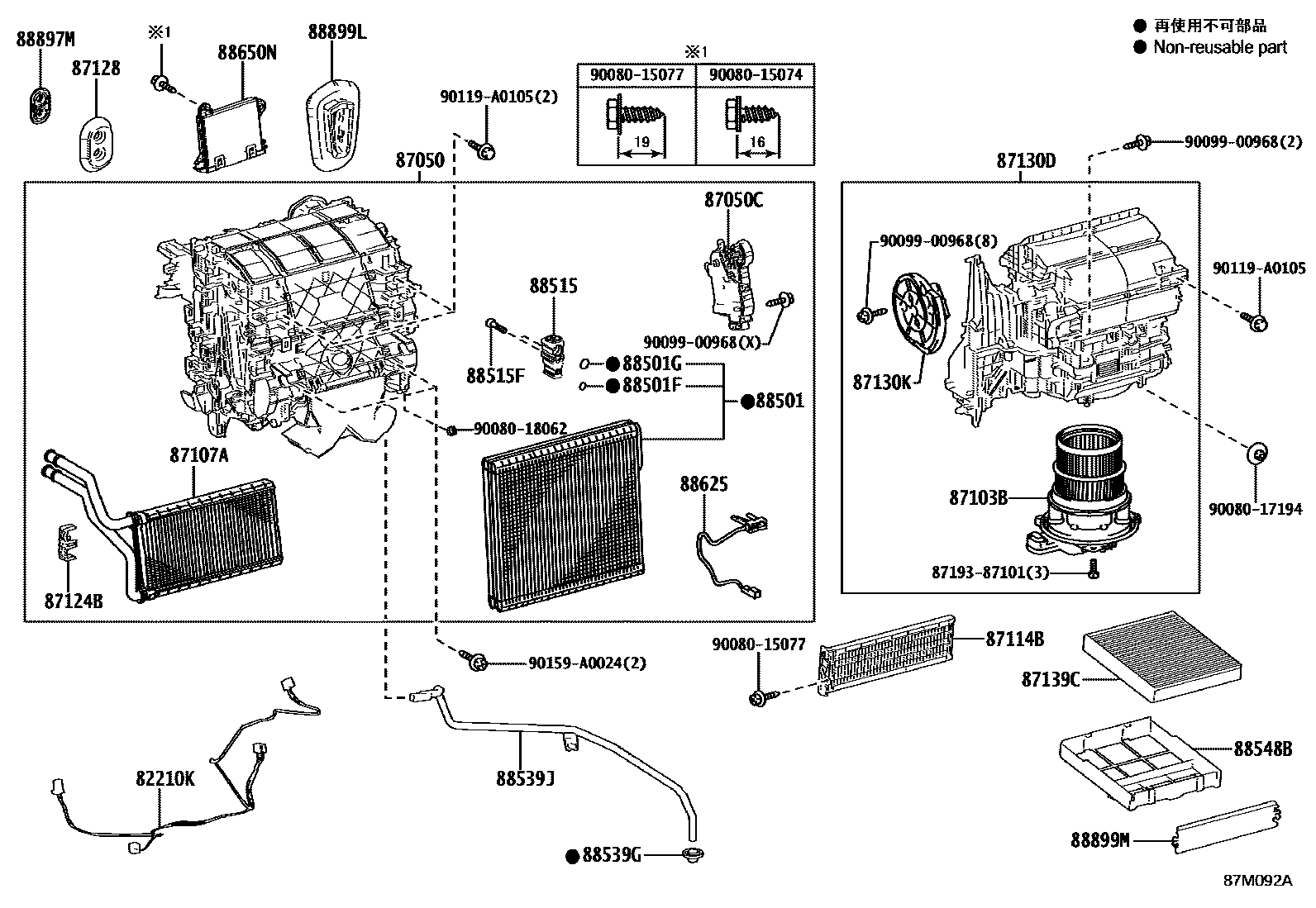

Toyota GRAND HIGHLANDER — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1REAR

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0R040iAASH1#,TASA1#,TASH15202306

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0E590iTASA1#202306

main87050-0E600iAASH1#,TASH15202306

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-06420iAASH1#,TASA1#,TASH15202306

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0E090iAASH1#,TASA1#,TASH15202306-202412

main87103-0E150iAASH1#,TASA1#,TASH15202412

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-06100iAASH1#,TASA1#,TASH15202306

87114BCOVER, HEATER

main87114-06090iAASH1#,TASA1#,TASH15202306

87124BCLAMP, HEATER

main87124-07030iAASH1#,TASA1#,TASH15202306

87128GROMMET, HEATER

main87128-06010iAASH1#,TASA1#,TASH15202306

87130DBLOWER ASSY

main87130-06410iAASH1#,TASA1#,TASH15202306-202412

main87130-06411iAASH1#,TASA1#,TASH15202412

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-0E130iAASH1#,TASA1#,TASH15202306

(L)

main87106-58050iAASH1#,TASA1#,TASH15202306-202412

(J)

87139CFILTER, CLEAN AIR

main87139-0R030iAASH1#,TASA1#,TASH15202306

POLLEN FILTER

main87139-58010iAASH1#,TASA1#,TASH15¥4,000202306

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0E190iAASH1#,TASH15202306

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90069-08007iTASA1#¥350202306-202412

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90069-08009iTASA1#¥350202306-202412

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-0E160iAASH1#,TASA1#,TASH15202306

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542iAASH1#,TASA1#,TASH15¥120202306

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-06020iAASH1#,TASA1#,TASH15202306

88539JHOSE, DRAIN COOLER

main88539-0E190iAASH1#,TASA1#,TASH15202306

88548BCASE, AIR FILTER

main88899-0R010iAASH1#,TASA1#,TASH15202306

88625THERMISTOR, COOLER, NO.1

main88620-0E050iAASH1#,TASH15202306

main88620-0R010iTASA1#202306

88650NAMPLIFIER ASSY, AIR CONDITIONER

main886H0-0E051iAASH1#,TASA1#,TASH15..G,V,Z202306

main886H0-0E061iAASH1#,TASA1#..M,N202306

88897MGROMMET (FOR HEATER PIPE)

main87128-28010iAASH1#,TASA1#,TASH15¥400202306

88899LPARTS, COOLING UNIT

main88899-06280iAASH1#,TASA1#,TASH15202306

88899MPLATE, COVER(FOR AIR FILTER)

main88899-06310iAASH1#,TASA1#,TASH15202306

8719387101

main87193-87101¥0

9008015074

main90080-15074¥60

9008015077

main90080-15077¥60

9008017194

main90080-17194

9008018062

main90080-18062

9009900968

main90099-00968

90119A0105

main90119-A0105

90159A0024

main90159-A0024

32 parts on this diagram · 2 diagrams in section
