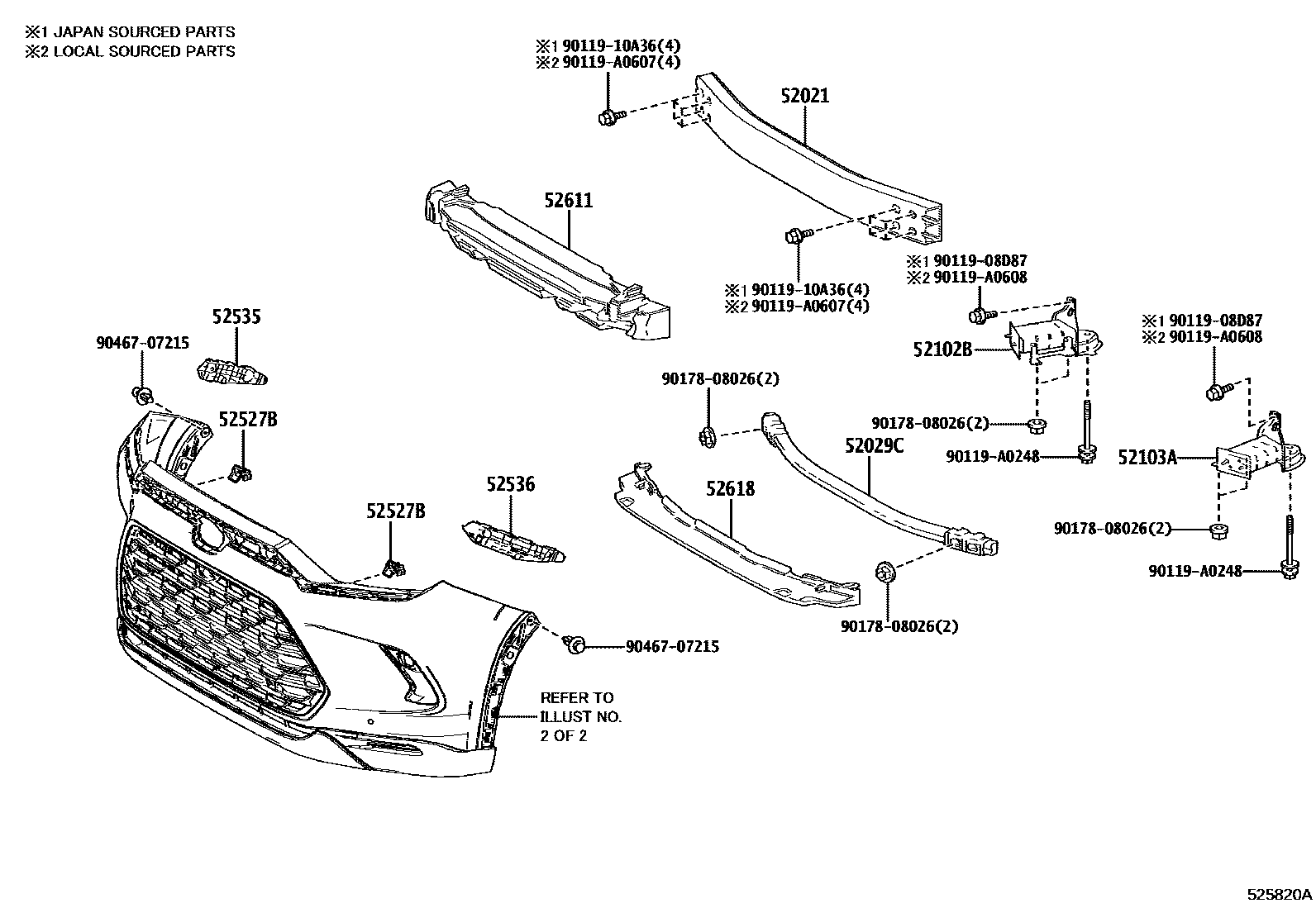

Toyota GRAND HIGHLANDER — FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0E170iAASH1#,TASA1#,TASH15202306-202508

52029CREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2

main52029-0E010iAASH1#,TASA1#,TASH15¥18,200202306

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-0E090iAASH1#,TASA1#,TASH15¥9,700202306

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-0E040iAASH1#,TASA1#,TASH15¥9,700202306

52527BRETAINER, FRONT BUMPER, LOWER NO.2

main52527-02020iAASH1#,TASA1#,TASH15¥670202306

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0E080iAASH1#,TASA1#,TASH15202306

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0E040iAASH1#,TASA1#,TASH15202306

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0E200iAASH1#,TASA1#,TASH15202306

52618ABSORBER, FRONT BUMPER, LOWER

main52618-0E130iAASH1#,TASA1#,TASH15202306

9011908D87

main90119-08D87¥100

9011910A36

main90119-10A36¥120

90119A0248

main90119-A0248

90119A0607

main90119-A0607

90119A0608

main90119-A0608

9017808026

main90178-08026¥90

9046707215

main90467-07215¥80

16 parts on this diagram · 2 diagrams in section
