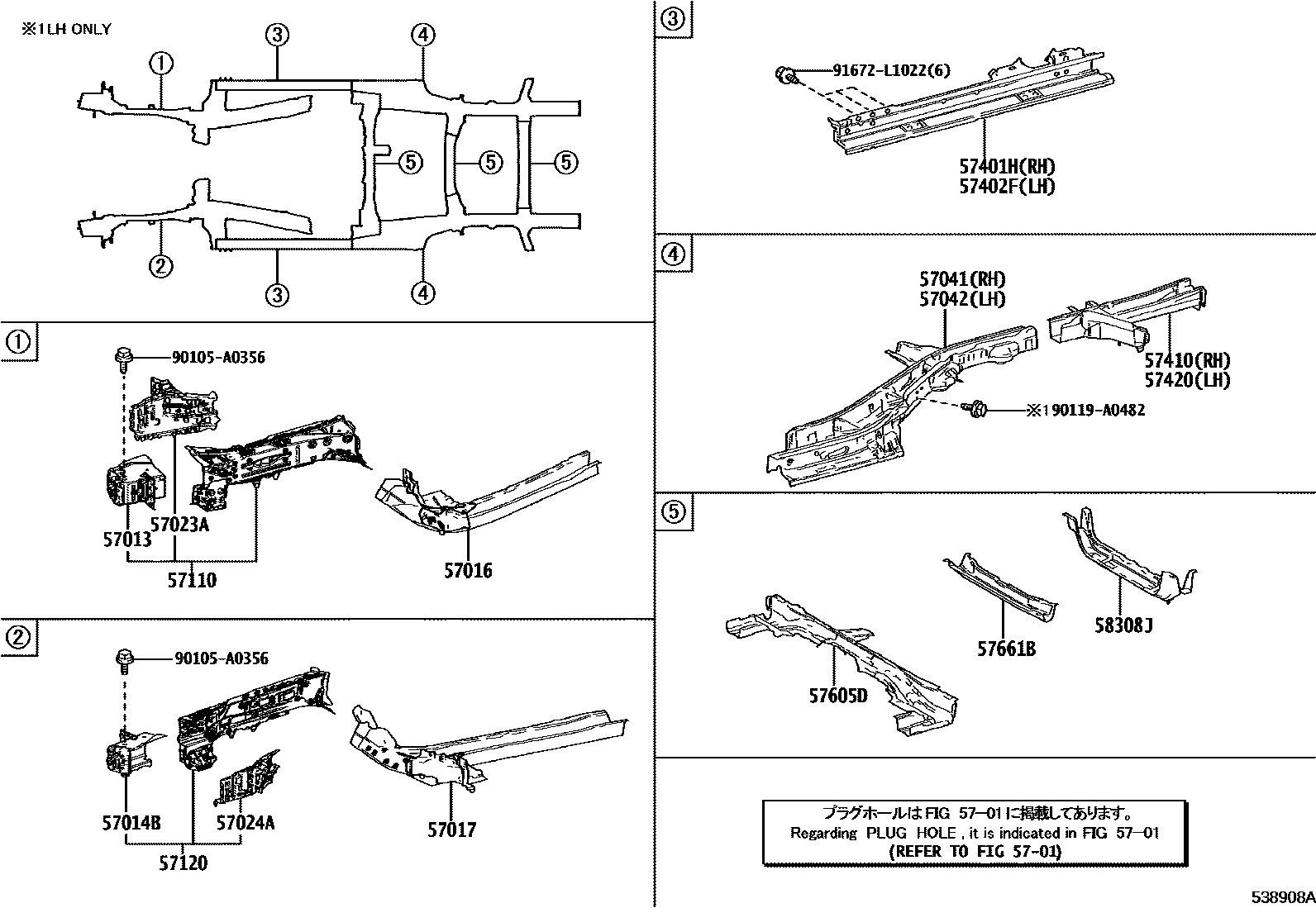

Toyota GRAND HIGHLANDER — FLOOR SIDE MEMBER

0001 1 0002 1

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0E040iAASH1#,TASA1#,TASH15¥7,200202306

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0E040iAASH1#,TASA1#,TASH15¥7,200202306

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0E090iAASH1#,TASA1#,TASH15¥26,400202306

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0E090iAASH1#,TASA1#,TASH15202306

57023AMEMBER SUB-ASSY, REAR SIDE, RH

main57023-0E040iAASH1#,TASA1#,TASH15¥8,400202306

57024AMEMBER SUB-ASSY, REAR SIDE, LH

main57024-0E040iAASH1#,TASA1#,TASH15¥8,400202306

57041MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH

main57041-0E170iAASH1#,TASA1#,TASH15202306

57042MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH

main57042-0E170iAASH1#,TASA1#,TASH15202306

57110MEMBER ASSY, FRONT SIDE, RH

main57110-0E050iAASH1#,TASA1#,TASH15202306

57120MEMBER ASSY, FRONT SIDE, LH

main57120-0E050iAASH1#,TASA1#,TASH15202306

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0E150iAASH1#,TASA1#,TASH15202306-202507

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0E150iAASH1#,TASA1#,TASH15202306-202507

57410MEMBER ASSY, FLOOR SIDE, RH

main57410-0E021iAASH1#,TASA1#,TASH15¥0202306

57420MEMBER ASSY, FLOOR SIDE, LH

main57420-0E021iAASH1#,TASA1#,TASH15¥0202306

57605DMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0E200iTASA1#202306

main57605-0E210iAASH1#,TASH15202306

57661BMEMBER, REAR FLOOR CROSS, FRONT

main57661-0E070iAASH1#,TASA1#,TASH15202306

58308JBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER

main58308-0E070iAASH1#,TASA1#,TASH15202306

90105A0356

main90105-A0356

90119A0482

main90119-A0482

91672L1022

main91672-L1022¥100

21 parts on this diagram · 2 diagrams in section
